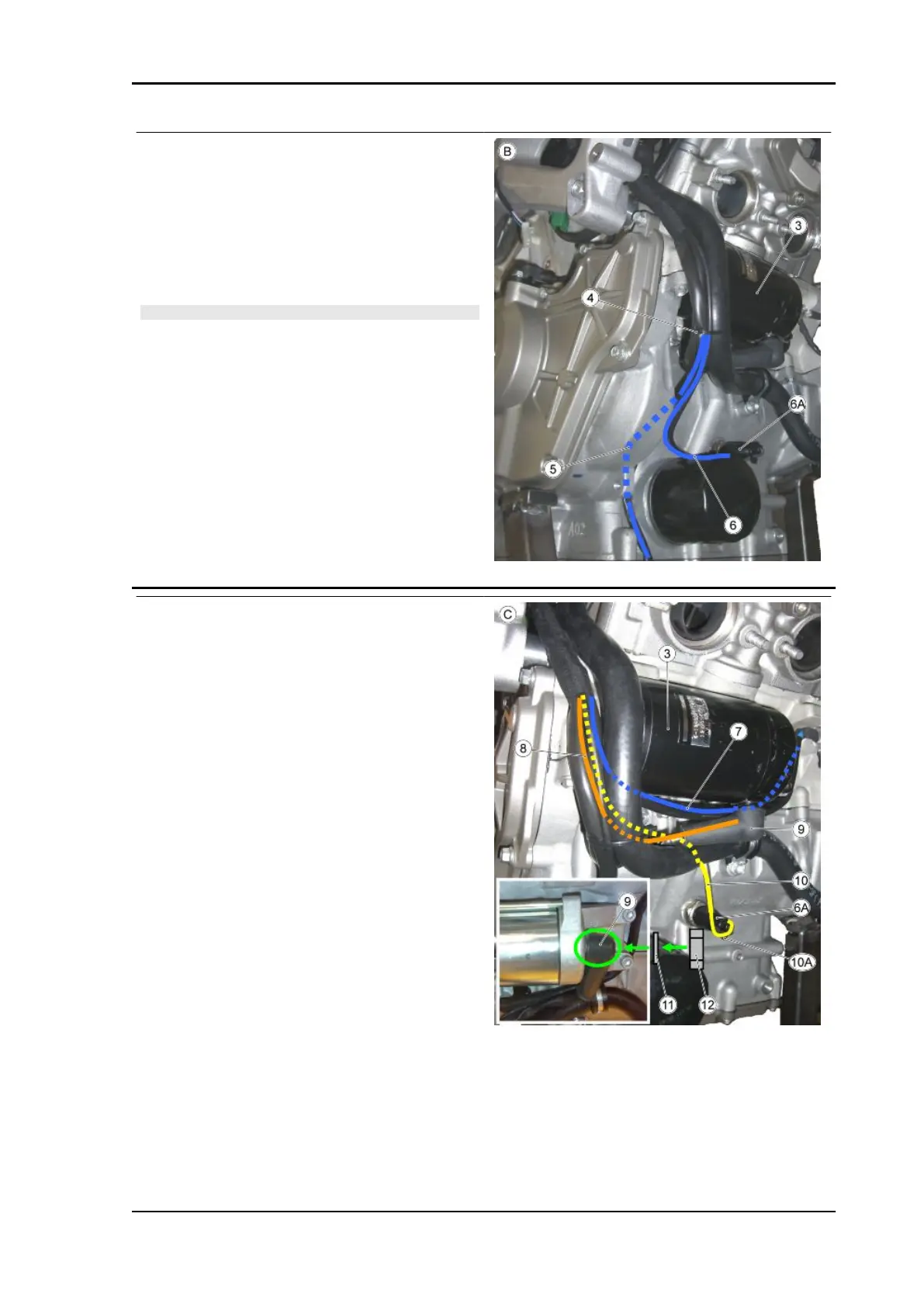

TABLE B - RADIATOR AREA
3. Starter motor
4. Clamp
5. Exhaust valve actuator cable harness routing
6. Oil pressure sensor cable harness routing
6A. Oil pressure sensor.
CAUTION
THE FEMALE FASTON OF OIL PRESSURE SENSOR FEA-
TURES A RETAINING TANG. USE A SMALL SCREWDRIV-
ER TO RELEASE TANG AND DISCONNECT THE FASTON
TABLE C - RADIATOR AREA
7. Ground cable harness routing (behind water
pipe and behind the starter motor)
8. Starter motor cable harness routing (behind wa-
ter pipe)
9. Starter motor eyelet
Cover motor nut and square terminal with wa-
terproof dielectric grease. Quantity: 0.5 g (0.18
oz)
10. Oil pressure sensor cable harness routing (be-
hind water pipe)
10A. Clamp
11. Washer
12. M6 Nut
RSV4 Factory a-PRC Electrical system
ELE SYS - 113
