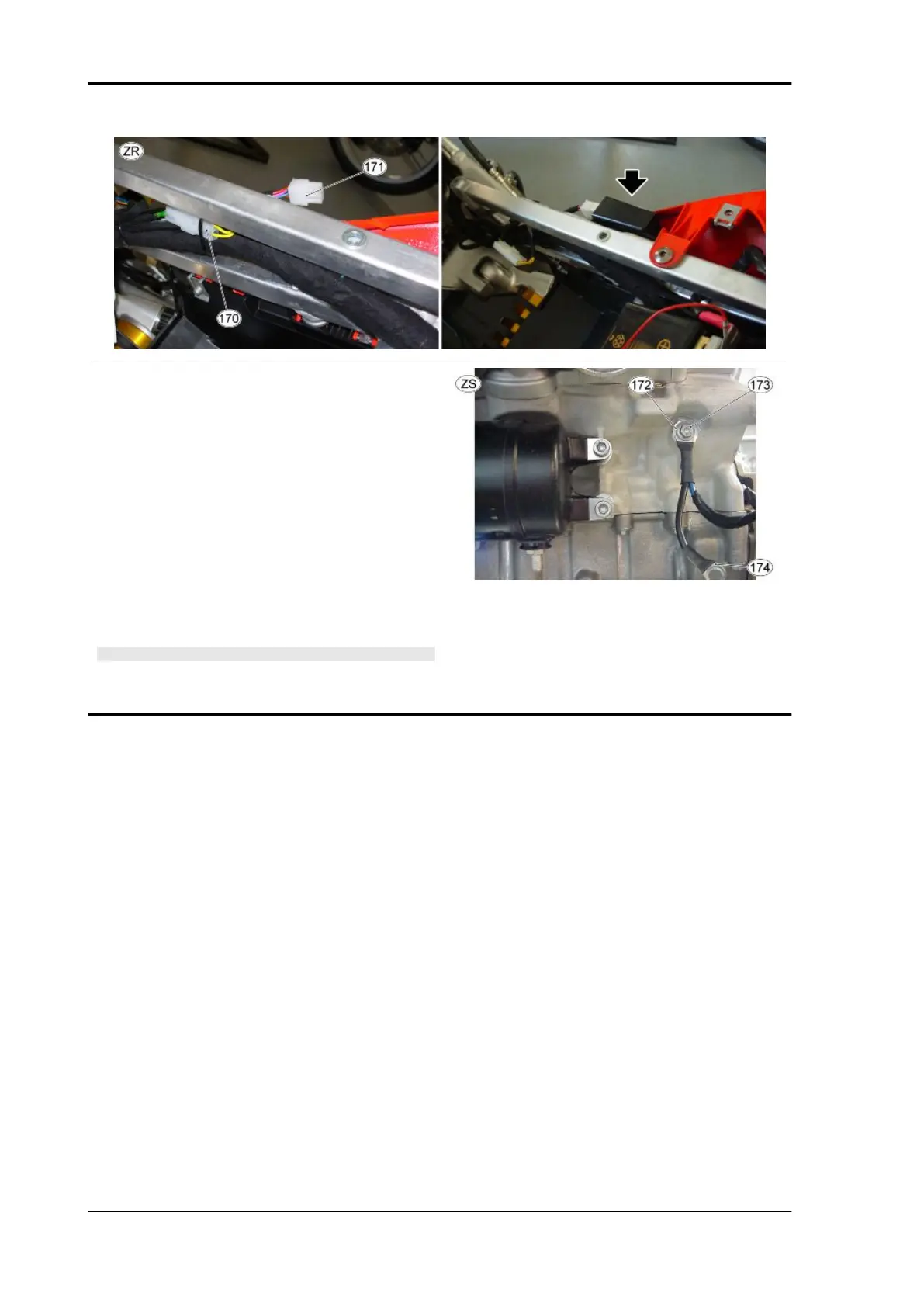

TABLE ZS - NOTES FOR FITTING THE
GROUND CABLE
There are two ground lug terminals on the cable
harness: the "ENGINE GND" (output "9") and the
"CHASSIS GND" (output "10").
The "ENGINE GND" lug terminal (172) (output "9")
must be connected to the M6 hole on the upper
engine crankcase with a flanged M6x16 screw
(173). The other "CHASSIS GND" lug terminal
(174) (output "10") must be left free.
CAUTION
TAKE CARE NOT TO SWAP THE TWO GROUND LUG TER-
MINALS
Back side
TABLE A - LICENSE PLATE FRAME PRE-FITTING
Check that the drainage hole (7) for the water of both turn indicators is positioned downward.
1. License plate frame cable harness
2. Right rear turn indicator cable harness routing
3. 2.8 mm (0.11 in) Faston - cable colours: red and blue
4. License plate light grey rubber ring
5. 2.8 mm (0.11 in) Faston - cable colours: light blue and blue
6. Left rear turn indicator cable harness routing
7. Breather
Electrical system RSV4 Factory a-PRC
ELE SYS - 132
