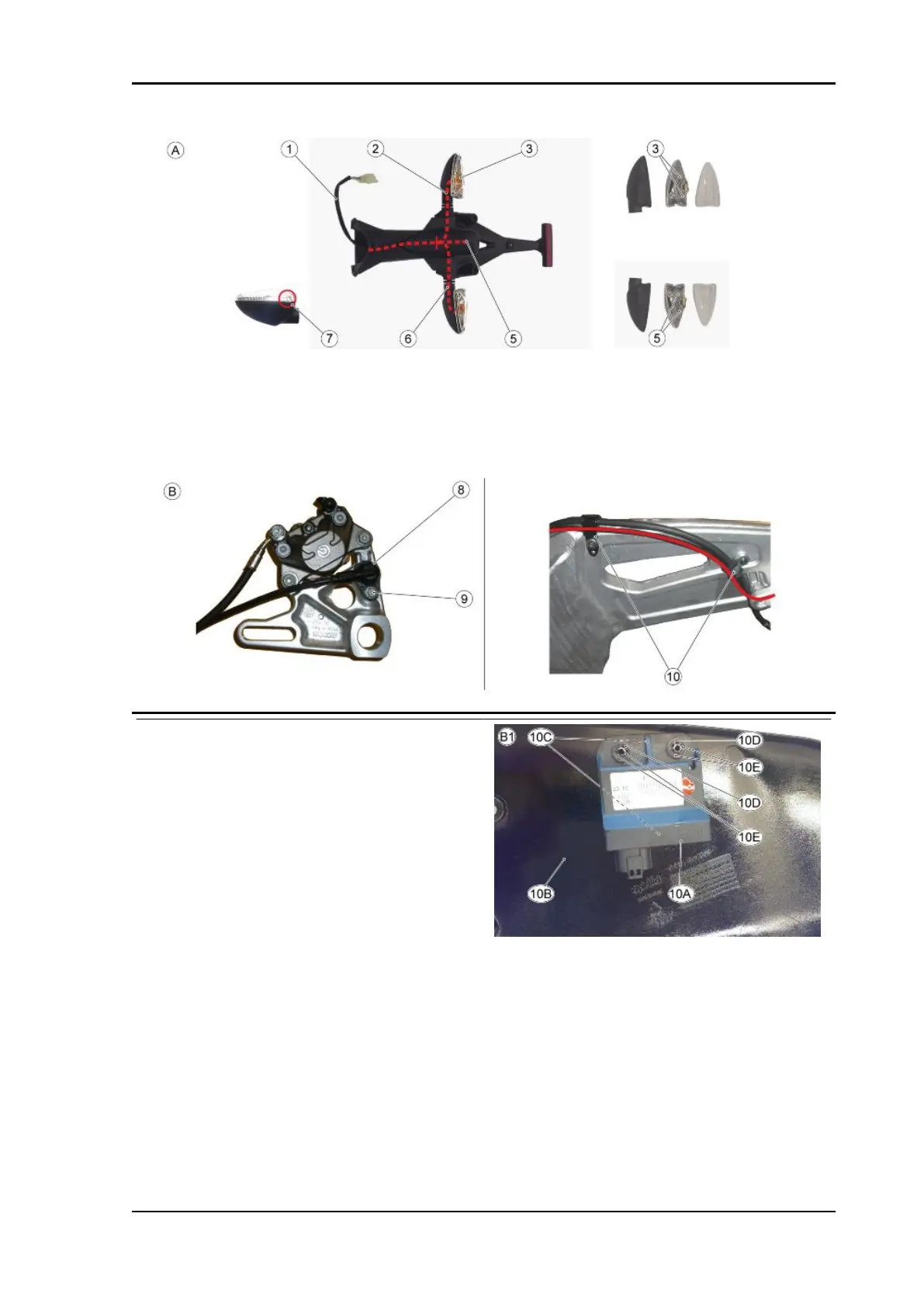

TABLE B - SPEED SENSOR PRE-FITTING
8. Speed sensor
9. TE M6x20 screw
10. Sensor cable harness routing in the cable grommet
TABLE B1 - CLF CONTROL UNIT PRE-FITTING
10A. CLF control unit
10B. Left fairing
10C. Sponge
10D. Washer
10E. Rubber ring
TABLE C - START-UP RELAY PRE-FITTING
11. Starter motor cable on the vehicle cable harness
12. Positive battery cable
13. Start-up relay
14. Positive battery cable
15. M5x8 screw
The positive battery cable (14) must be connected with a screw (15) on the hole marked with the letter
B (battery).
M=starter motor
RSV4 Factory a-PRC Electrical system
ELE SYS - 133
