B=battery
Be careful not to bend the positive battery cable (14).

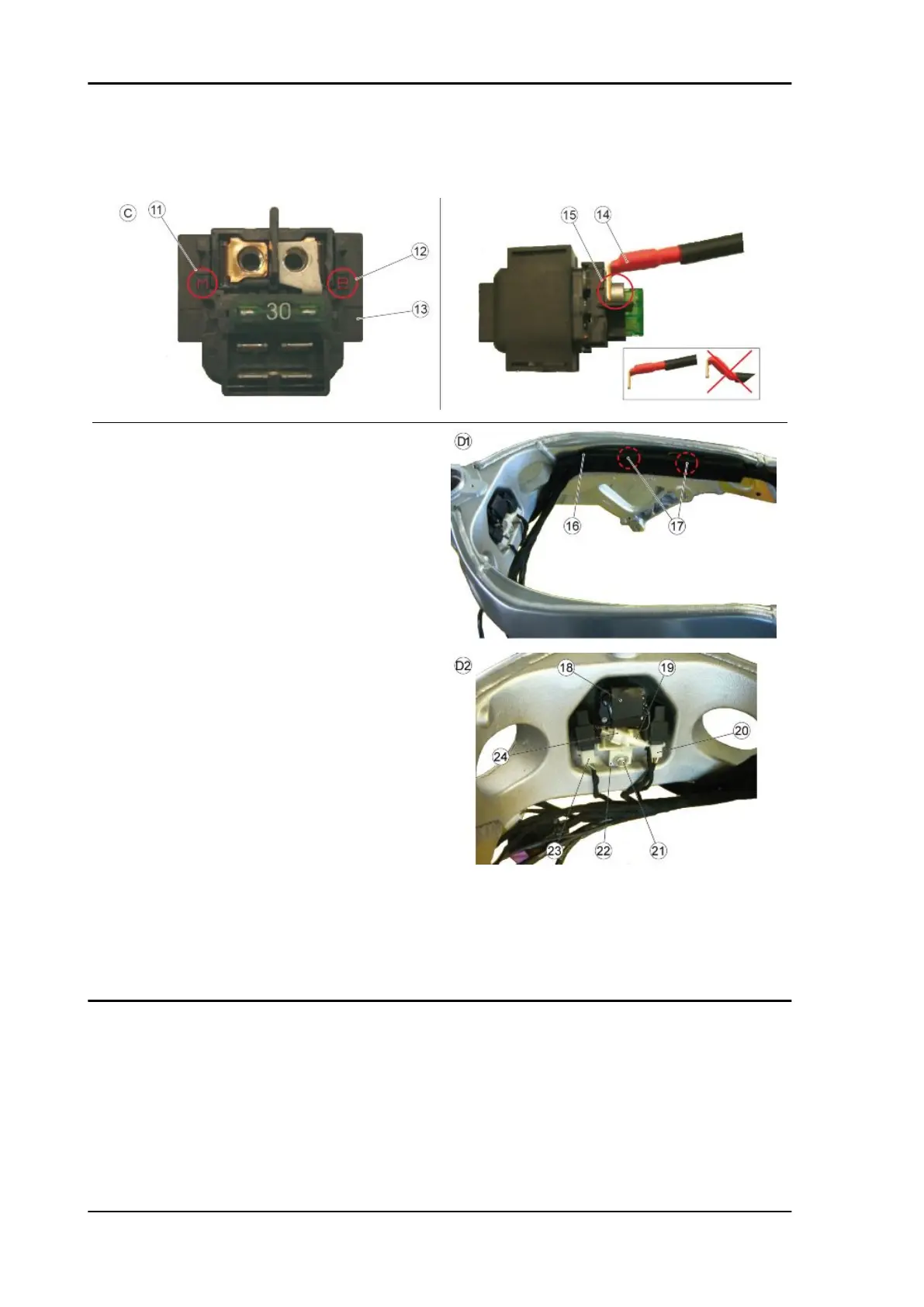

TABLES D1 and D2 - VEHICLE CABLE HAR-
NESSES
The Vehicle Cable Harness (16) and the "Relay
and Fall Sensor" mounting (18) must be fit on the
chassis before fitting the engine.
Check that the fan relay (20), safety relay (23) and
fall sensor (19) are connected correctly (fit on the
relative mounting).
16. Vehicle cable harness
17. Insert two tape clamps on the rigid section of
the cable harness in the two holes on the right
chassis beam
18. Fall sensor and relay mounting
19. Fall sensor connector
20. Fan relay connector
21. TE M6x20 screw
22. T-shaped bushing
23. Safety relay connector
24. Fasten the fall sensor connector on the mount-
ing link
Electrical system RSV4 Factory a-PRC
ELE SYS - 134
