Outer
58. Fuel pump connector
59. Insert the tape clamp on the cable harness in the hole on the right side of the saddle mounting
60. variable length intake duct control unit connector
61. Clamp
Inner
62. Speed sensor connector
63. Rear brake switch connector

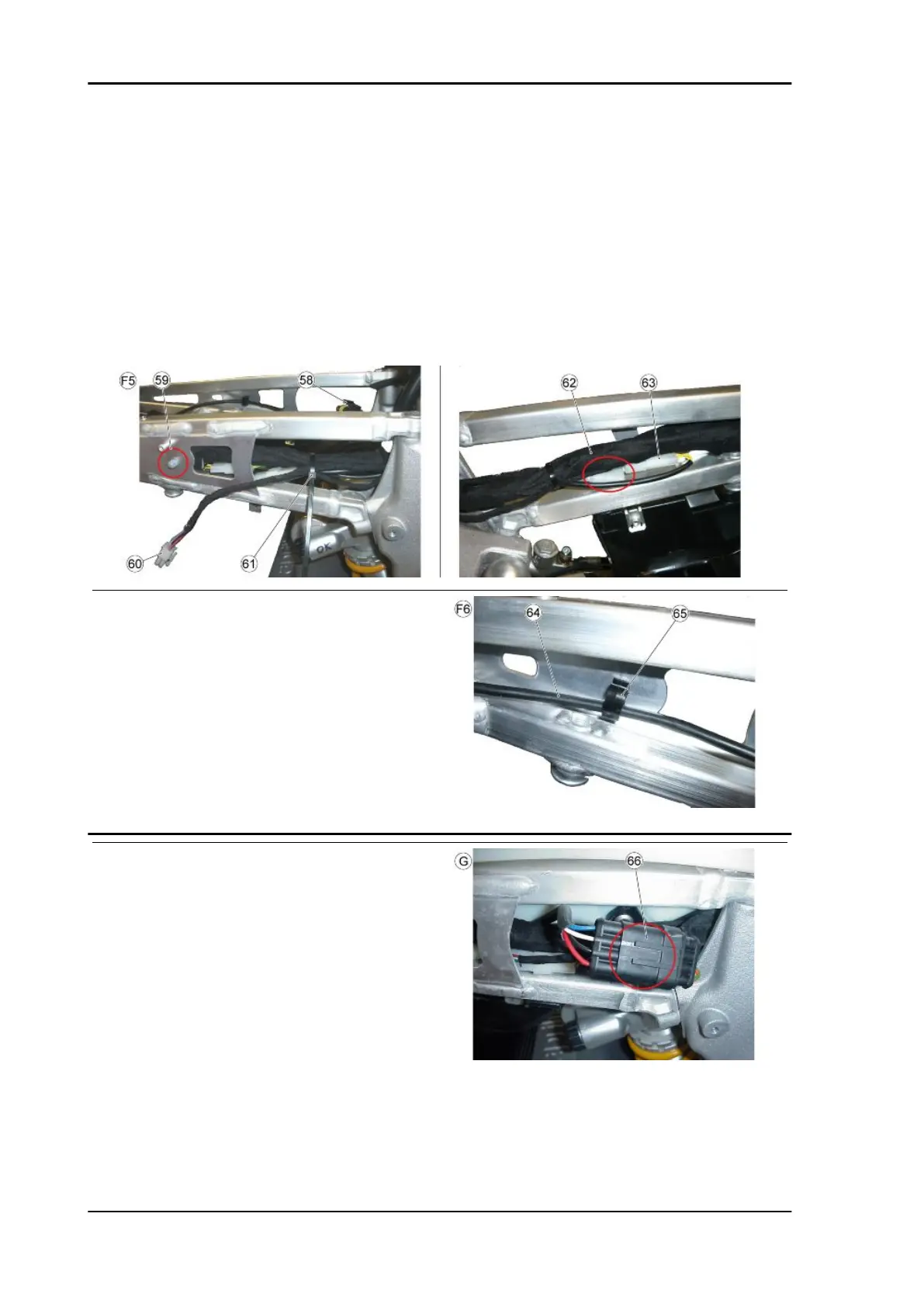

TABLE F6 - LEFT SIDE SADDLE MOUNTING
64. Battery - engine ground lead
65. Cable grommet
TABLE G - INTAKE DUCT CONTROL UNIT AND
TANK
After fitting the tank and connecting the fuel line
push fitting, the fuel pump connector (66) can be
connected and positioned as shown in the figure.
No clamps are necessary.
66. Fuel pump connector
Electrical system RSV4 Factory a-PRC
ELE SYS - 138
