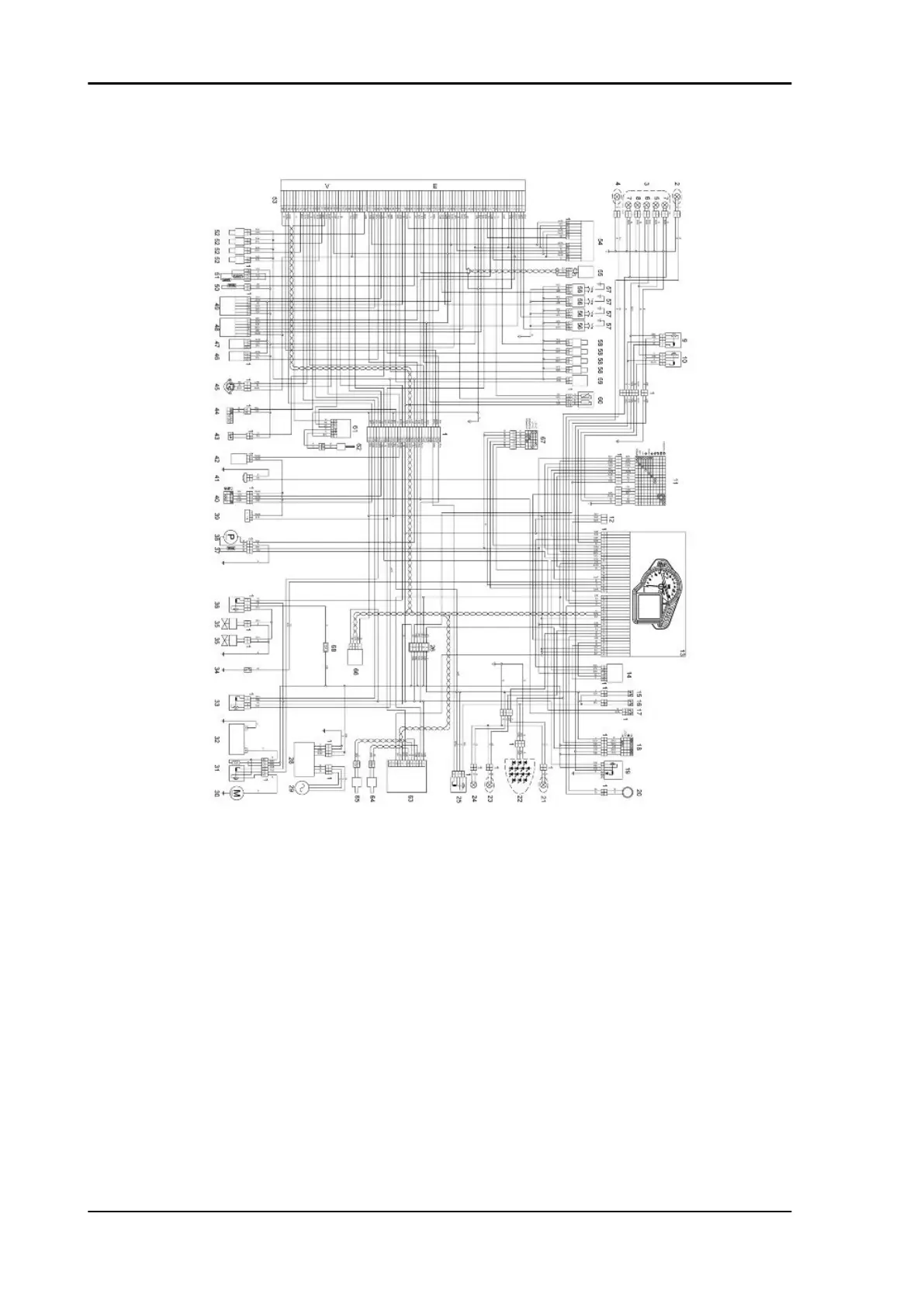

General wiring diagram
key:
1. MULTIPLE CONNECTORS
2. FRONT RIGHT TURN INDICATOR
3. COMPLETE HEADLAMP
4. FRONT LEFT TURN INDICATOR
5. RIGHT LOW BEAM LIGHT BULB
6. HIGH BEAM BULB
7. TAIL LIGHT BULB
8. LEFT LOW BEAM LIGHT BULB
9. HIGH BEAM LIGHT RELAY
10.LOW BEAM LIGHT RELAY
11.Left light switch
12.INSTRUMENT PANEL DIAGNOSIS
Electrical system RSV4 Factory a-PRC
ELE SYS - 140
