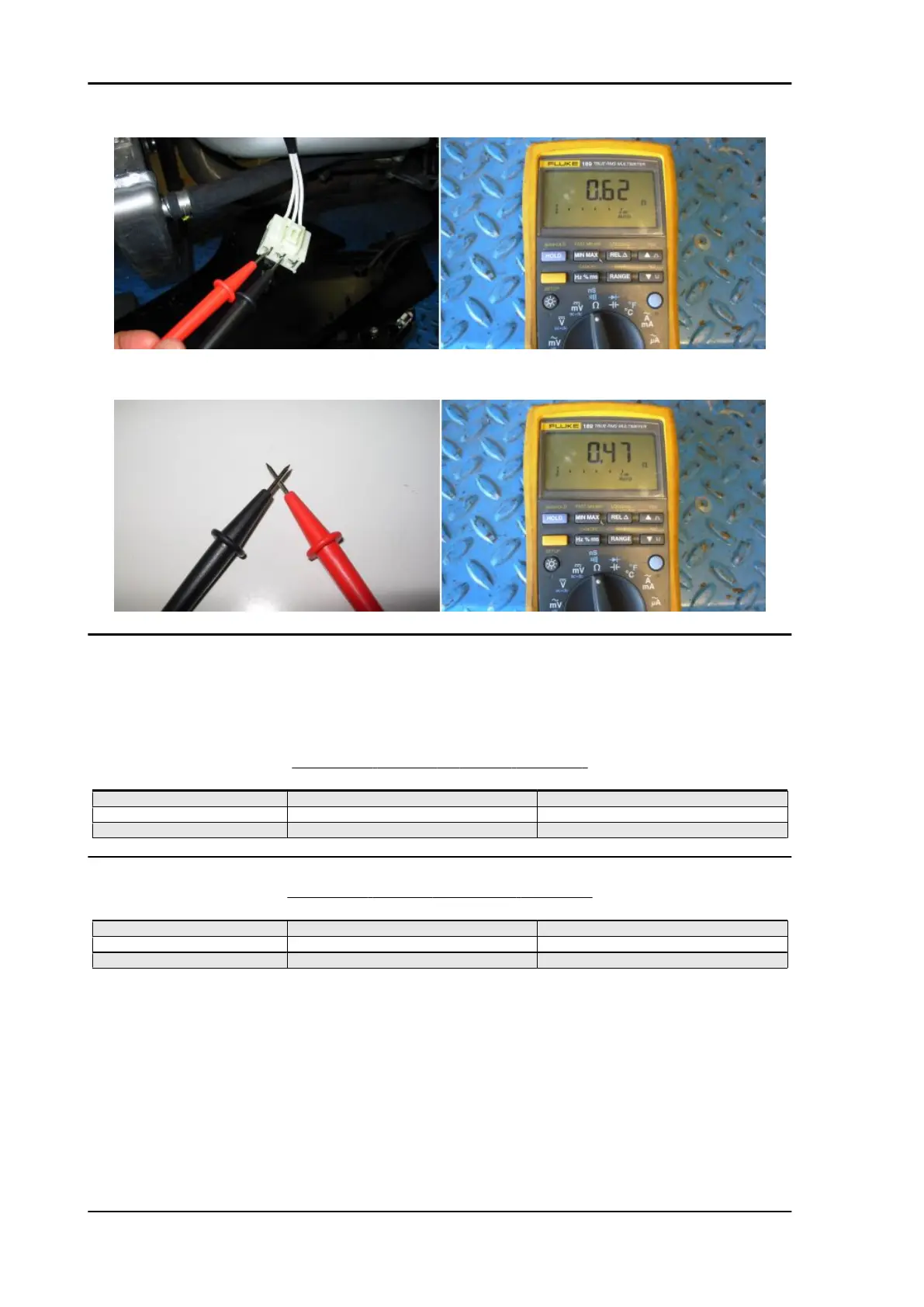

Resistance of the wires read on the display = 0.47 Ohm
•
Effective resistance stage 1 = 0.62-0.47 = 0.15 Ohm
•
If there is a significant difference between one stage and another (other than 0.15 Ohm),
this means that the alternator is defective and must be replaced.
RESISTANCE MEASURE (KOKUSAN FLYWHEEL)
Winding stage
Ambient temperature (ohm) Afterwards heat stabilisation (ohm)
Stage 1 0.15 - 0.20 0.25 - 0.30
Stage 2 0.15 - 0.20 0.25 - 0.30
Stage 3 0.15 - 0.20 0.25 - 0.30
RESISTANCE MEASURE (MITSUBISHI FLYWHEEL)
Winding stage
Ambient temperature (ohm) Afterwards heat stabilisation (ohm)
Stage 1 - 2 0.10 - 0.15 0.15 - 0.20
Stage 1 - 3 0.10 - 0.15 0.15 - 0.20
Stage 2 - 3 0.10 - 0.15 0.15 - 0.20
Empty voltage
•
Disconnect the three-way connector (1);
•
For a correct detection of the alternator voltage, a measurement must be carried out using
alternatively the 3 engine side connector pins: stage "1" (pin 1-2), stage "2" (pin 1-3), stage
"3" (pin 2-3).
•
Take the measurements;
Electrical system RSV4 Factory a-PRC
ELE SYS - 150
