If shorted to positive: excessive voltage has been detected at PIN 58; if the circuit is open,
shorted to negative: voltage equal to zero has been detected.
DIAGNOSTICS INSTRUMENT: LOGIC ERRORS
Starter switch P0169
•
signal not valid.
Error cause
•
Fault in the switch (lock) of the engine start-up. The instrument panel does not indicate the
presence of this error even in the ATT status.
Troubleshooting
•
Check the locking cause and restore.
level indicators
See also
Fuel pump
Fuses

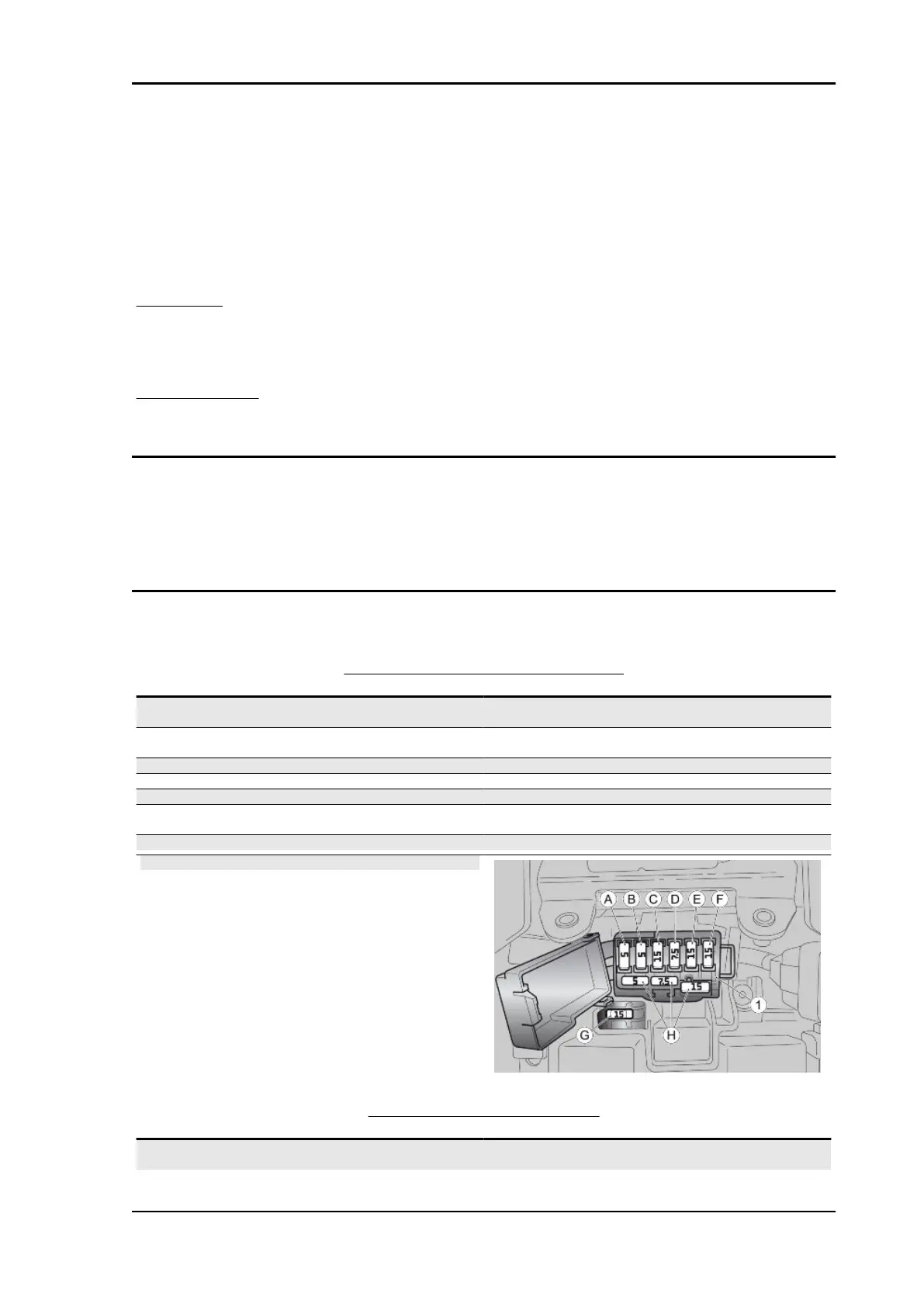

AUXILIARY FUSES DISTRIBUTION
Specification
Desc./Quantity
A) 5A fuse Lights relay, stop light, daylight running lights, variable geom-
etry intake ducts (factory)
B) 5A fuse Instrument panel, turn indicators, speed, instrument panel di-
agnosis, tone wheel ECU (a-PRC)
C) 15A fuse Control unit
D) 7.5A fuse Control unit
E) 15A fuse High beam/low beam, horn.
F) 15A fuse Coils, injectors, fuel pump, oxygen sensor and secondary air
valve
G) 15A fuse Fans.
CAUTION
THREE OF THE FUSES ARE SPARES (H).
MAIN FUSES DISTRIBUTION
Specification
Desc./Quantity
L) 30A fuse Battery recharge and vehicle current consumers, injection cur-
rent consumers (red and red/white cables).
RSV4 Factory a-PRC Electrical system
ELE SYS - 153
