CONTROL UNIT - Diagnosis
Function
it controls the Ride by wire system, the injection/
ignition, the system safety checks and the self-di-
agnosis function
Level in electrical circuit diagram:
Each level in which the main component involves
the control unit

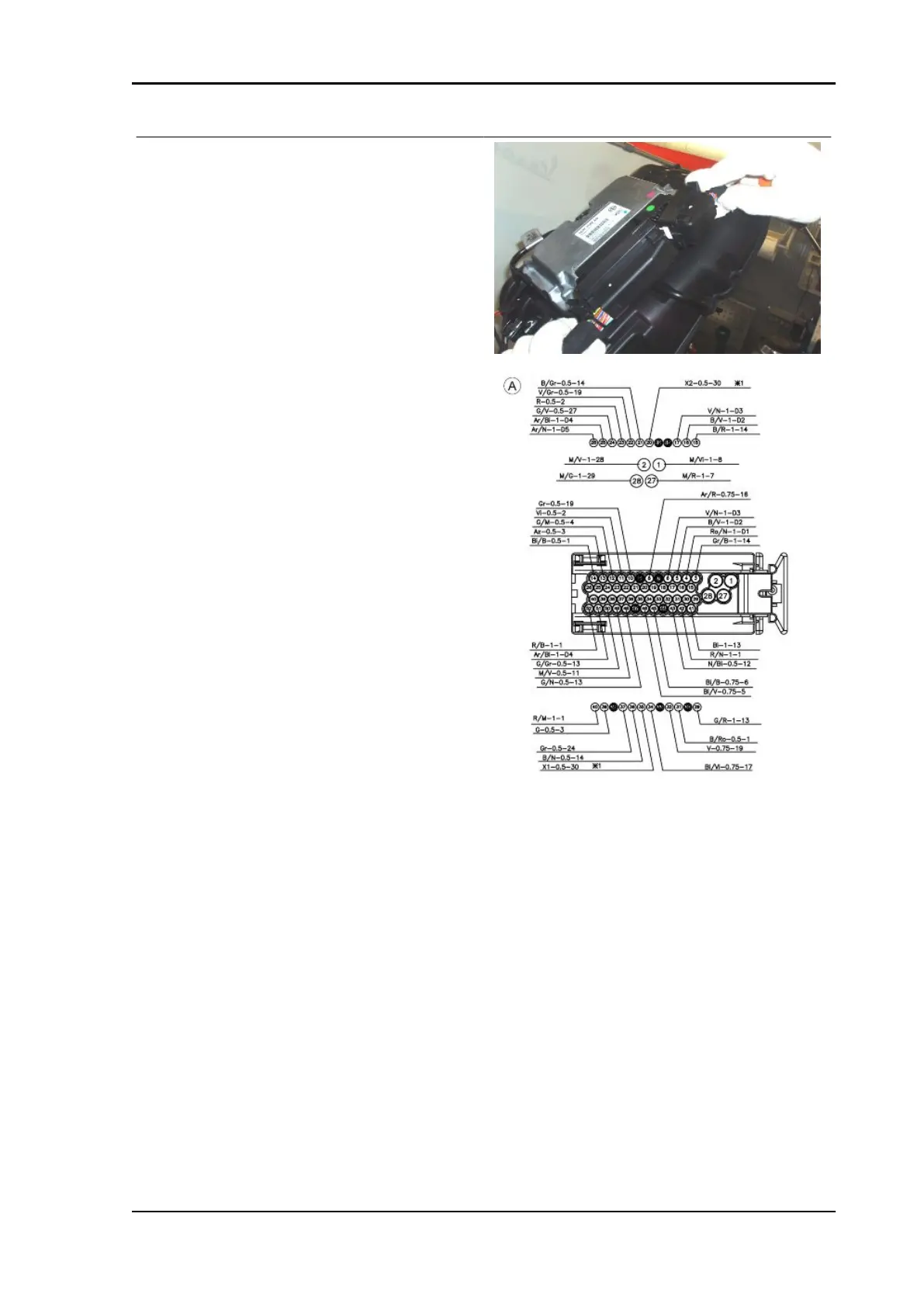

Location:
•
on the vehicle: above the filter box
•
connector: on connector control unit of
ENGINE PIN 52 (figure A), connector
of ENGINE PIN 28 (figure B)
Pin out:See the CONNECTORS section
DIAGNOSIS INSTRUMENT: PARAMETERS ISO
Screen page
(screen/example value with key set to ON)
•
Drawing number / -
•
Marelli spare part code /
IAW7SMHW430
•
Hardware number / 00
•
Mapping / -
•
Software version number / 0000
•
Type-approval Code / -
•
ISO Code / -
•
Marelli software code / -
•
Control unit series number (NIP) /
7SMPRA119 - Identifies the single
control unit
•
Person in charge for last program-
ming / - Indicates the series number of
the diagnosis instrument that has car-
ried out the last control unit remapping
DIAGNOSIS INSTRUMENT: PARAMETERS
Nominal idle speed
•
Example value with key ON: 1600 rpm
RSV4 Factory a-PRC Electrical system
ELE SYS - 155
