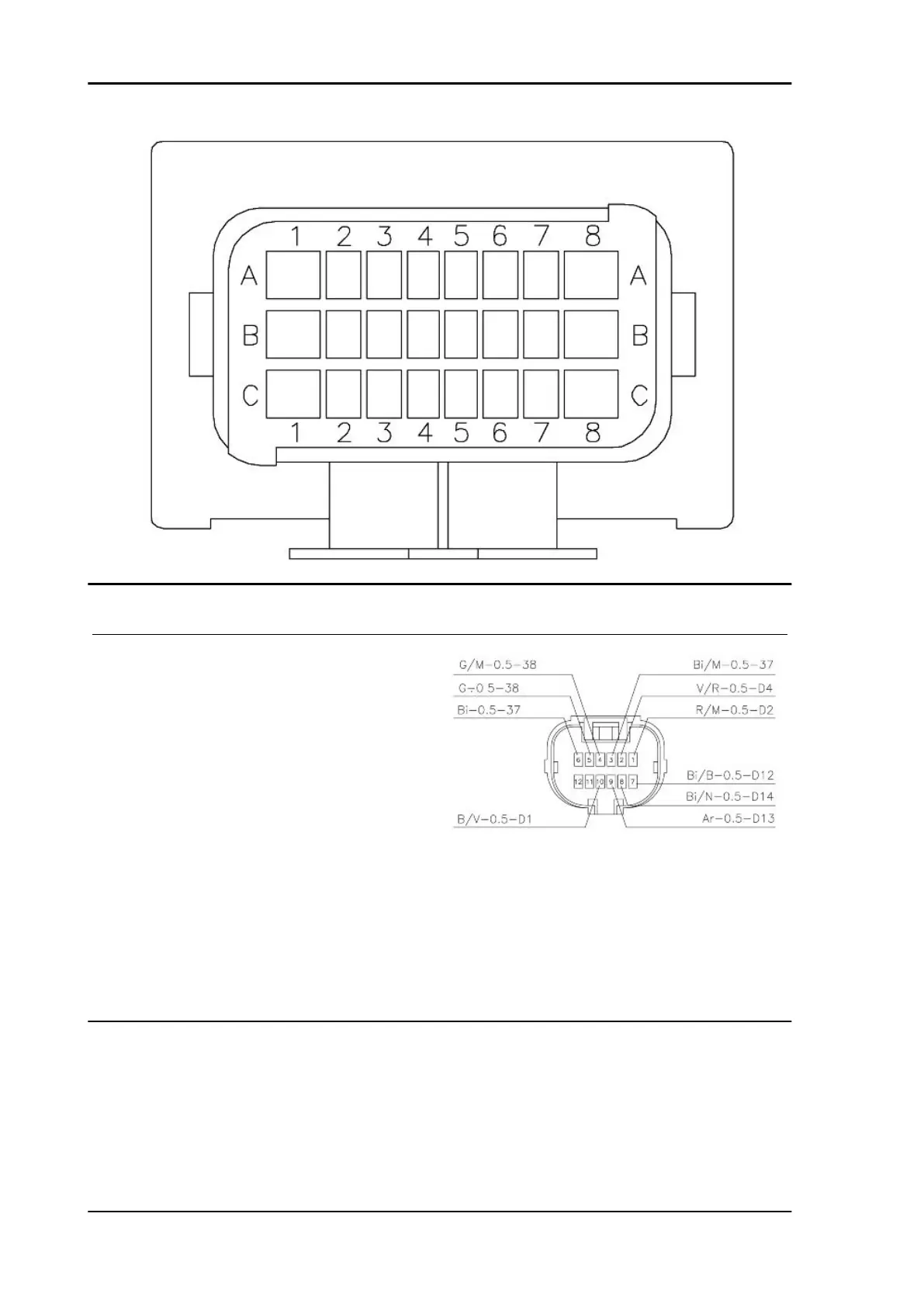

Tone wheels ecu reading
key:
1. 12 V Key-on power supply
2. 12V power from battery
3. Front tone wheel signal (+)
4. Rear tone wheel signal (+)
5. Rear tone wheel signal (-)
6. Front tone wheel signal (-)
7. Diagnosis
8. CAN L line
9. CAN H line
10.Ground connection
11.Not used
12.Not used
Electrical system RSV4 Factory a-PRC
ELE SYS - 240
