Dashboard

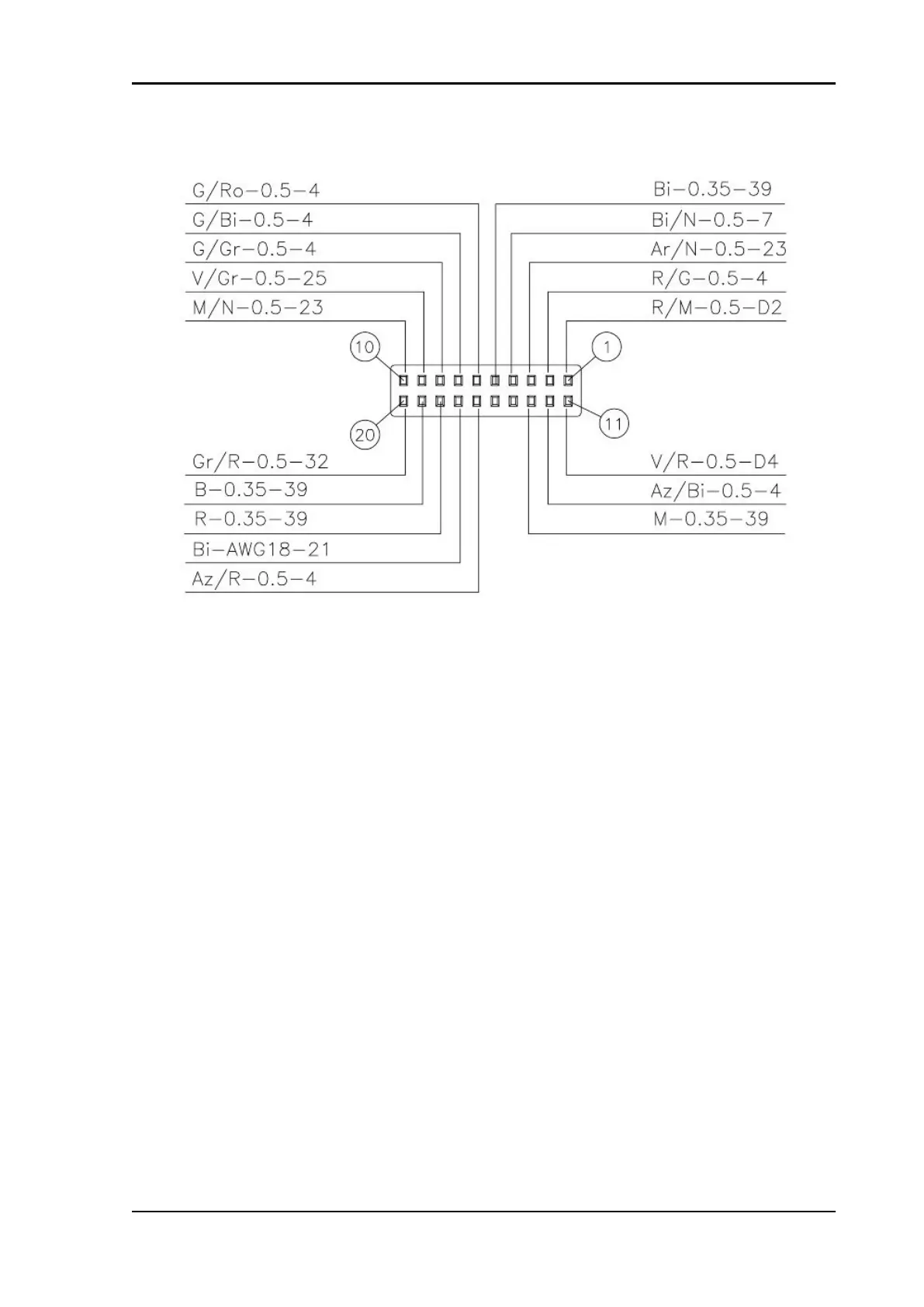

Grey-bodied instrument panel pinout key:
1 +Key
2 Right turn indicator control
3 Exhaust valve potentiometer power supply
4 High beam lights input
5 Normally open button "1"
6 Select 3 (Set)
7 Select 2 (Down)
8 Select 1 (Up)
9 Low fuel sensor
10 Exhaust valve potentiometer signal input
11+ Battery
12 Left turn indicator control
13 Normally closed button "+"
14 *
15 *
16 Indicator reset
17 Oil sensor input
18 Normally open button "-"
19 Normally closed button "-"
20 K line
