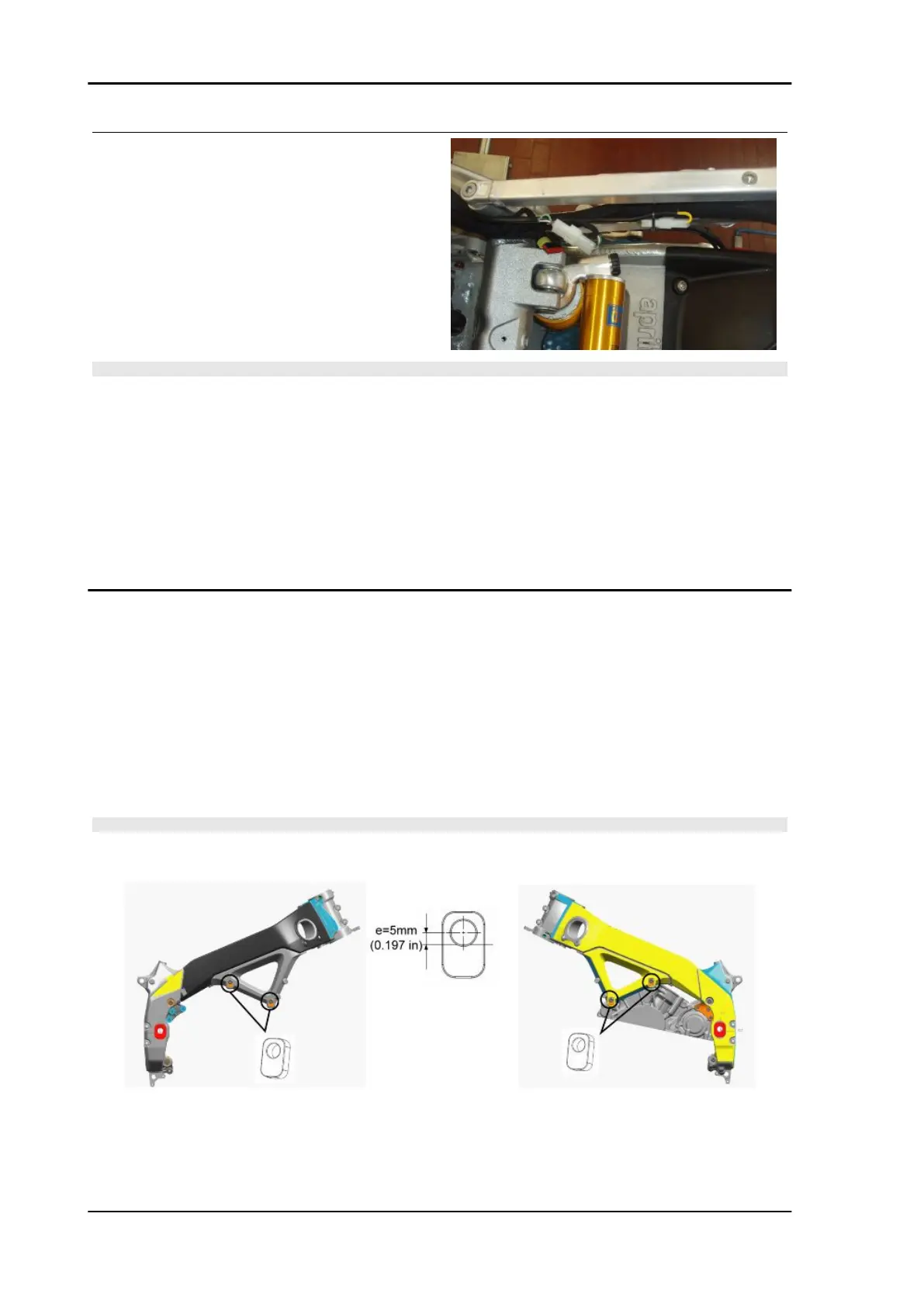

Remove the clamps on the saddle
mounting.
CAUTION
PERFORM THE OPERATIONS BELOW AIDED BY A SECOND OPERATOR.
•
Lower the engine
•
Lift the front part of the vehicle.
•
Remove the front stand.
•
Release the belts from the hoist, supporting the front part of the vehicle.
•
Remove the rear stand.
•
Remove the chassis from the engine.
Installing the engine to the vehicle
•
Before aligning the engine retainers, place on the frame the internal and external right and
left inserts, with the precautions described below.
Adjustment of engine height relative to the chassis is assured by properly inserts placed on the chassis
(front position) and on the engine, matching the fixing points of the engine to the chassis.
The hole position relative to the centreline of the insert is e=+5 mm (e= +0.197 in), therefore, the engine
is fixed at maximum height possible.
CAUTION
THE LEFT AND RIGHT FRONT INSERTS ARE EQUAL AND MUST NOT BE PLACED IN THE IN-
VERTED POSITION.
Engine from vehicle RSV4 Factory a-PRC
ENG VE - 260
