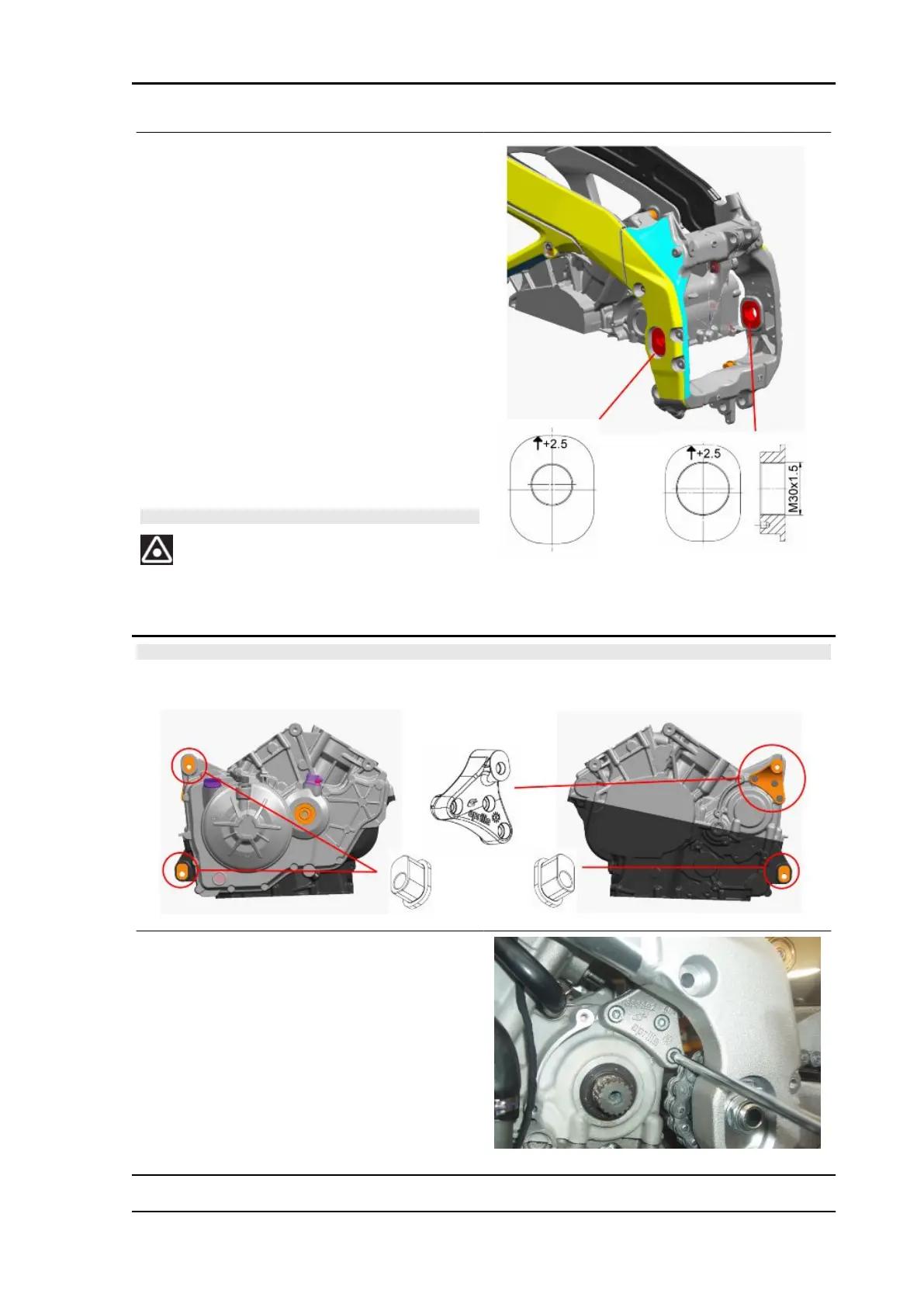

The height of the swingarm pin relative to the
chassis is adjusted with special inserts installed in
the respective seats in the chassis. The hole is
offset by +2.5 mm (0.098 in) relative to the centre-
line of the insert, as a result the swingarm is in the
high position.
There are 4 inserts, subdivided as follows:
•
Inner/outer
•
Right/Left
The two right side swingarm pin inserts are differ-
ent.
The two left side swingarm pin inserts are the
same.
CAUTION
THE FOUR INSERTS MUST BE FITTED WITH THE ARROW
FACING UPWARDS, OTHERWISE THE VEHICLE WILL BE
DAMAGED!
CAUTION
THE RIGHT REAR INSERTS (+5mm (+0.19 in)) AND THE LOWER LEFT REAR INSERT (+5mm
(+0.19 in)), ARE EQUAL.
•
Working from the vehicle left side, in-
stall the left upper engine attachment,
tightening the three screws.
RSV4 Factory a-PRC Engine from vehicle
ENG VE - 261
