020850Y Primary gear lock
020848Y Flywheel retainer

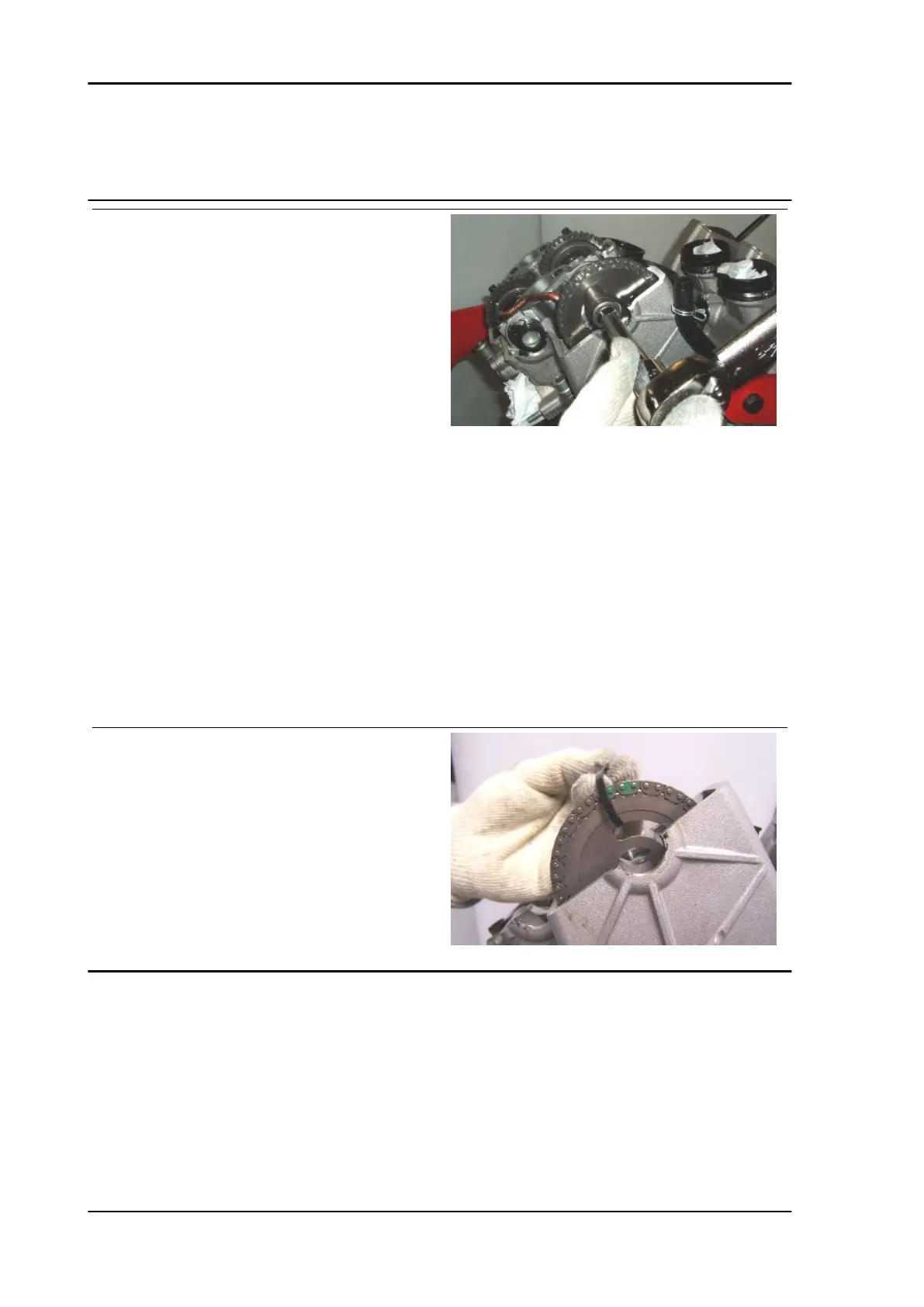

Repeat the following operations:
•
move cylinder piston 1 (left rear piston)
to TDC;
•
turn the crankshaft 150° in the engine
rotation direction (direction of travel), in
order to align the hole on the intake
camshaft with the specific hole on the
U bolt; this ensures that all the front
cylinder bank valve springs are decom-
pressed.
•
Block crankshaft rotation using one of
the specific tools.
•
Unscrew and remove the second in-
take camshaft gear screw.
•
Remove the crankshaft locking tool.
Specific tooling
020850Y Primary gear lock
020848Y Flywheel retainer
•
Slide the gear off the intake camshaft.
•
Block the gear to the timing chain with
a clamp.
Engine RSV4 Factory a-PRC
ENG - 316
