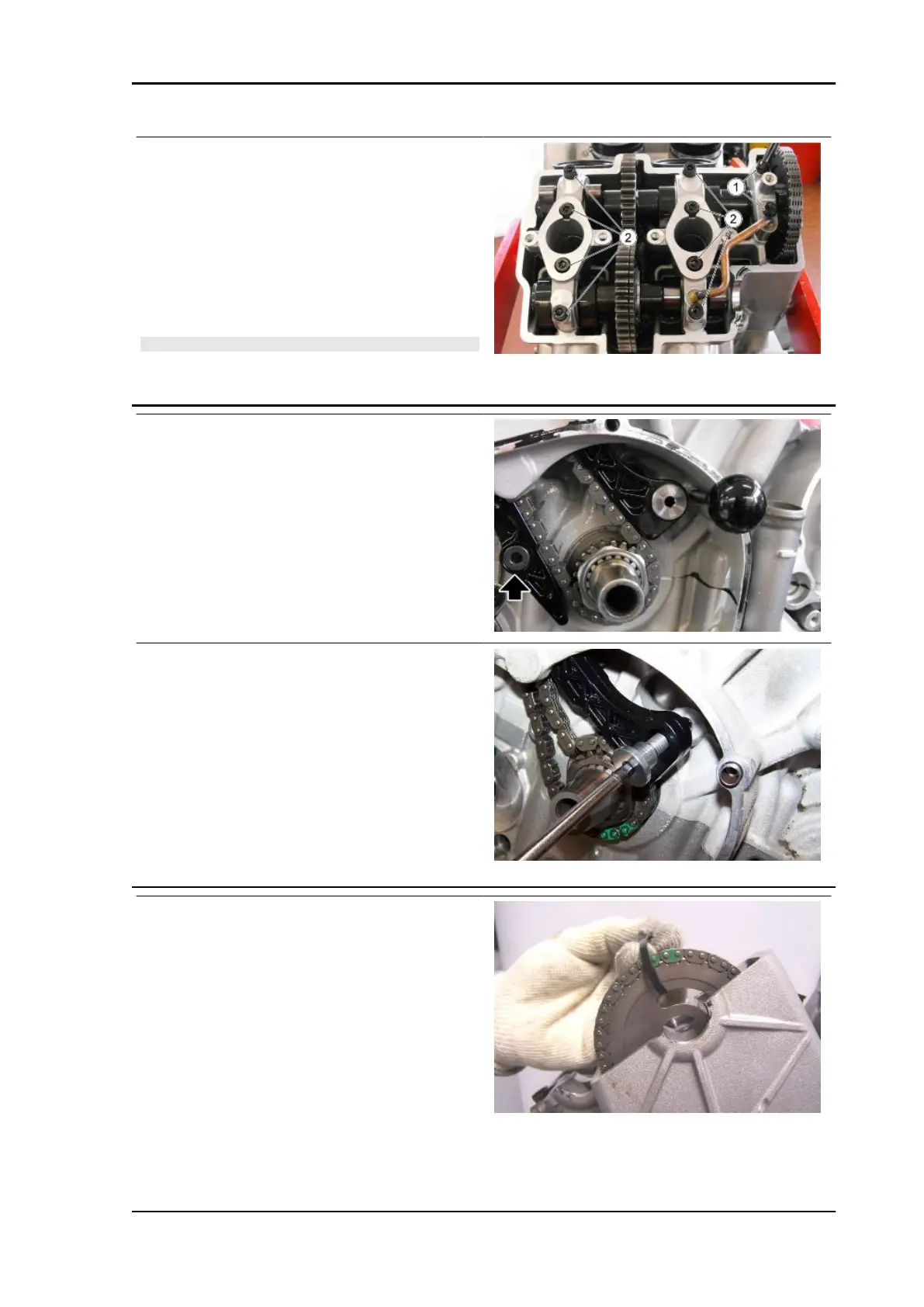

Unscrew and remove the ten screws
(1-2), proceeding in stages and in a
crossed pattern.
•
Retrieve the washers from the screws
(2) near the spark plug holes.
•
Remove the U bolts with the O rings
and locator pins.
NOTE
MARK THE COMPONENTS TO PREVENT INCORRECT RE-
FITTING.
•
Remove the intake and exhaust cam-
shafts from the front head.
•
Unscrew and remove the fixed chain
slider screw.
•
Remove the fixed chain slider.
•
Unscrew and remove the mobile chain
slider screw.
•
Remove the mobile chain slider.
•
Remove the camshaft control gear
connected with a clamp to the timing
chain.
RSV4 Factory a-PRC Engine
ENG - 317
