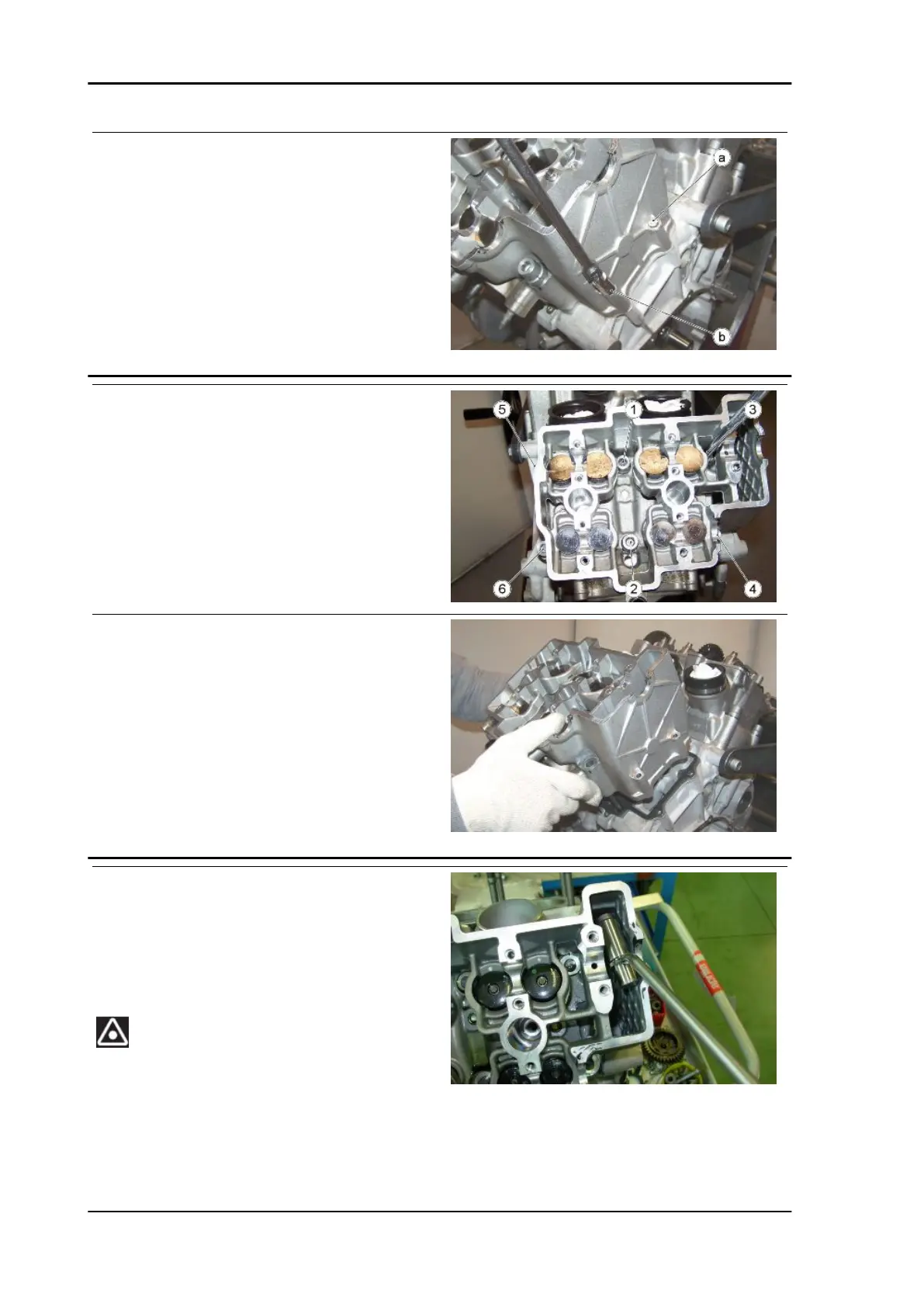

Unscrew and remove the two head fix-
ing screws (a - b) from the flywheel
side.
•
Loosen the six nuts on the stud bolts,
proceeding in the following order 6 - 5
- 4 - 3 - 2 - 1.
•
After loosening all nuts, remove them
in order indicated above.
•
Remove the front head, slipping it off
the stud bolts.
•
Collect the gasket and the two dowel
pins.
•
Remove the chain tensioner complete
with O-ring using the specific tool.
•
If the O-ring is not on the chain ten-
sioner, make sure it was not left in the
crankcase seat.
REPLACE THE O RING UPON EACH REMOVAL.
Specific tooling
020883Y Tool for fitting/removing the timing
chain tensioner
Engine RSV4 Factory a-PRC
ENG - 318
