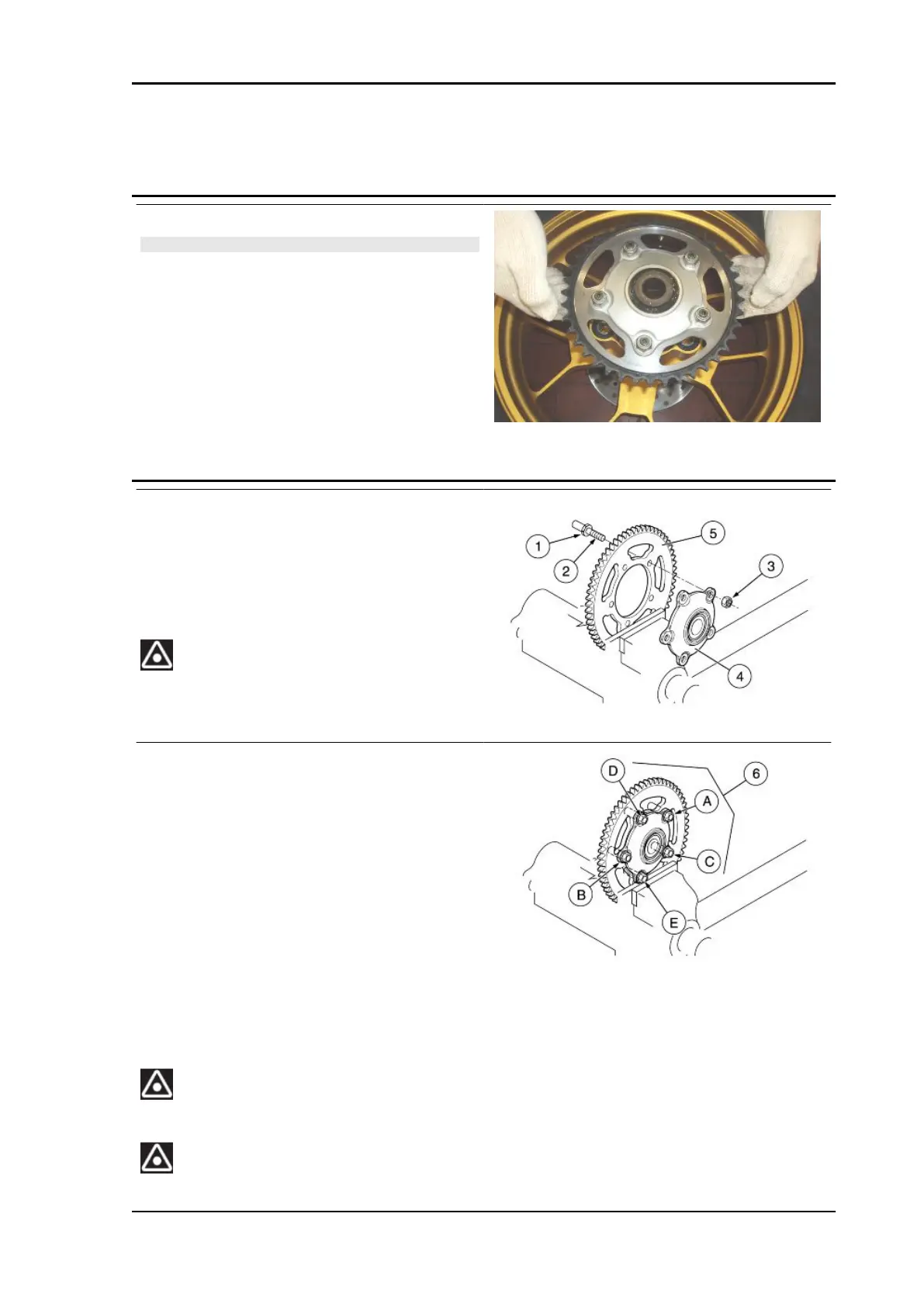

DO NOT UNSCREW THE FIVE NUTS. THE FINAL TRANS-
MISSION UNIT CAN BE SLID OFF COMPLETELY FROM
THE ANTI-VIBRATION BUFFER HOLDER.
•
Remove the final transmission unit.
CAUTION
THE FLEXIBLE COUPLINGS REMAIN FITTED ON THEIR
HOLDER.
•
Remove all the flexible couplings.
•
Using an Allen spanner on the related
seat (1), lock the rotation of the threa-
ded pin (2), unscrew and remove the
self-locking nut (3) and the threaded
pin (2).
THE SELF-LOCKING NUTS (3) MUST BE REPLACED EV-
ERY THREE SPROCKET REMOVALS.
REPLACE THE SELF-LOCKING NUTS (3) WITH NUTS OF
THE SAME TYPE.
•
Remove the sprocket mounting (4).
•
Clean the sprocket (5) and the sprock-
et mounting (4) with fresh detergent.
Reassembly:
•
Fit the five threaded pins (2) on the
sprocket (5).
•
Install the sprocket mounting on the
sprocket mounting - threaded pin as-
sembly.
•
Hand-tighten the five self-locking nuts
(3).
NEVER INSTALL THE FINAL TRANSMISSION UNIT (6) ON
THE WHEEL TO TIGHTEN THE SELF-LOCKING NUTS.
RSV4 Factory a-PRC Suspensions
SUSP - 425
