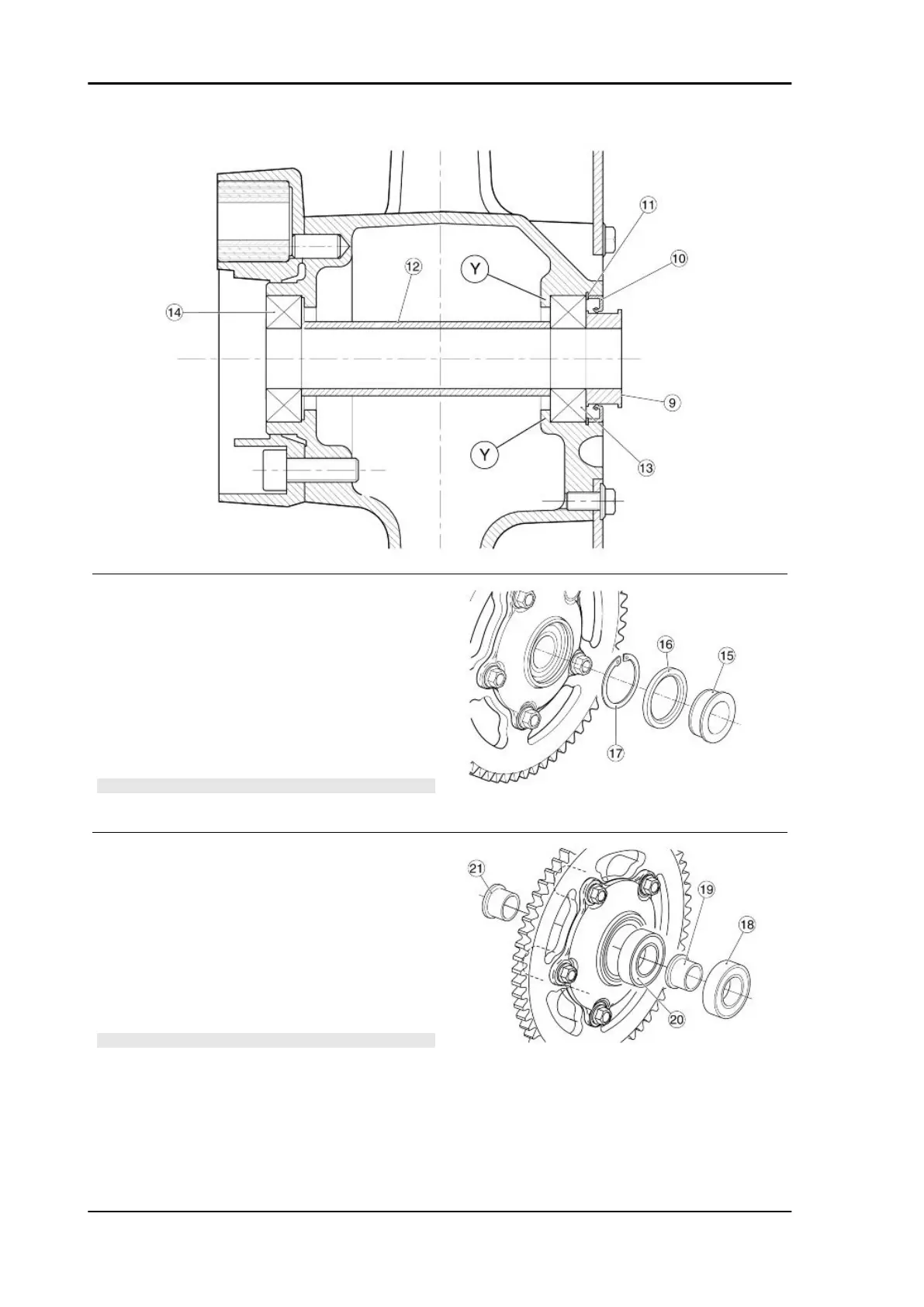

FINAL DRIVE UNIT - BEARING REMOVAL
•
Remove the final drive unit.
•
Clean the two sides of the hub with a
cloth.
•
Remove the left spacer (15).
•
Remove the sealing gasket (16).
•
Remove the circlip (17).
CAUTION
THE CIRCLIP (17) IS FITTED ONLY ON THE FINAL DRIVE
UNIT, LEFT SIDE.
•
Remove the left bearing (18) with the
specific extractor.
•
Collect the inside spacer (19).
•
Remove the right bearing (20) with the
specific extractor.
•
Retrieve the right hand spacer (21).
•
Clean the inside of the hub thoroughly.
CAUTION
WASH ALL THE PARTS WITH CLEAN DETERGENT.
Specific tooling
AP8140180 Extractor for bushings
