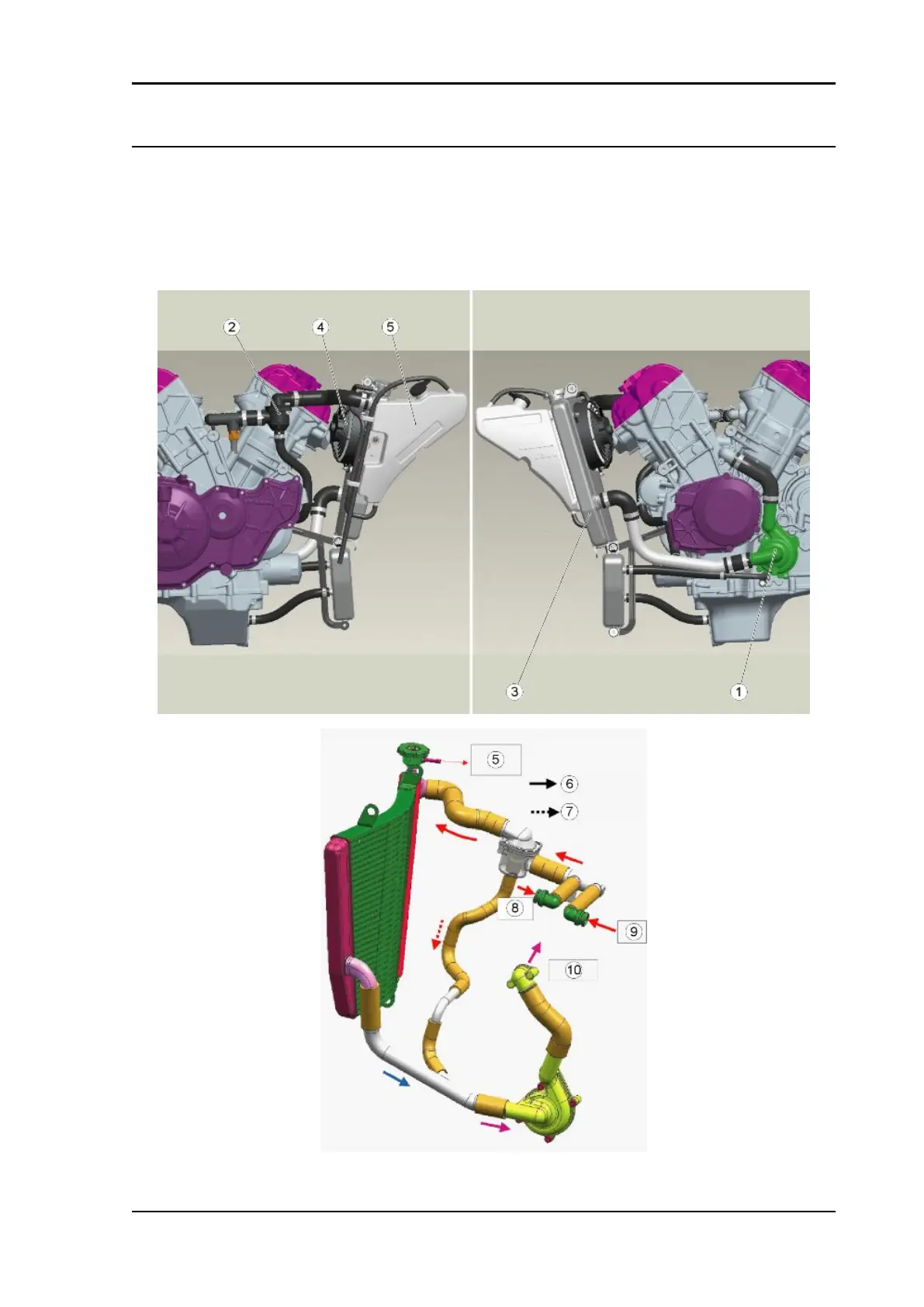

Circuit diagram

SYSTEM TYPE

Self bleeding cooling circuit with aspirating centrifugal pump (1), three-way thermostat valve (2), cooling

radiator (3) with electric fans (4) and expansion tank (5).

key:

RSV4 Factory a-PRC Cooling system

COOL SYS - 473
