APRILIA RSV4 Factory a-PRC 2009 User Manual

1. Centrifugal pump
2. Thermostatic valve
3. Radiator
4. Electric fans
5. Expansion tank
6. With the thermostat open
7. With the thermostat closed
8. From front head
9. From rear head
10.To upper crankcase

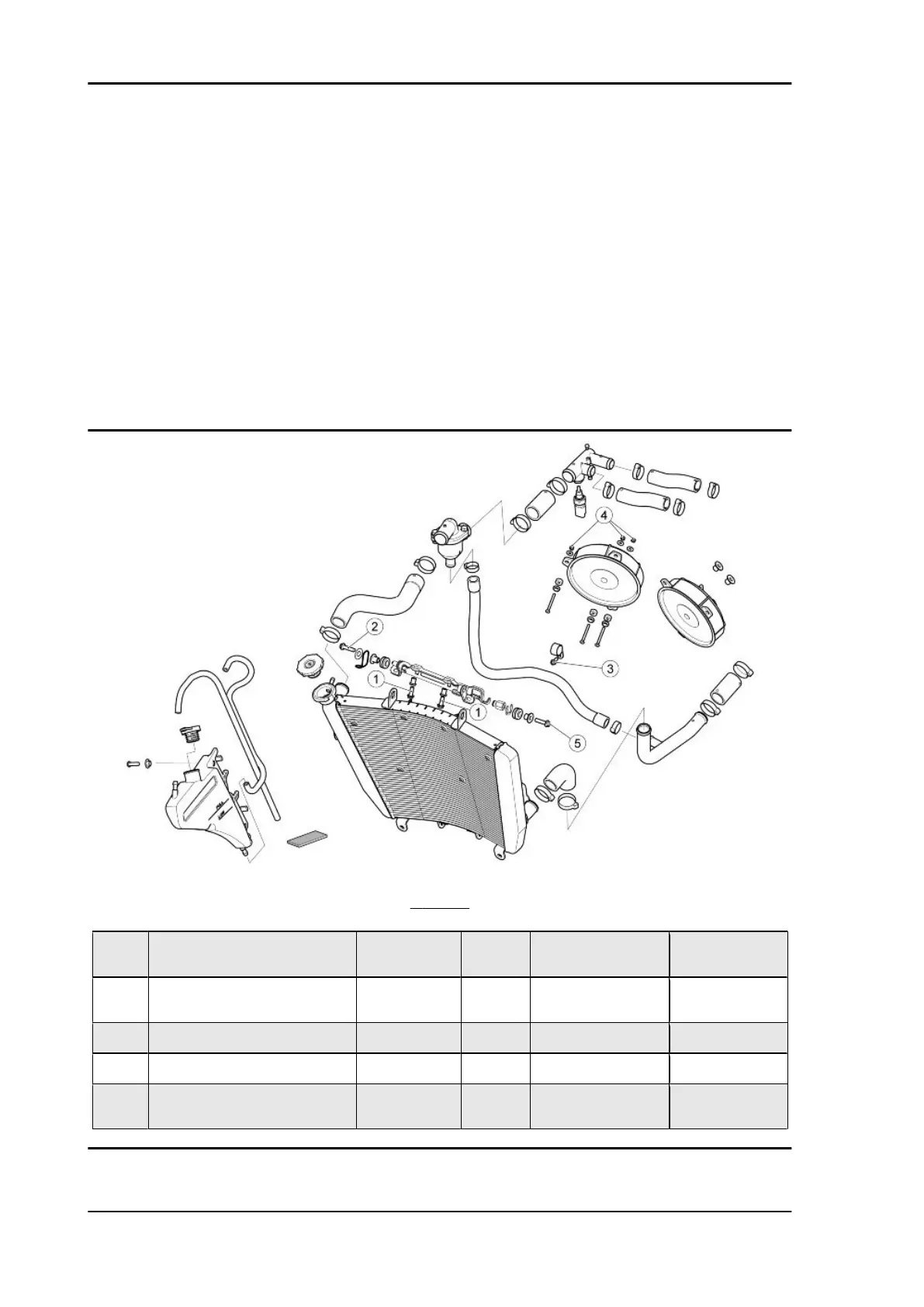

COOLING
pos.
Description Type Quantity Torque Notes
1 Flanged TE screws for fastening the
water radiator mounting bracket to
frame
M6x20 2 10 Nm (7.37 lbf ft) -
2 Self-tapping screw for fastening the
water radiator to the mounting brack-
et
- 1 2 Nm (1.47 lbf ft) -
3 Screw fastening pipe grommet for
By-pass water hose
M5 1 6 Nm (4.42 lbf ft) -
4 Screws fastening electric fan to wa-
ter radiator
M4 6 2 Nm (1.47 lbf ft) -
5 Flanged TE screw for fastening the
water radiator to the mounting brack-
et
M6x20 1 7 Nm (5.16 lbf ft) -
Cooling system RSV4 Factory a-PRC
COOL SYS - 474
