Led indications and controls
The LED Indications and controls can further be broken down into:
• General indicators
• Controls
• Sounders
• Fire Brigade
• Enable/Disable keyswitch
• Zone indicators

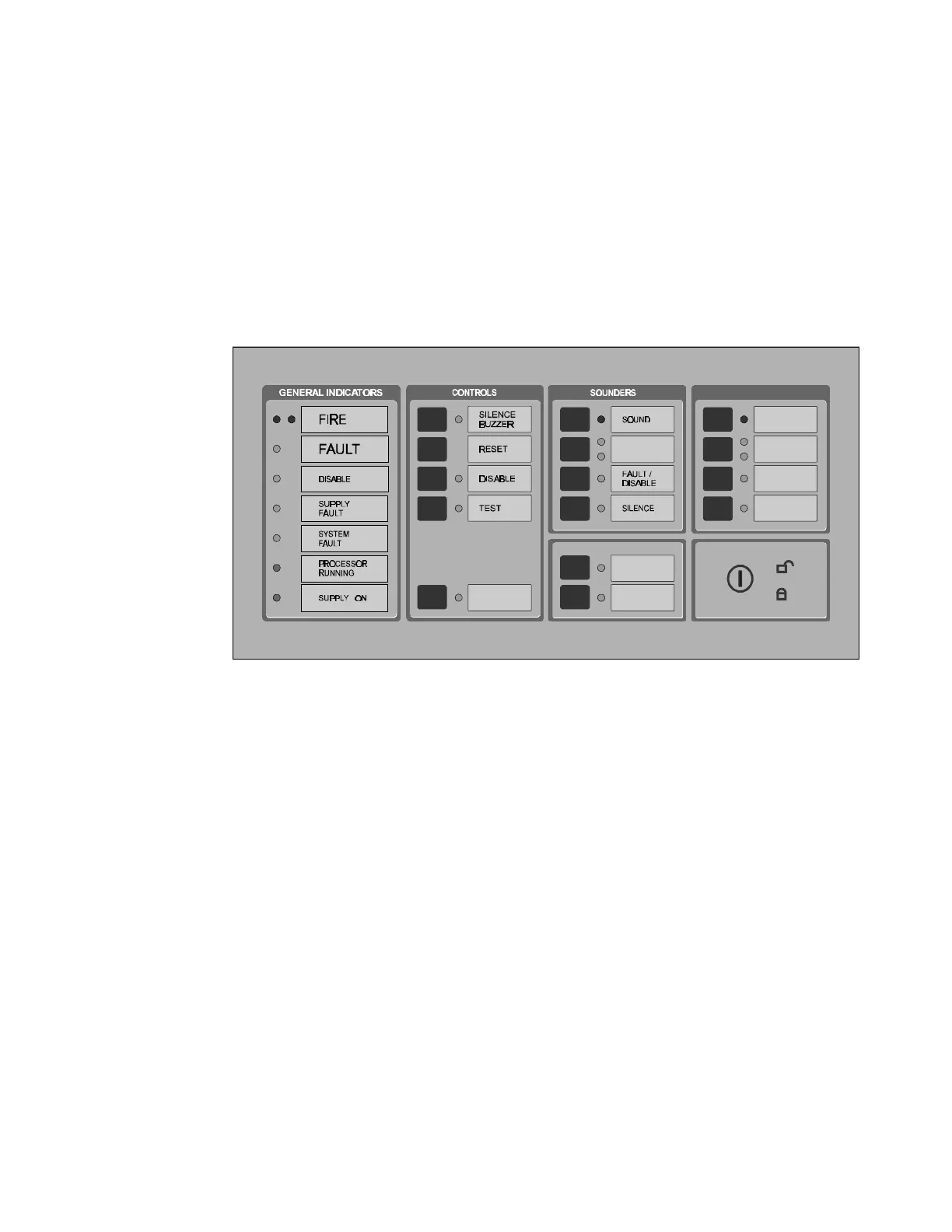

Figure 2: General Indications and Controls
General indicators
COMMON FIRE
Two red LED's indicate that a fire has been detected.
COMMON FAULT
One or more of the following may cause a common fault:
• Zone fault
• Supply fault
• Processor fault
• Sounder fault
• Fire Brigade fault
• Any test mode
• Any disable mode
