Automatic Divider-rounder model Syncro
54/79
Use and maintenance manual (translation of the original instructions) - MASA6_en_2 of 23/03/2021
4.4.4 CLEANING THE HEAT EXCHANGER
Before beginning, activate the safety measures
indicated in par. 4.1. Wear abrasion-resistant
gloves, shoes with reinforced toe, dust-proof face
mask, and protective goggles.
At least once a week, clean the heat exchanger
located at the rear of the machine with a brush or,
even better, with compressed air, as shown in the
image in Figure 35 .
4.4.5 CLEANING THE DOUGH REMOVING ROLLERS AND THE SCRAPERS OF THE DIVIDING DRUM
Before beginning, activate the safety measures indicated in par. 4.1. Wear abrasion-resistant gloves,
shoes with reinforced toe, dust-proof face mask, and protective goggles.
The dividing drum is kept clean externally by a pair of scrapers, accessible after removing the dough removing
roller unitFigure 1 ref. 5 following the operations illustrated in the first three images belowFigure 36 . Then,
carefully clean the Teflon-coated cylinders of the dough removing roller unit and remove the dough build-up
present in the scrapers of the dividing drum (last two images). To clean the Teflon-coated cylinders of the dough
removing roller unit, use the brush supplied and a clean cloth. The use of abrasive or sharp elements that may
compromise the non-stick surface treatment IS PROHIBITED. For scrapers, on the other hand, it is sufficient to
activate the rotation levers as shown in the images.

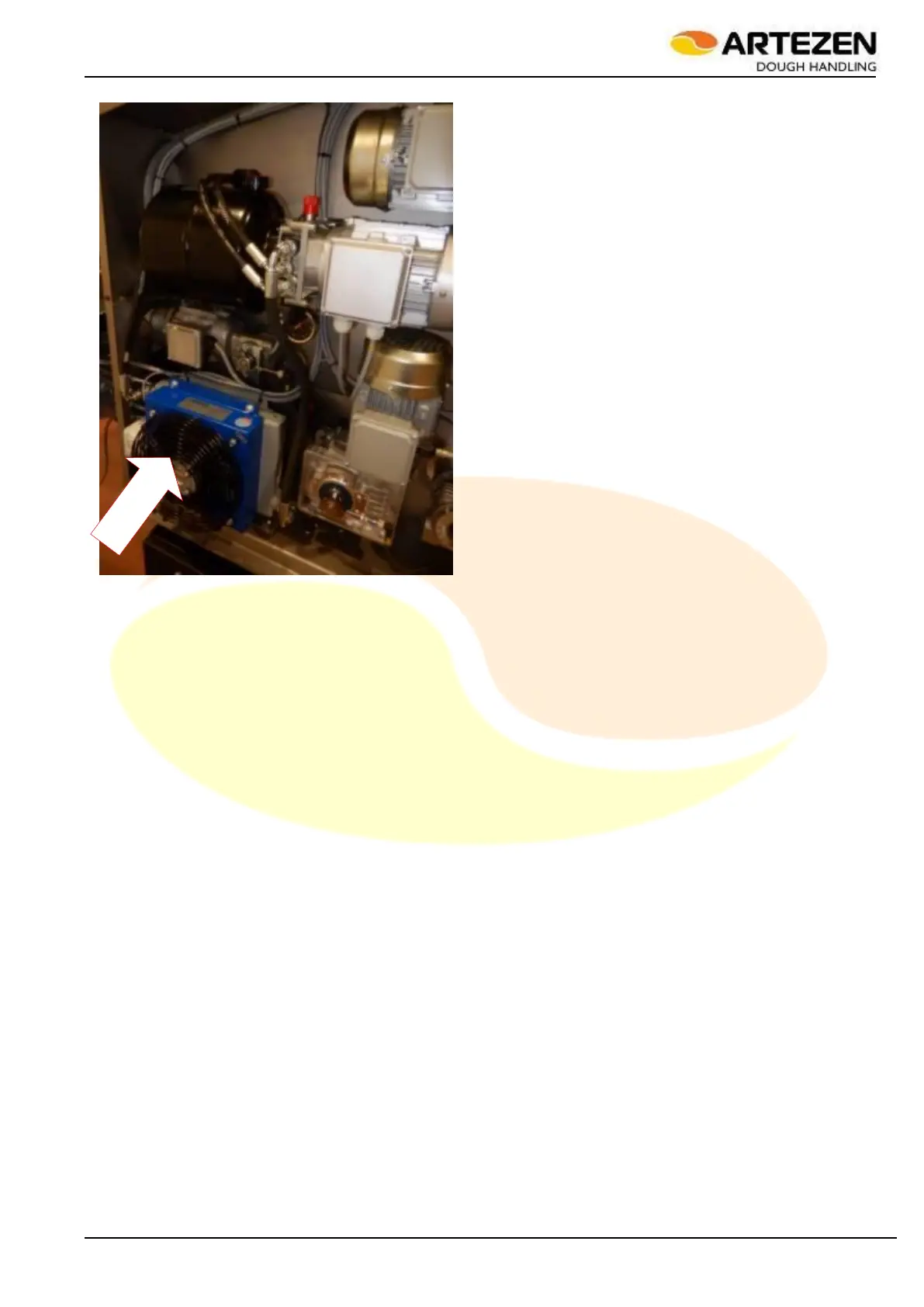

Figure 35 - Cleaning the heat exchanger
