Model 8640B TM 9-4935-601-14-7&P
CHANGE 13 (Cont'd)
Service Sheet 13 (component locations):
Replace Figure 8-43 with the attached figure:
A26A1

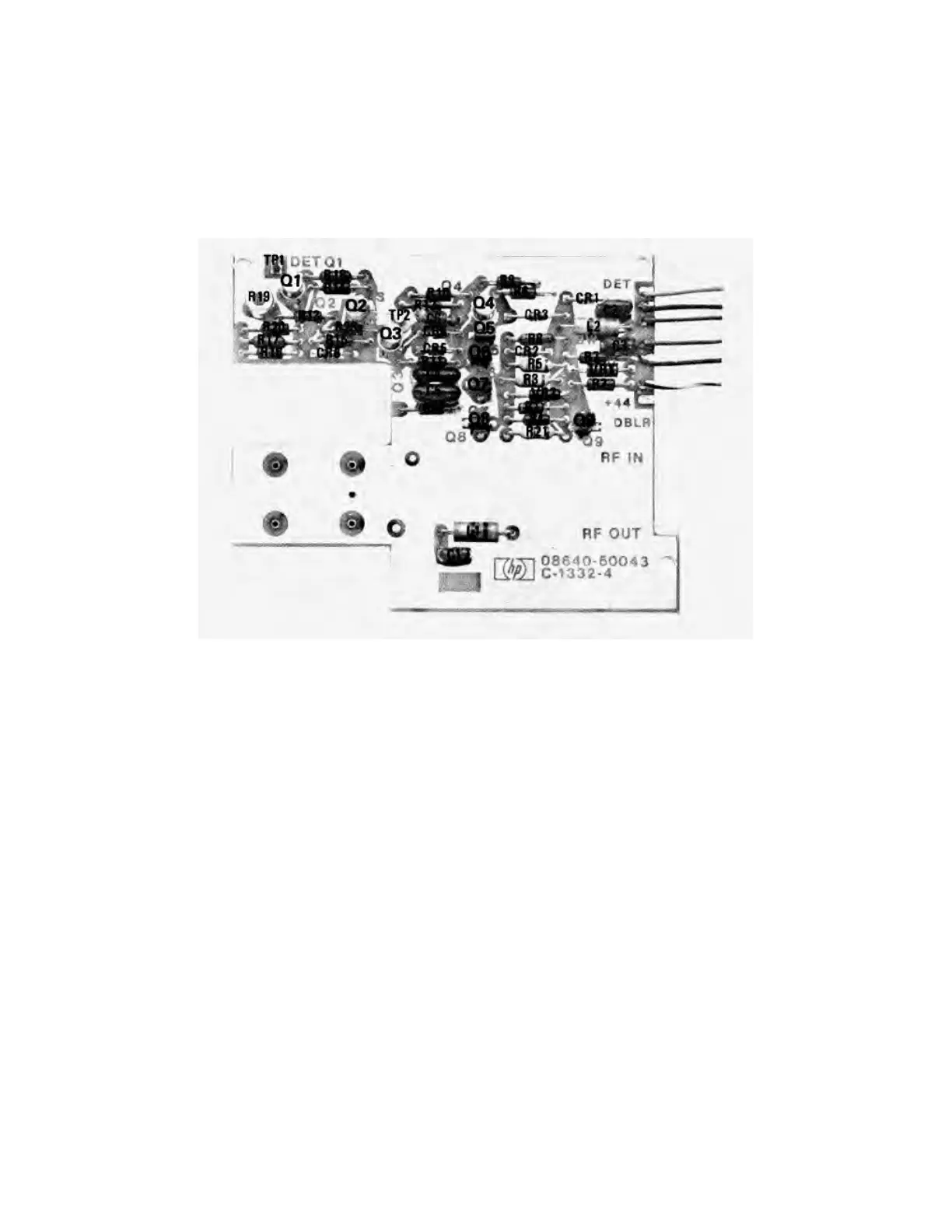

Figure 8-43. A26A1 Power Amplifier and AGC Detector Assembly Component Locations (P/O Change 13)
Service Sheet 13 (schematic):
Replace appropriate portion of schematic with the attached partial schematic.
7-39
