artisan 8640B - A9 Peak Deviation and Range Switch Assembly Illustrated Parts Breakdown

Model 8640B TM 9-4935-601-14-7&P
A9 Deviation and Range Switch Assembly Legend
Item Number Reference
Designator
Description
1 A9MP1 Retainer Ring
2 A9MP2 Gear
3 P/O A9MP8 Gear
4 A9MP3 Gear
5 A9MP4 Gear
6 A9MP5 Gear
7 A9R1 Potentiometer
8 A9MP6 Flat Washer
9 A9MP7 Coupler
10 A9MP8 Switch Support
11 P/O A9MP8 Gear Support
12 A9MP9 Adjustable Shaft
13 A9MP10 Switch Shaft

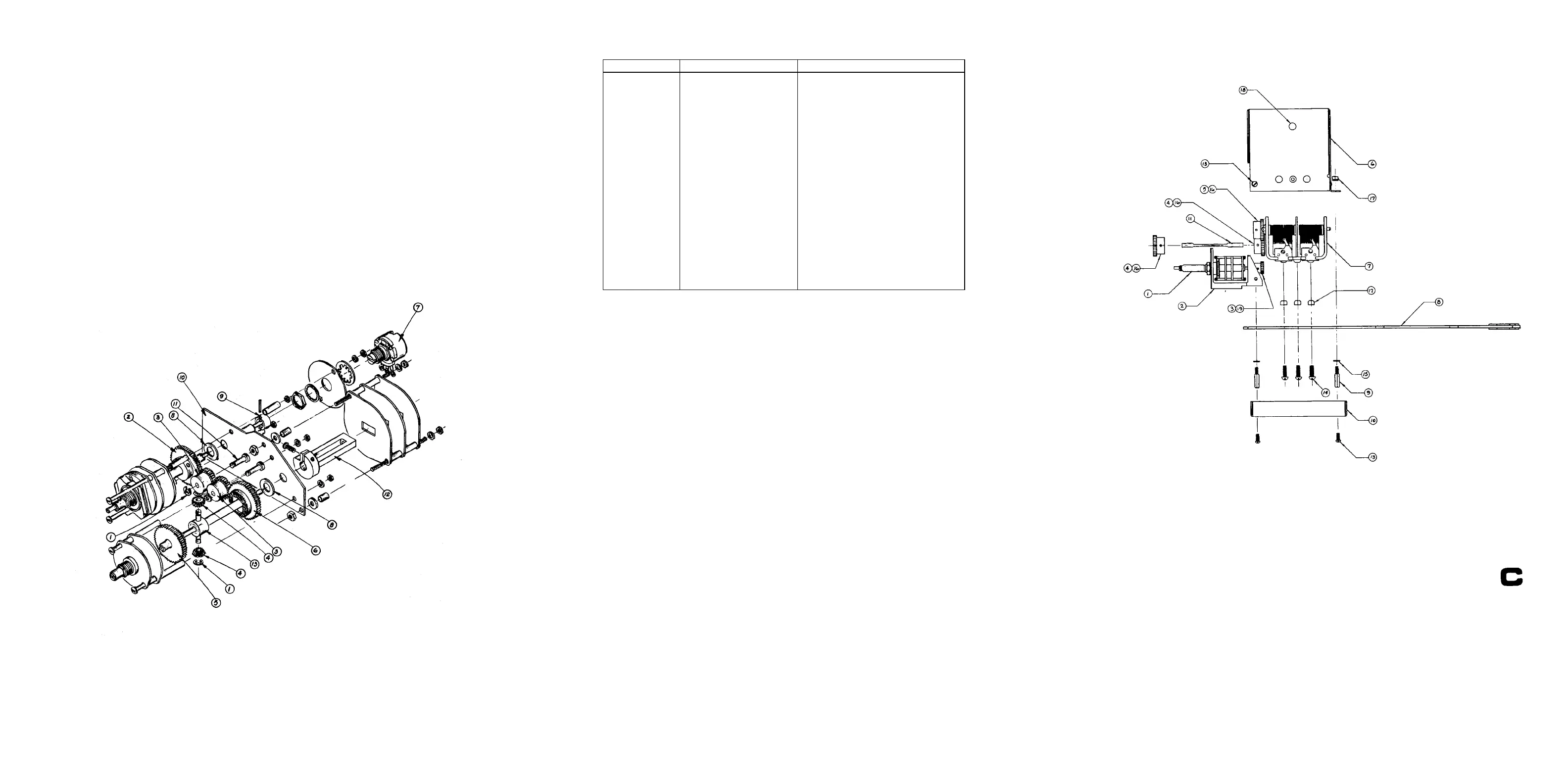

Figure 8-78. A9 Peak Deviation and Range Switch Assembly Illustrated Parts Breakdown
A11 Variable Frequency Modulation Oscillator Assembly (Option 001) Legend
Item Number Reference Designator Description
1 A11A1Sl Rotary Switch
2 A11A1MP1 Gear Support Housing
3 A11A1MP2 Spur Gear
4 A11A1MP3 Spur Gear
5 A11MP3 Spur Gear
6 A11MP4 Audio Oscillator Cover (Capacitor)
7 A11C1 Variable Capacitor
8 P/O A11 Audio Oscillator Assembly
9 A11MP5 Support
10 A11MP6 Audio Oscillator Cover (Circuit)
11 A11A1MP4 Audio Oscillator Shaft
12 A11MP7 Spacer
13 A111MP8 Screw
14 A11MP9 Screw
15 A11MP10 Washer
16 A11A1MP5 Setscrew
17 A11MP11 Nut
18 A11MP12 Nylon Glide
19 A11A1MP6 Setscrew
Figure 8-79. A11 Variable-Frequency Modulation Oscillator (Option 001) Illustrated Parts
Breakdown
8-75
