Model 8640B TM 9-4935-601-14-7&P
CHANGE 24 (cont'd)
P/O A8A2

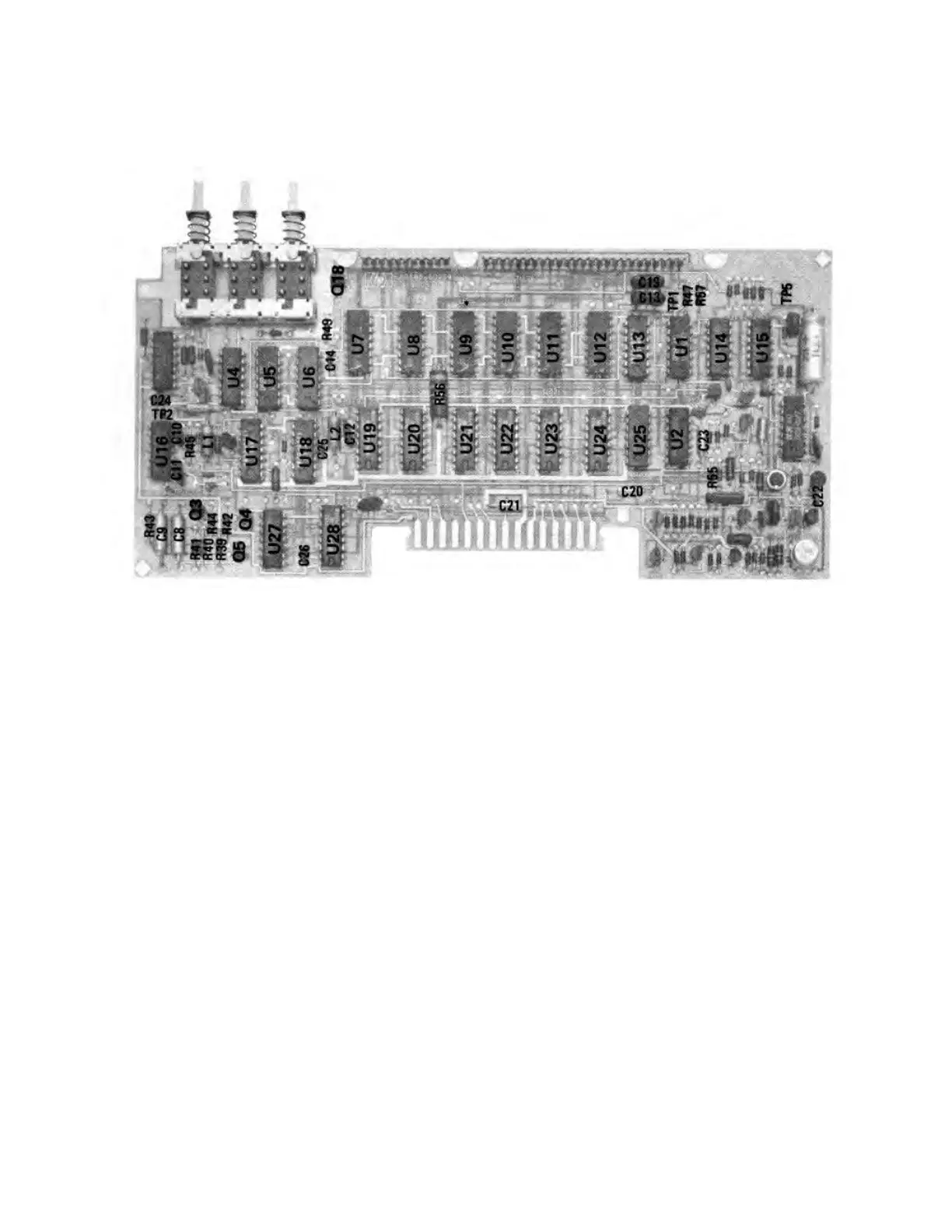

Figure 8-61. P/O A8A2 Counter/Lock Board Assembly Component Locations (P/O Change 24)
Service Sheet 20 (schematic):
Change part number of A8A2 subassembly to 08640-60258. Replace appropriate portion of Figure 8-62 with
attached partial schematic.
7-53
