Model 8640B TM 9-4935-601-14-7&P
SECTION II
INSTALLATION
2-1. INTRODUCTION
2-2. This section explains how to prepare the Model
8640B Signal Generator for use. It explains how to
connect the instrument to accept available line voltage,
and it also describes bench operation, rack mounting,
storage, and shipment.
2-3. INITIAL INSPECTION
2-4. Inspect the shipping container for damage. If the
shipping container or cushioning material is damaged it
should be kept until the contents of the shipment have
been -checked for completeness and the instrument has
been checked mechanically and electrically. The
contents of the shipment should be as shown in Figure
1-1, and procedures for checking electrical performance
are given in Section IV. If the contents are incomplete,
if there is mechanical damage or defect, or if the
instrument does not pass the electrical performance
test, notify the nearest Hewlett-Packard office. If the
shipping container is damaged, or the cushioning
material shows signs of stress, notify the carrier as well
as the Hewlett-Packard office. Keep the shipping
materials for carrier's inspection. The HP office will
arrange for repair or replacement without waiting for
claim settlement.
2-5. PREPARATION FOR USE
2-6. Power Requirements
2-7. The Model 8640B requires a power source of 100,
120, 220, or 240 Vac +5-10%, 48 to 440 Hz, single
phase. Power consumption is 175 VA maximum.

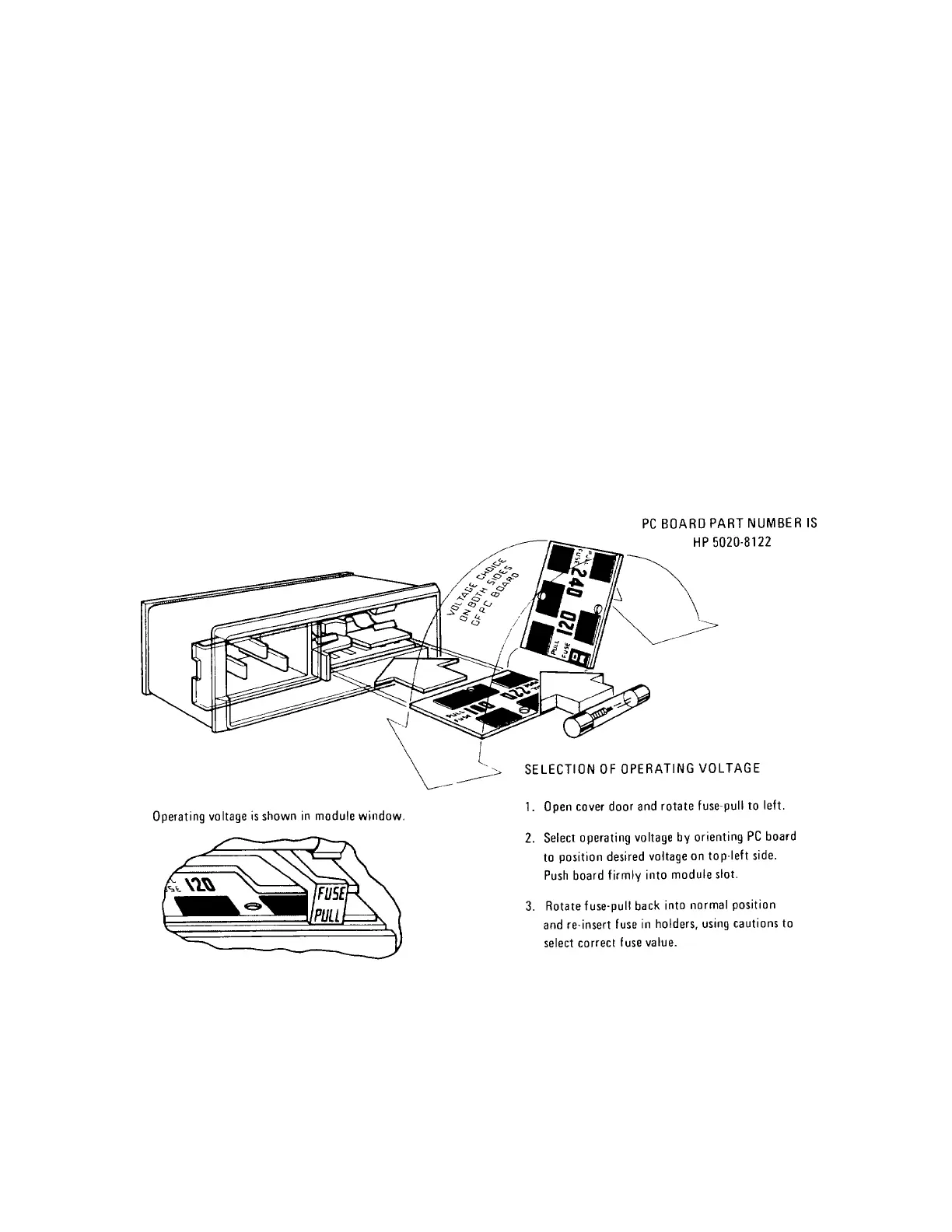

Figure 2-1. Line Selector
2-1
