Model 8640B TM 9-4935-601-14-7&P
SERVICE SHEET D (Cont'd)
A10 Divider/Filter Assembly Legend
Item Number Reference Designator Description
1 A10A1FL1,2,3 Feed Thru Filter
2 A10MP1 Yellow P.C. Board Guide
3 A10MP2 Green P.C. Board Guide
4 A10MP3 Blue P.C. Board Guide
5 A10A1MP1 Detent Pin
6 A10MP4 RFI Braid
7 A10A1MP2 Detent Roller
8 A10A1MP3 Detent Spring
9 A10MP5 Spring Shield No. 1
10 A10MP6 Spring Shield No. 2
11 A10MP7 Spring Shield No. 3
12 A10MP8 Spring Shield No. 4
13 A10A1MP4 Cam Shaft
14 A10A1MP5 Cam Shaft Follower
15 A10MP9 D/F Top Cover Casting
16 A10MP10 D/F Center Casting
17 A10A1MP6 D/F Bottom Cover Casting
18 A10A1MP7 Bushing
19 A10A1MP8 Cam Cover
20 A10A1MP9 Cam Follower
21 A10A1MP10 Slider Clamp
22 A10A1 Filter/Switch Assembly
23 A10OA3 Riser Board
24 A10A2 RF Divider Assembly
25 A10MP11 Lockwasher
26 A10MP12 Machine Screw
27 A10A1MP11 Machine Screw
28 A10MP13 Machine Screw
29 A10MP14 Machine Screw
30 A10A1MP12 Clamp Support
31 A10MP15 Machine Screw
32 A10A1MP13 Setscrew
34 A10MP16 Lockwasher
35 A10MP17 Hex Nut
36 A10A1MP14 Machine Screw
37 A10MP18 Machine Screw
38 A10MP19 Blind Dome Rivet

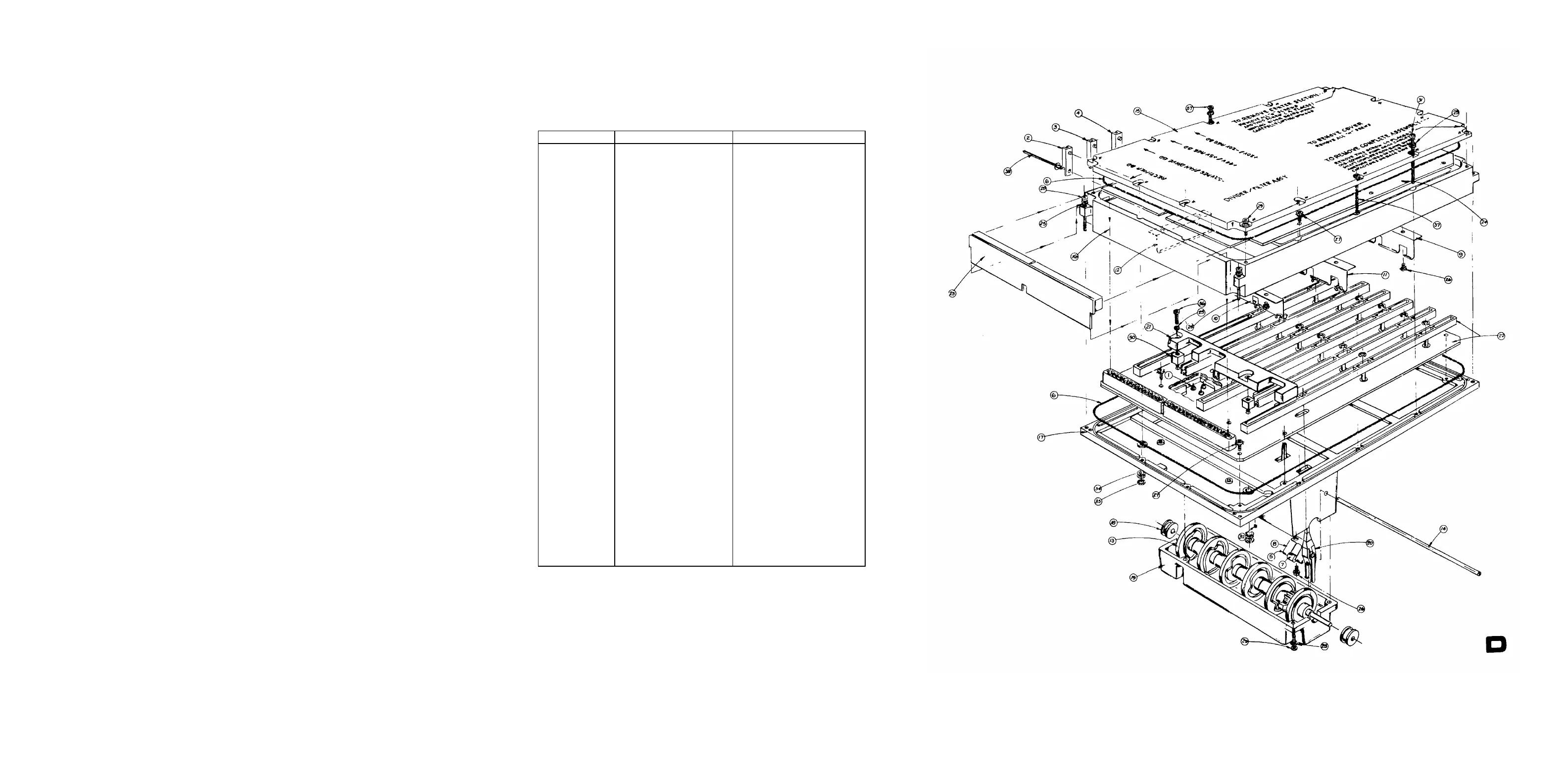

Figure 8-80. A10 Divider/Filter Assembly Illustrated Parts Breakdown
8-77
