Model 8640B TM 9-4935-601-14-7&P

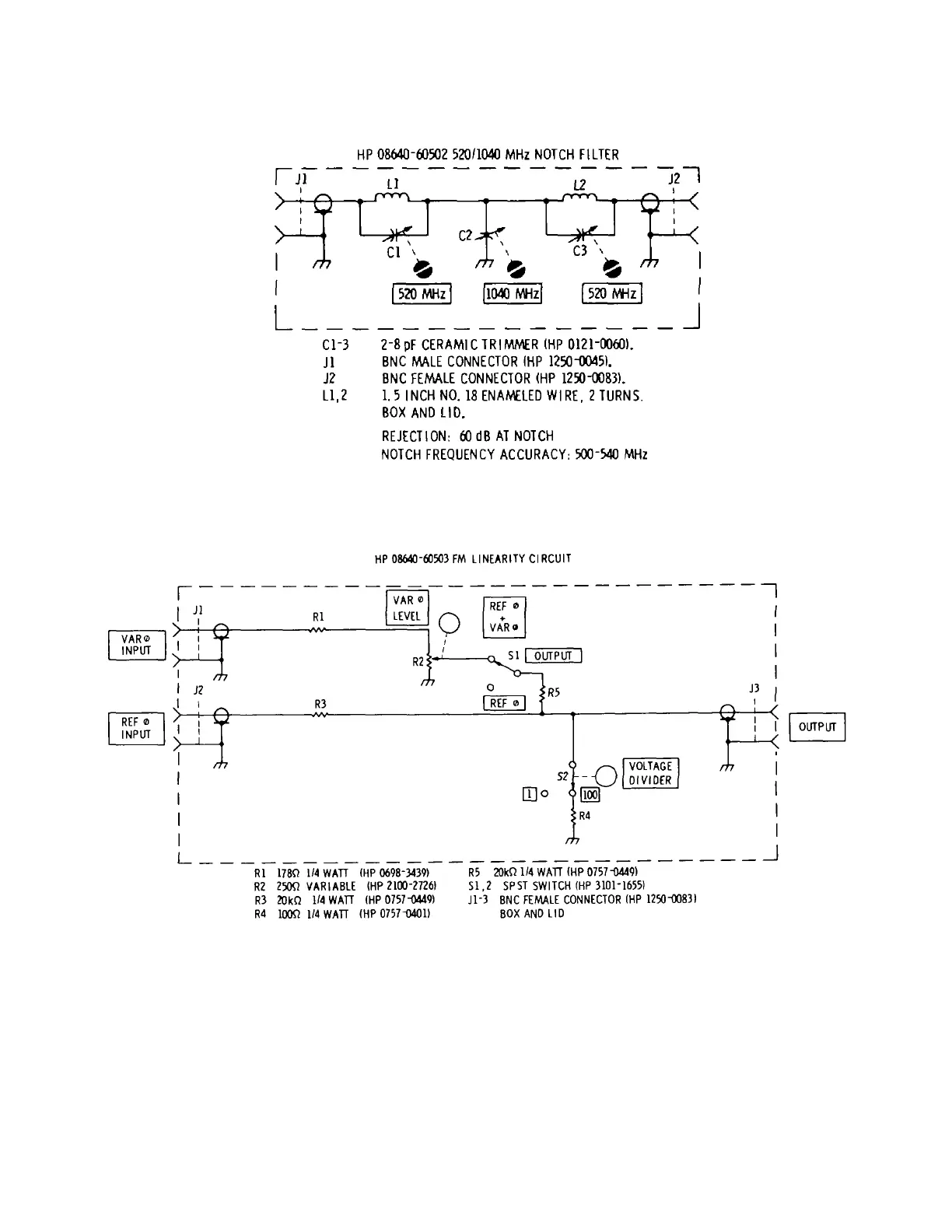

Figure 1-7. 520/1040 MHz Notch Filter.

Figure 1-8. FM Linearity Circuit.

1-21
