TM 9-4935-601-14-7&P
Model 8640B
1 SMC Adapter ........................... HP 1250-0827
2 Test Cables SMC to BNC......HP 11592-60001
1 Extender Board - 20 pins.......... HP 5060-0256
2 Bumpers (for Board)................. HP 0403-0115
8-17. Spare Parts Kit. The HP 08640-60095 Spare
Parts Kit contains miscellaneous mechanical spare parts
for the generator such things as nuts, bolts, screws 'and
washers.
8-18. Extender Board. An extender board is
supplied with the generator that can be used to extend
all circuit boards (except the A10OA2 RF Divider
Assembly and the A12 Rectifier Assembly) that are not
accessible by removing a casting cover. The RF
Divider Assembly is self-extending just remove the riser
board and insert the RF Divider Assembly into the riser's
slot. Figure 8-1 shows the extender board in use and
the RF Divider Assembly extended.

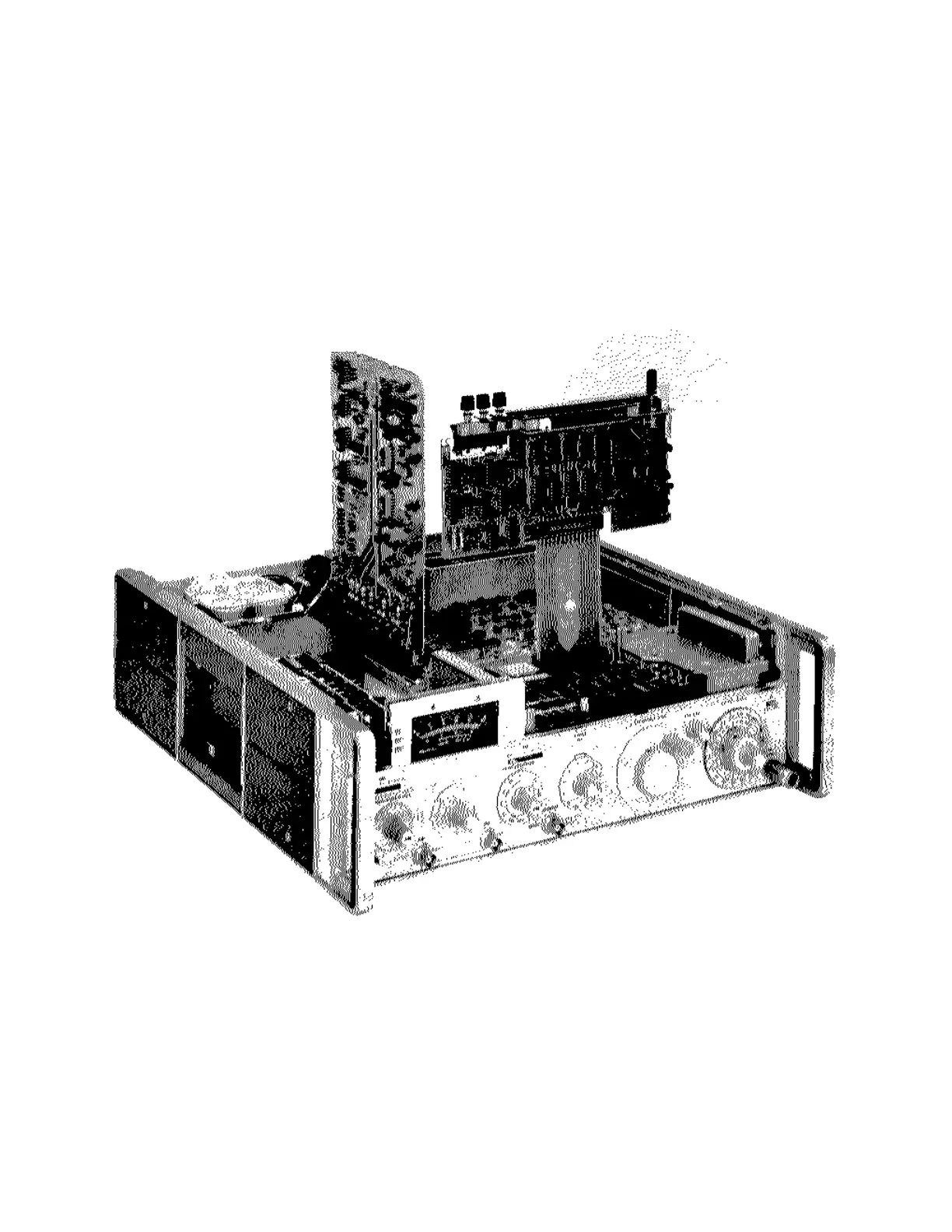

Figure 8-1. Signal Generator With Circuit Boards on Extenders
8-2
