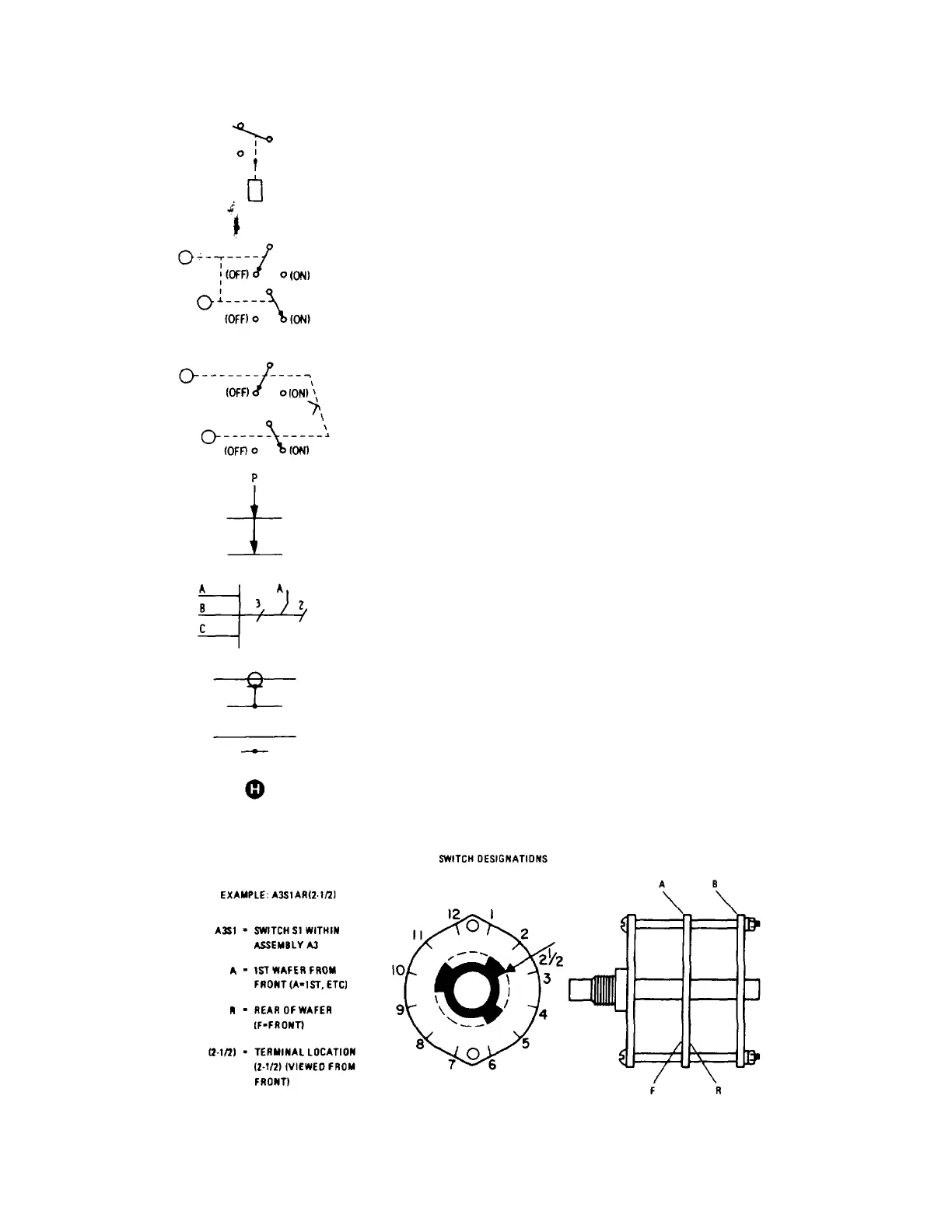

Table 8-4. Schematic Diagram Notes (2 of 3)
Relay contact moves in direction of arrow when
energized.
Indicates interlocked pushbutton switches. Only one
switch can be in
(ON) at a time.
Indicates interconnected pushbutton switches. Pushing
one switch in (ON) releases the other.
Indicates twisted wire pair.
Indicates multiple paths represented by only one line.
Letters or names identify individual paths. Numbers
indicate number of paths represented by the line.
Coaxial or shielded cable.
Stripline (i.e., RF transmission line above ground).
RF coupling by magnetic (H) field.
8-16
