MODEL 8640B TM 9-4935-601-14-7&P
Figure 8-43. A26A1 Power Amplifier and AGC Detector Assembly Component Locations.
Figure 8-44. P/O A26A2 AM Offset and Pulse Switching Assembly Component Locations.

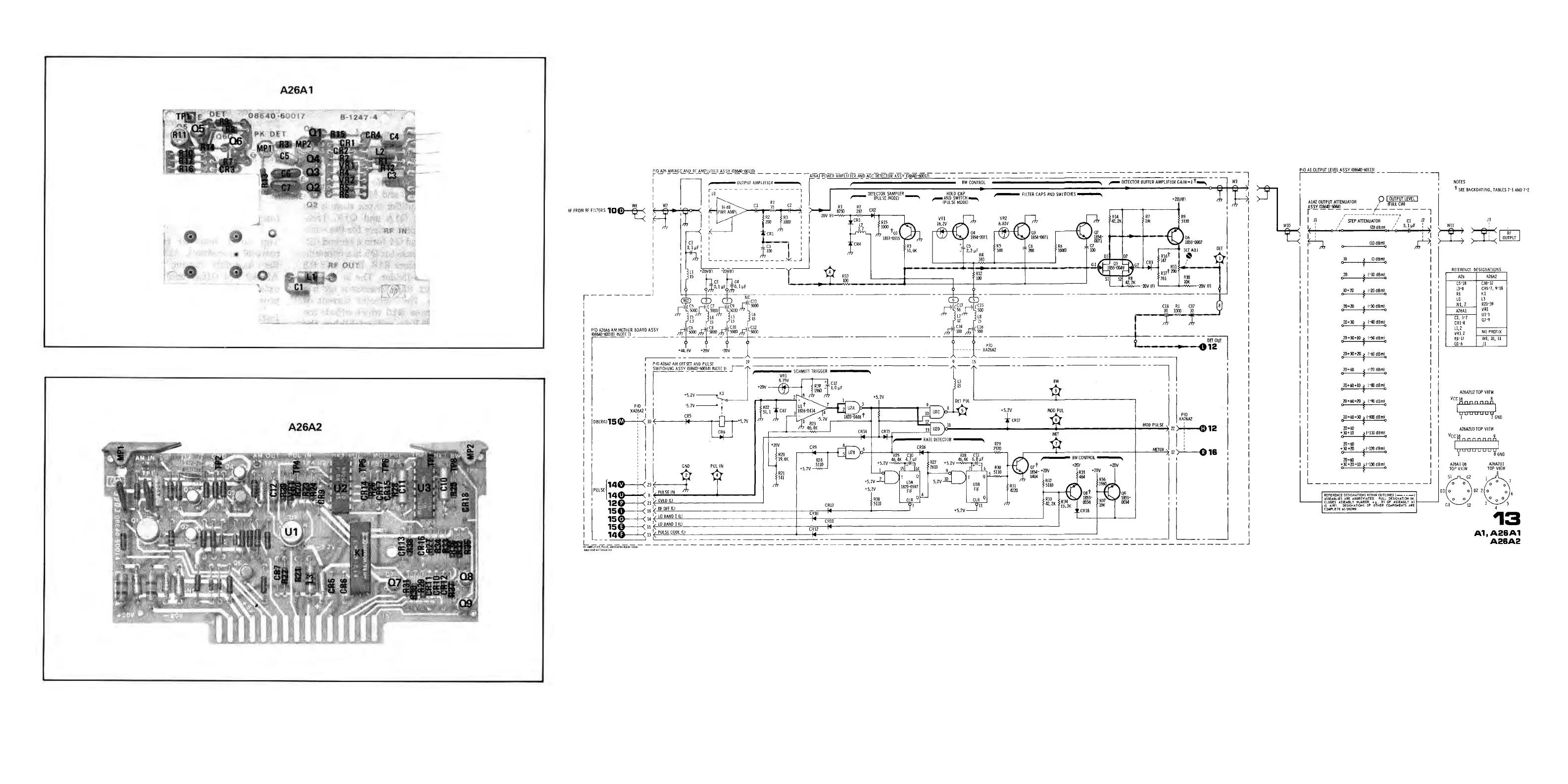

Figure 8-45. RF Amplifier, Pulse Switching, and Step Attenuator Schematic Diagram.
8-45
