Navigating and Securing the Interface
Special display characters and keys
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 4-9
Note: You always use the Control and Shift keys in combination with other keys. This
document represents key combinations as two characters separated by a hyphen, such as
Shift-T, which types the capital letter T. On the palmtop-controller, the main character
associated with the key is large and white, and the Shift- character associated with the key is
small and yellow.
Understanding menu numbers
The MAX has four built-in T1 or E1 lines and a V.35 serial port for WAN access. It also has six
expansion slots, which support additional bandwidth (BRI lines), AIM-port modules to support
videoconferencing, or digital modems to support analog modem connections over digital lines.

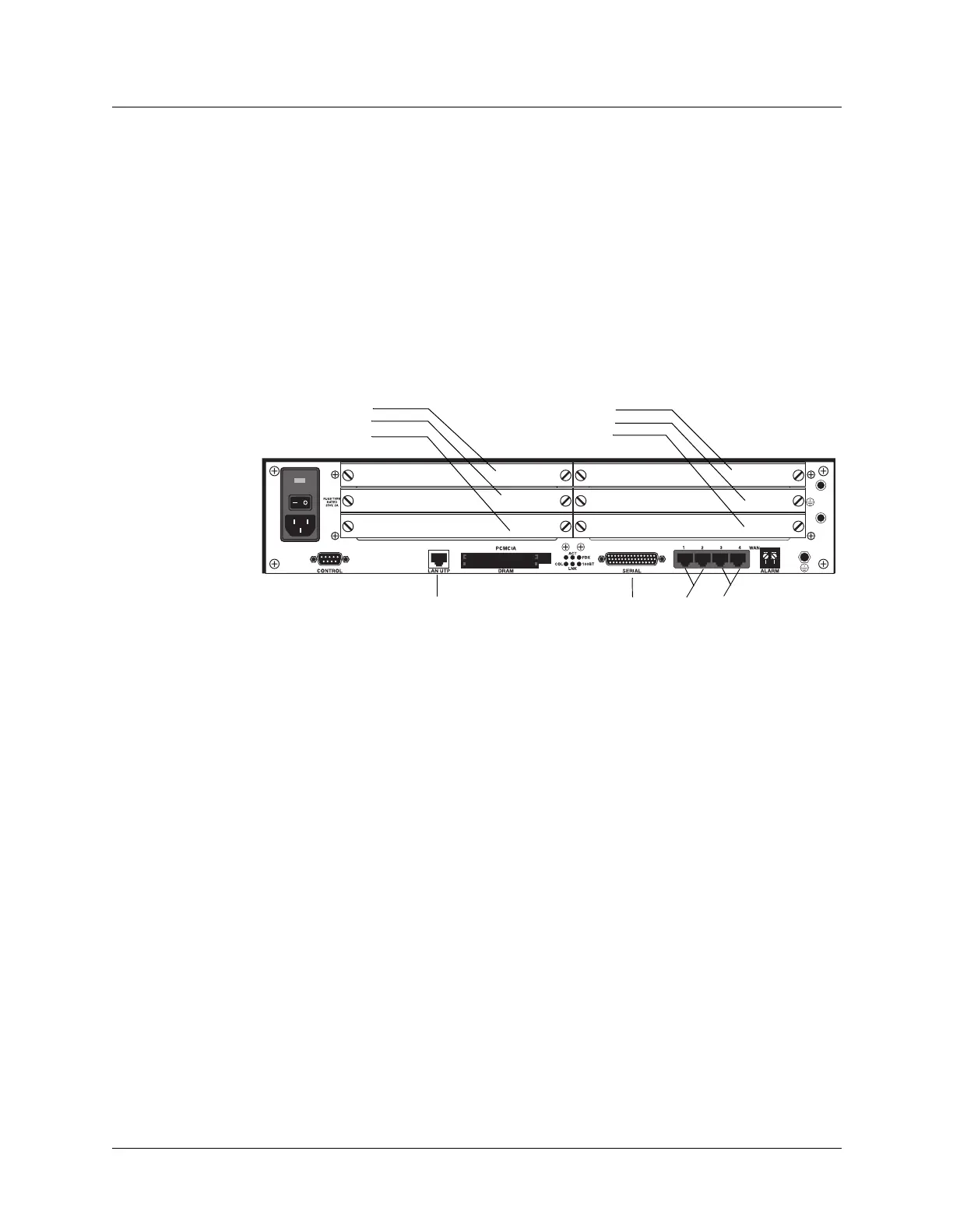

Figure 4-2. Slot and port numbering in the MAX 4000 series
The numbers in the VT100 menus relate to slot numbers in the MAX unit, which correspond to
actual expansion slots or virtual slots on the MAX unit’s motherboard. Following are the slot
assignments.
System slot
The system itself is assigned slot number 0 (menu 00-000). The System menu contains the
following profiles and submenus that are related to systemwide configuration and
maintenance:
00-000 System
00-100 Sys Config
00-200 Sys Diag
00-300 Security
00-400 Destinations
00-500 Dial Plan
Slot #8
Slot #7
Slot #6
Slot #5
Slot #4
Slot #3
Slot #9
Slot B
Slot #1
Slot #2
