Cables and Connectors
T1/PRI interface specifications
T1/PRI crossover cable: RJ-48C/DA
Before installing the RJ-48C/DA crossover cable, verify that the WAN interface transmits on
pins 1 and 9 and receives on pins 3 and 11. Figure C-5 and Table C-8 show the pinouts.

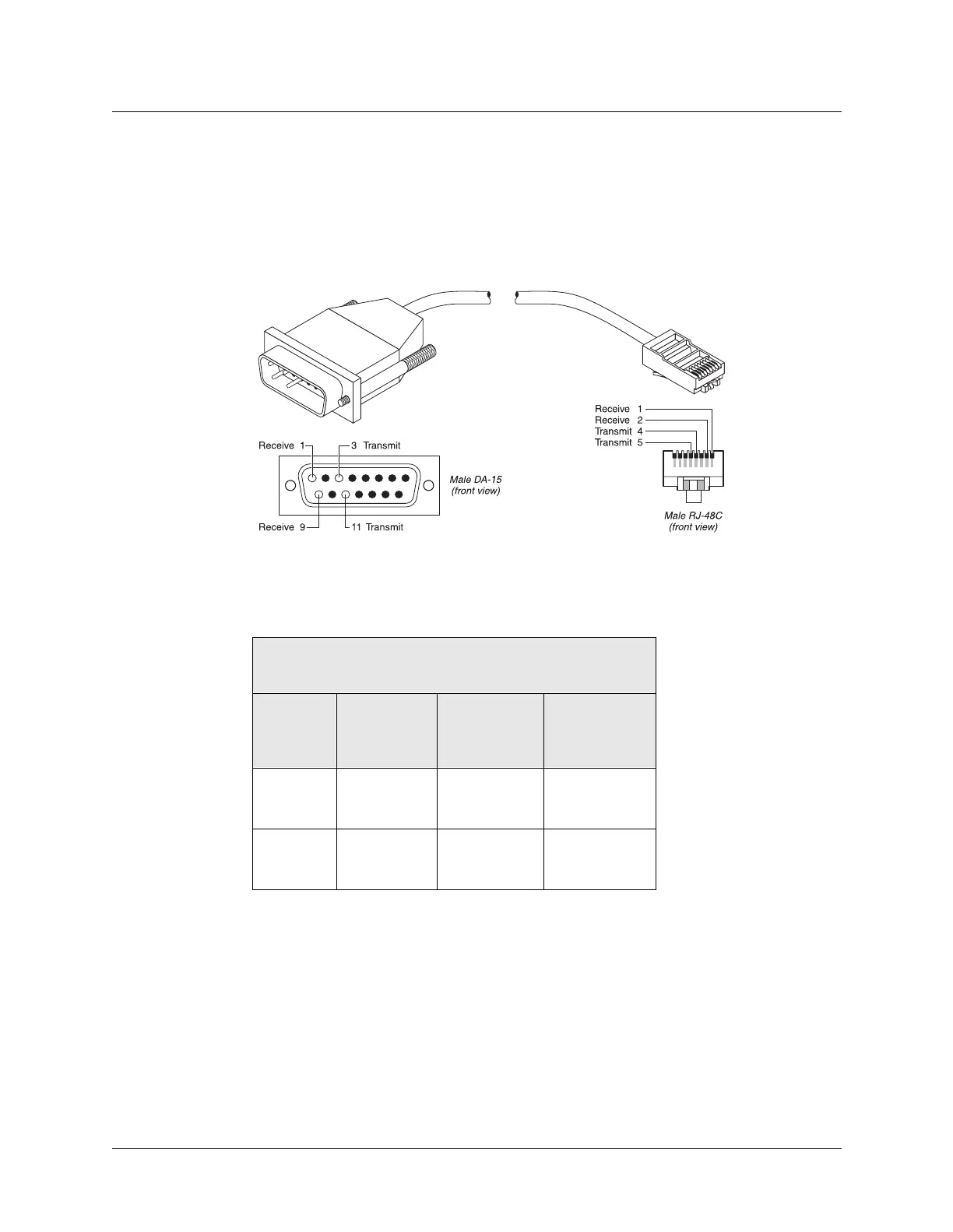

Figure C-5. RJ-48C/DA crossover cable
Table C-8. RJ-48C/DA crossover cable specifications
Model number DA15-S
Part number 2510-0065-001
Pair # Signal
(MAX)
Male
RJ-48C
(MAX)
Male DA-15P
(remote)
1 Receive 1
2
1
9
2Transmit5
4
3
11
