Cables and Connectors
Serial host interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-23
V.35 cabling
You can use V.35 cabling to connect the MAX to some Cisco routers, to a wide variety of serial
hosts, and to CLI and PictureTel codecs.
V.35/V.25 bis cable to Cisco
The V.35/V.25 bis cable connects the MAX to the V.35 port of a Cisco router that uses V.25 bis
dialing. Figure C-13 and Table C-20 show the V.35/V.25 bis cable pinouts.

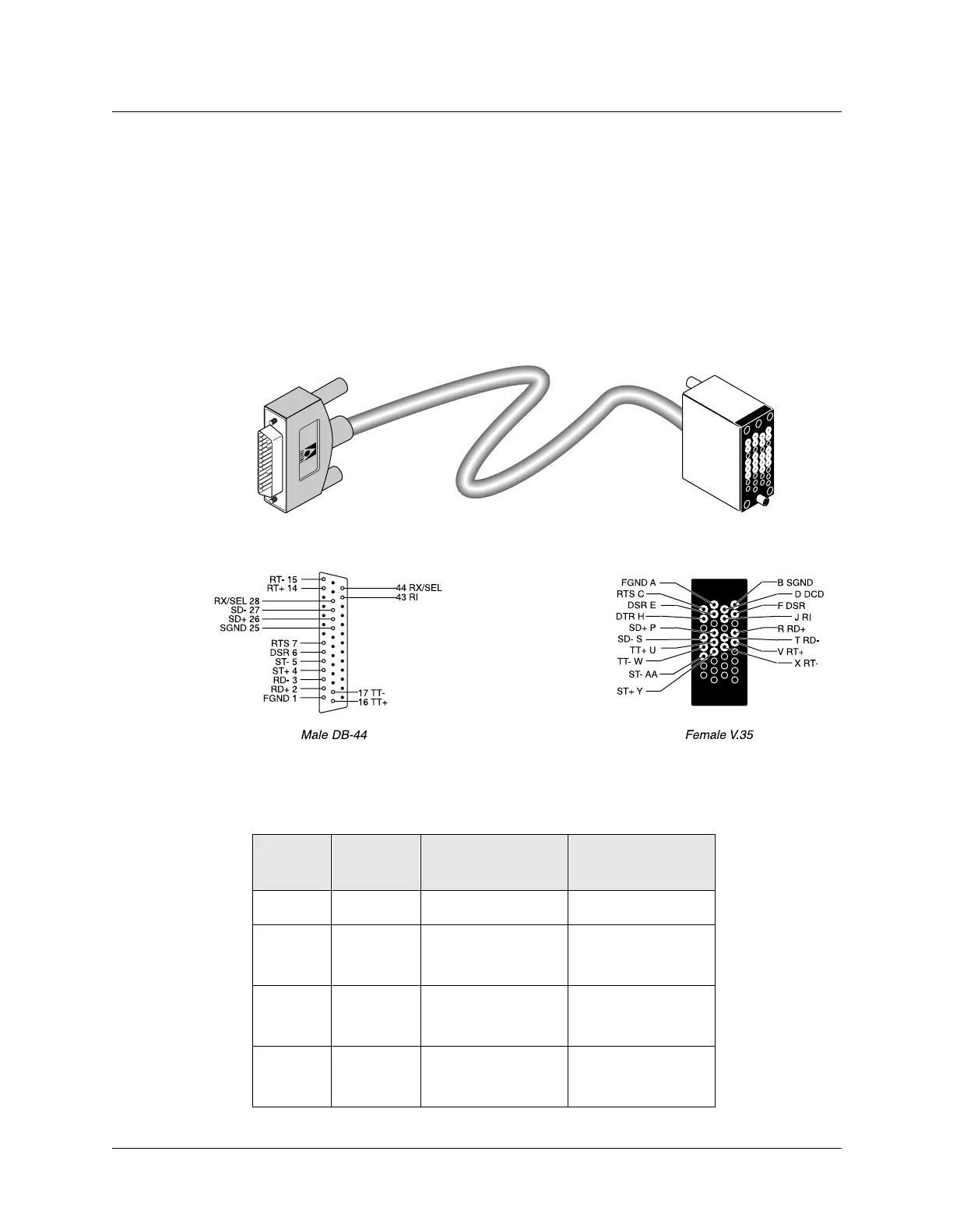

Figure C-13. V.35/V.25 bis cable to Cisco
Table C-20. Pinouts for V.35/V.25 bis cable to Cisco
Pair # Signal
(MAX)
MAX male DB-44
(MAX)
Host female V.35
1 FGND 1 A
2SD+
SD-
26
27
P
S
3RD+
RD-
2
3
R
T
4ST+
ST-
4
5
Y
AA
