C-18 Preliminary November 4, 1998 MAX 4000 Series Hardware Installation Guide
Cables and Connectors
E1/PRI interface specifications
E1/PRI straight-through cable: RJ-48C/Bantam
The WAN side of the RJ-48C/Bantam straight-through cable connects to dual bantam jacks.
Figure C-11 and Table C-16 show the pinouts.

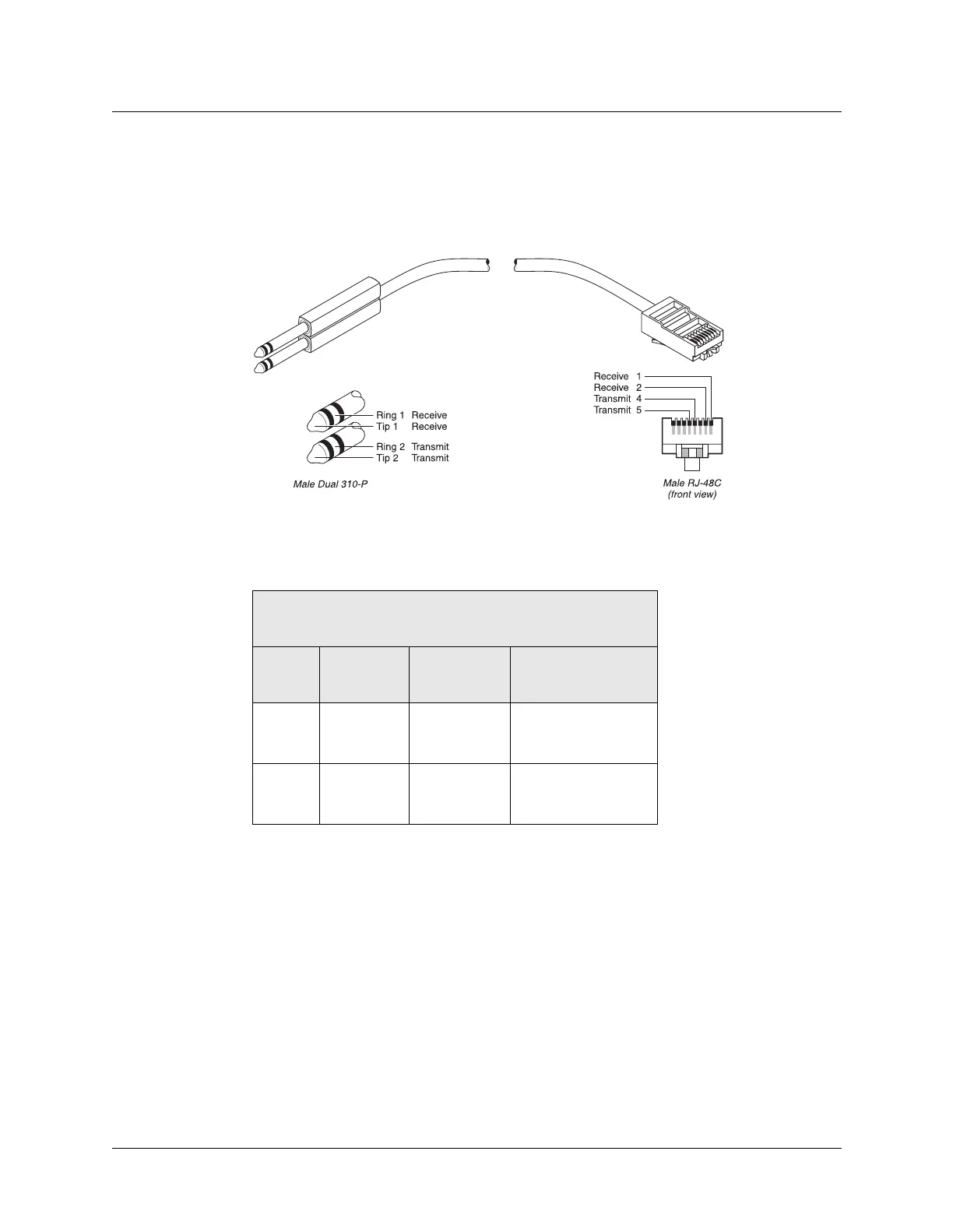

Figure C-11. RJ-48C/Bantam straight-through cable
Table C-16. RJ-48C/Bantam straight-through cable specifications
Model number DBNT-RJ-45
Part number 2510-0066-001
Pair # Signal
(MAX)
Male RJ-48
(MAX)
Male Dual-310-P
(remote)
1 Receive 1
2
Tip 1
Ring 1
2Transmit5
4
Tip 2
Ring 2
