Check the line’s status
After the T1/PRI provider has established service, observe the MAX unit’s front-panel
indicator lights (LEDs) as illustrated in Figure 3-5.

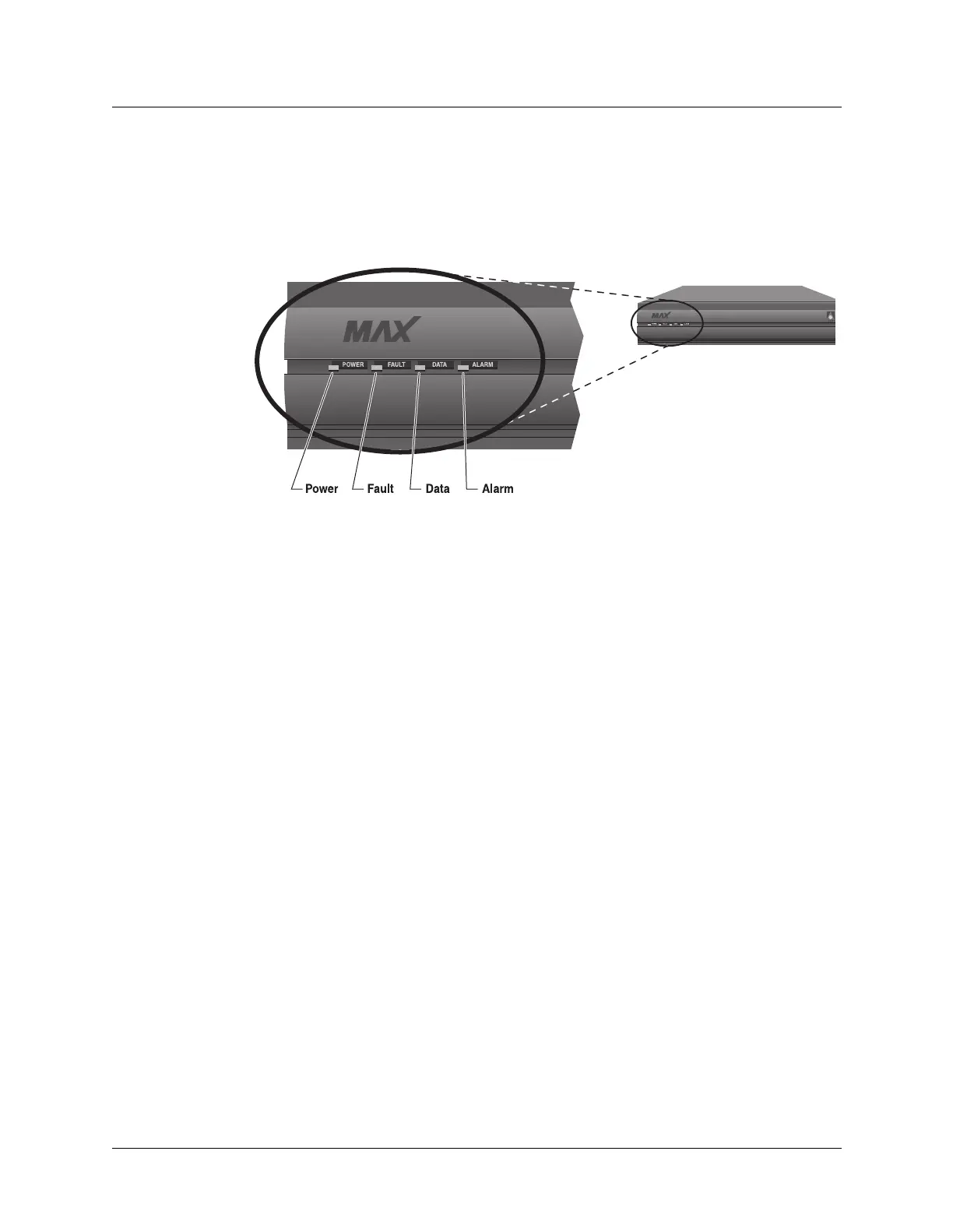

Figure 3-5. Front-panel indicator lights
Is the Power LED on and are the Fault, Data, and Alarm LEDs off?
• If Yes: Continue on to “Configuring the Ethernet profile.”
• If No: The connection to the T1/PRI line has failed. If the Alarm LED is on, check your
cabling. Also verify with your T1/PRI line provider that you have the correct Framing
Mode, Encoding, Length, and Buildout values.
Re-entering T1 line parameters
If you must re-enter the parameters for your T1 line, make sure you have Full Access
privileges and return all parameter values to their defaults as listed in the following steps:
1 At the Main Edit Menu, press Ctrl-D.
The Main Edit Menu’s DO menu appears.
2 Select P (Password).
3 Press Enter or the Right-Arrow key.
The Security Profile menu appears.
4 Select Full Access.
5 Press Enter or the Right-Arrow key.
A password entry field appears.
6 Enter your password within the brackets.
7 Press Enter or the Right-Arrow key.
If your password is accepted, you have Full Access privileges.
8 Press Enter.
The Main Edit Menu reappears.
To Next Page
