C-8 Preliminary November 4, 1998 MAX 4000 Series Hardware Installation Guide
Cables and Connectors
T1/PRI interface specifications
T1/PRI straight-through cable: RJ-48C/RJ-48C
Before installing the RJ-48C/RJ-48C straight-through cable, verify that the WAN interface
transmits on pins 2 and 1 and receives on pins 5 and 4. Figure C-3 and Table C-6 show the
pinouts.

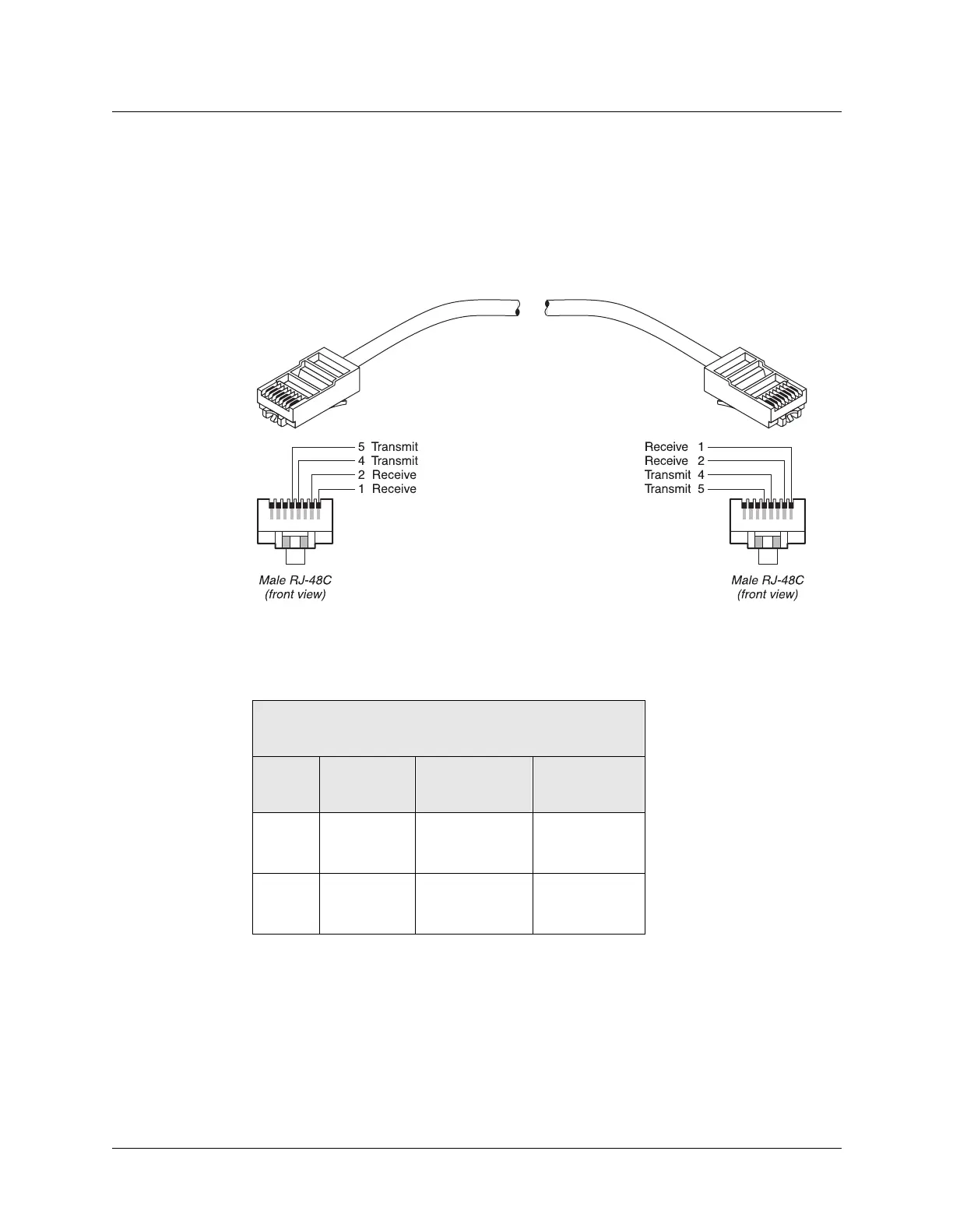

Figure C-3. RJ-48C/RJ-48C straight-through cable specifications
Table C-6. RJ-48C/RJ-48C straight-through cable specifications
Model number RJ-48C-S
Part number 2510-0064-001
Pair # Signal
(MAX)
Male RJ-48C
(MAX)
Male RJ-48C
(remote)
1 Receive 1
2
1
2
2Transmit5
4
5
4
