Cables and Connectors
Serial host interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-31
V.35/RS-366 cable to PictureTel
The V.35/RS-366 cable connects the MAX to the V.35 port of the PictureTel codec with
support for RS-366 dialing. Figure C-17 and Table C-24 show the V.35/RS-366 cable pinouts.

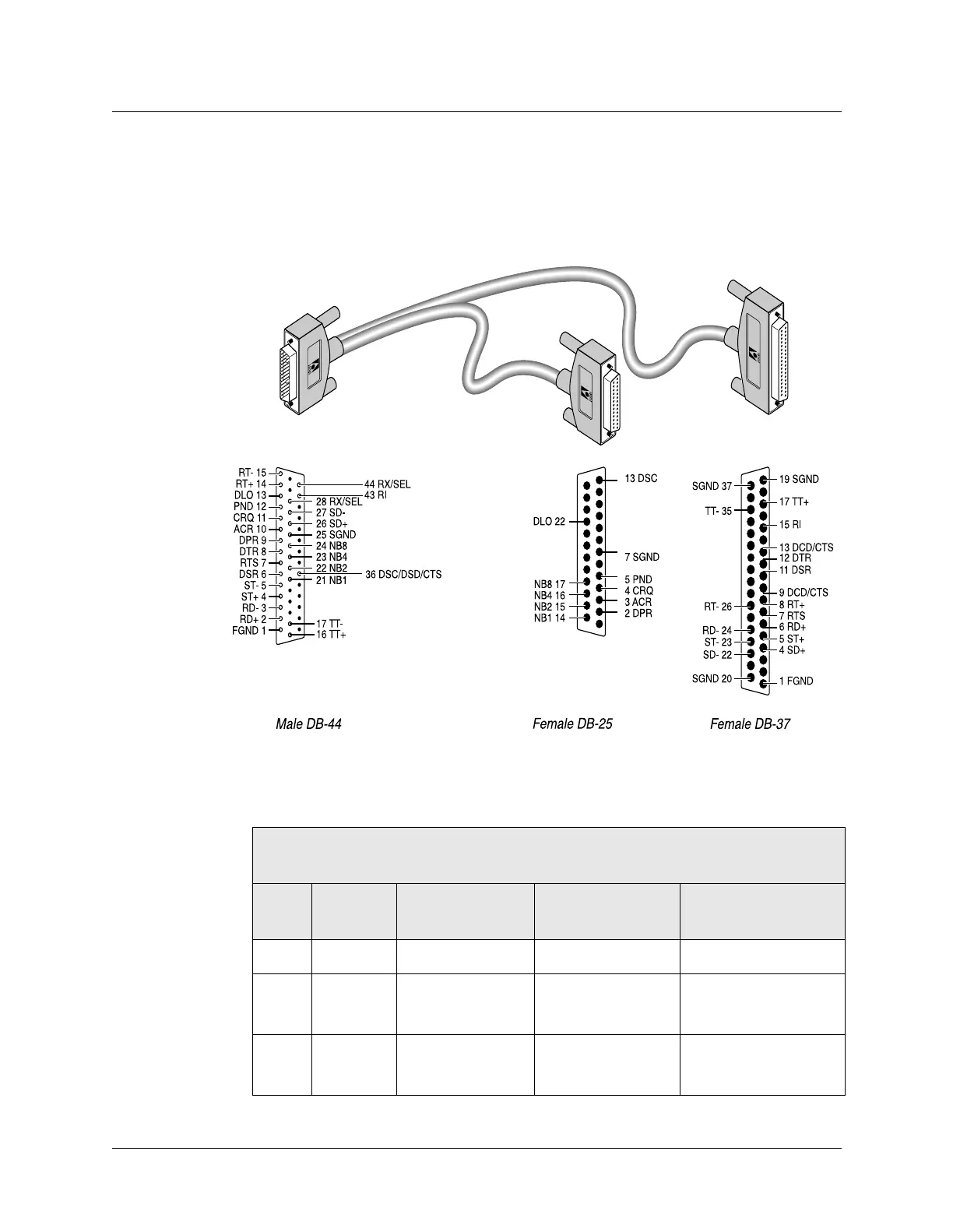

Figure C-17. V.35/RS-366 cable to PictureTel
Table C-24. Pinouts for V.35/RS-366 cable to PictureTel
Model number MBHD-449PT
Part number 2510-0093-001
Pair # Signal
(MAX)
MAX male DB-44
(MAX)
Host female DB-37 RS-366 female DB-25
1 FGND 1 1
2SD+
SD-
26
27
4
22
3RD+
RD-
2
3
6
24
