Ascend T1 MAX series User Manual

Cables and Connectors
Serial host interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-29
V.35/RS-366 cable to CLI
The V.35/RS-366 cable connects the MAX to the V.35 port of the Compression Labs
Rembrandt II codec with support for RS-366 dialing. Figure C-16 and Table C-23 show the
V.35/RS-366 cable pinouts.

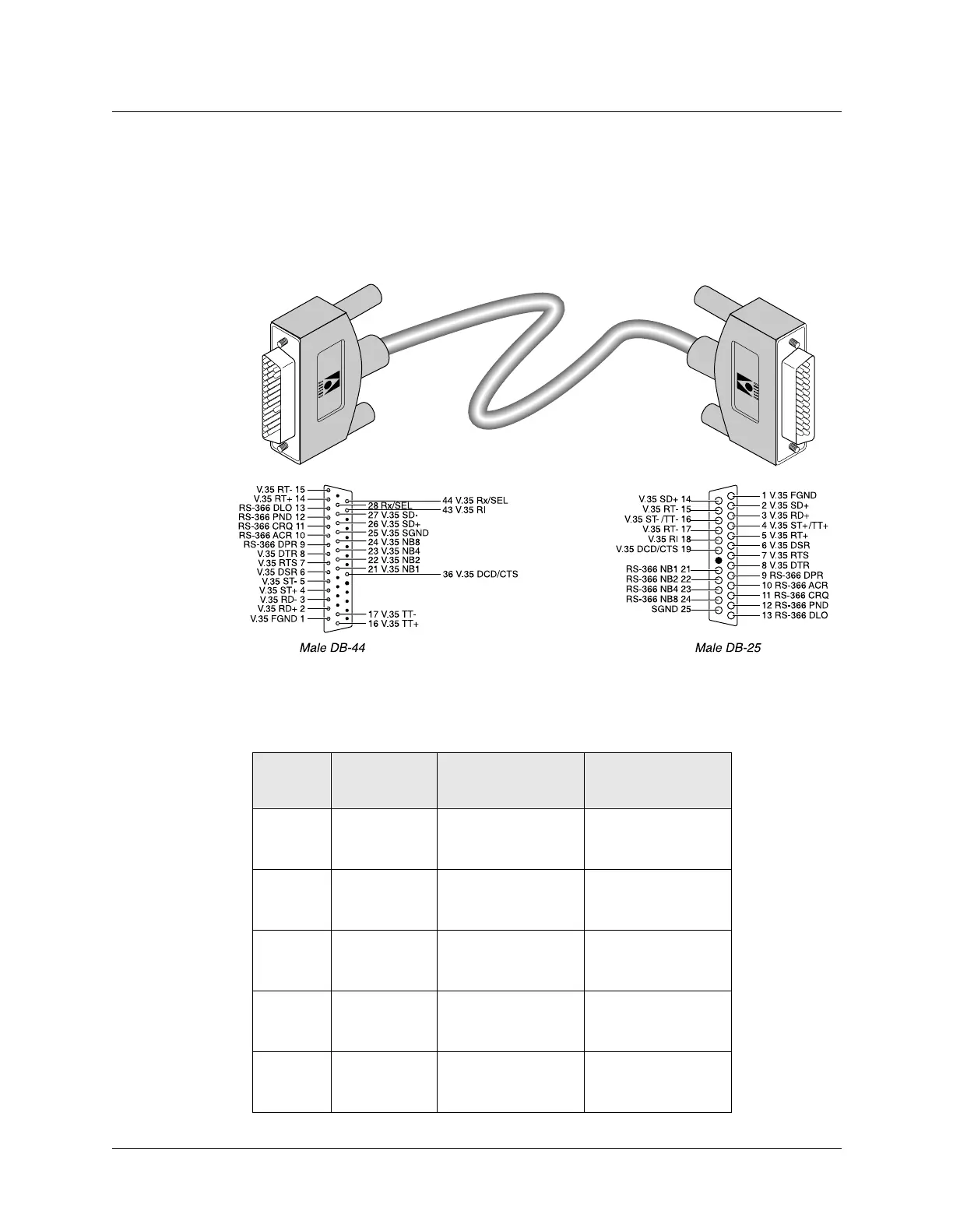

Figure C-16. V.35/RS-366 cable to CLI codec
Table C-23. Pinouts for V.35/RS-366 cable to CLI
Pair # Signal
(MAX)
MAX male DB-44
(MAX)
Host V.35/RS-366
male DB-25
1V.35 FGND
V.35 DTR
1
8
1
8
2V.35 SD+
V.35 SD-
26
27
2
14
3V.35 RD+
V.35 RD-
2
3
3
15
4V.35 ST+
V.35 ST-
4
5
4
16
5V.35 RT+
V.35 RT-
14
15
5
17
