Quickstart
Gathering configuration information
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 3-27

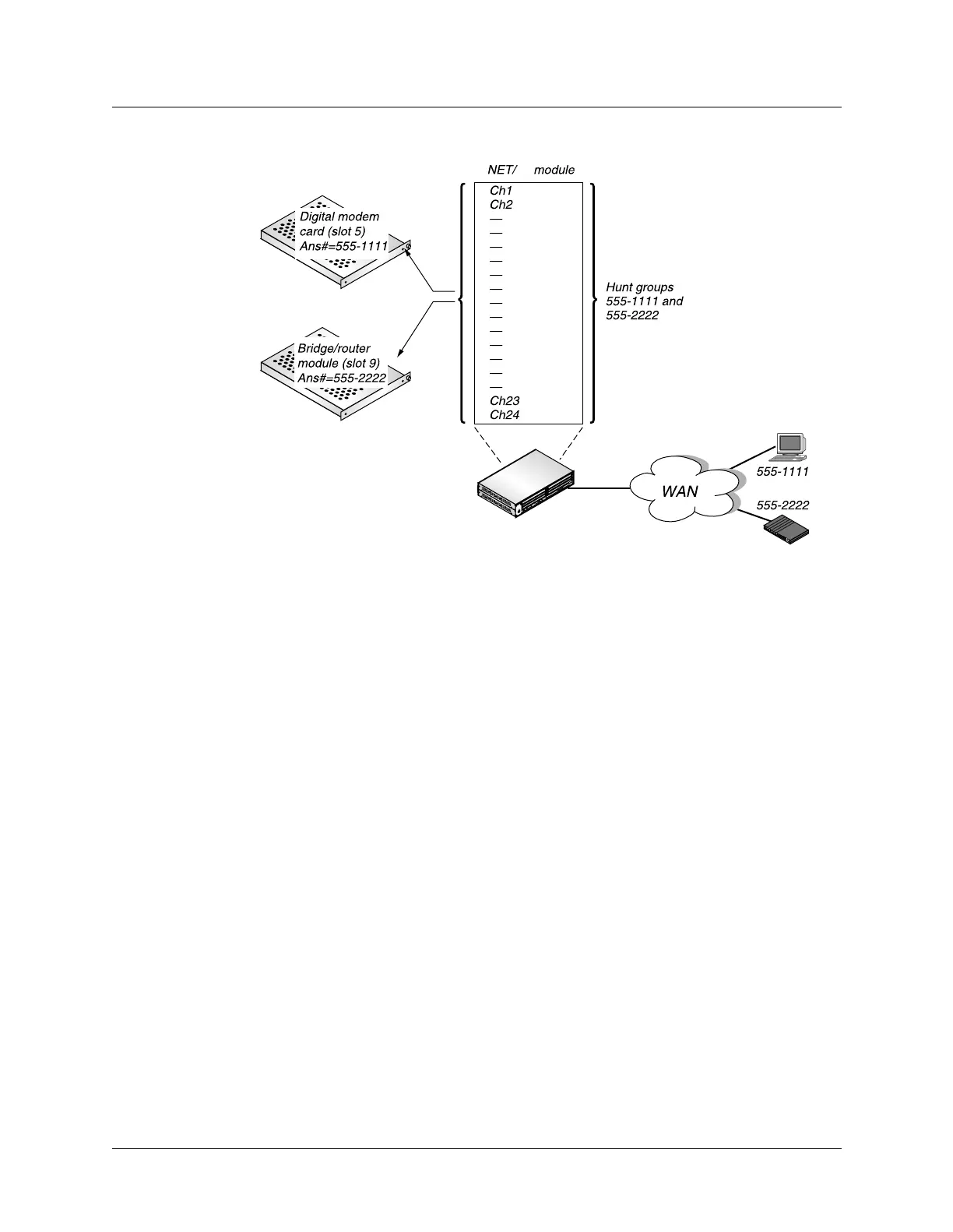

Figure 3-9. Incoming call routing using ISDN signaling and hunt groups
Gathering configuration information
Before you start configuring the MAX, gather the following configuration information about
your network setup:
• E1 line information
• Connection profile information
• Ethernet profile information
E1 line information
Table 3-6 lists the parameters you use for configuring the MAX E1 line. As you gather the
necessary information, you can record your settings in the middle column. The parameters are
in the Net/E1 > Line Config > slot profile > Line N subprofile. For this Quickstart
configuration, you can leave all other Line Config parameters at their default values.
For detailed information about the parameters in the following table, see the Reference Guide
for your MAX.
E1
