Cables and Connectors
Serial host interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-37
RS-449 cable to generic serial host
The RS-449 cable for connection to generic serial hosts connects the MAX to the RS-449 ports
of a wide variety of equipment. A female-to-male DB-37 gender changer is included when you
order the cable. Figure C-20 and Table C-27 show the RS-449 cable pinouts.

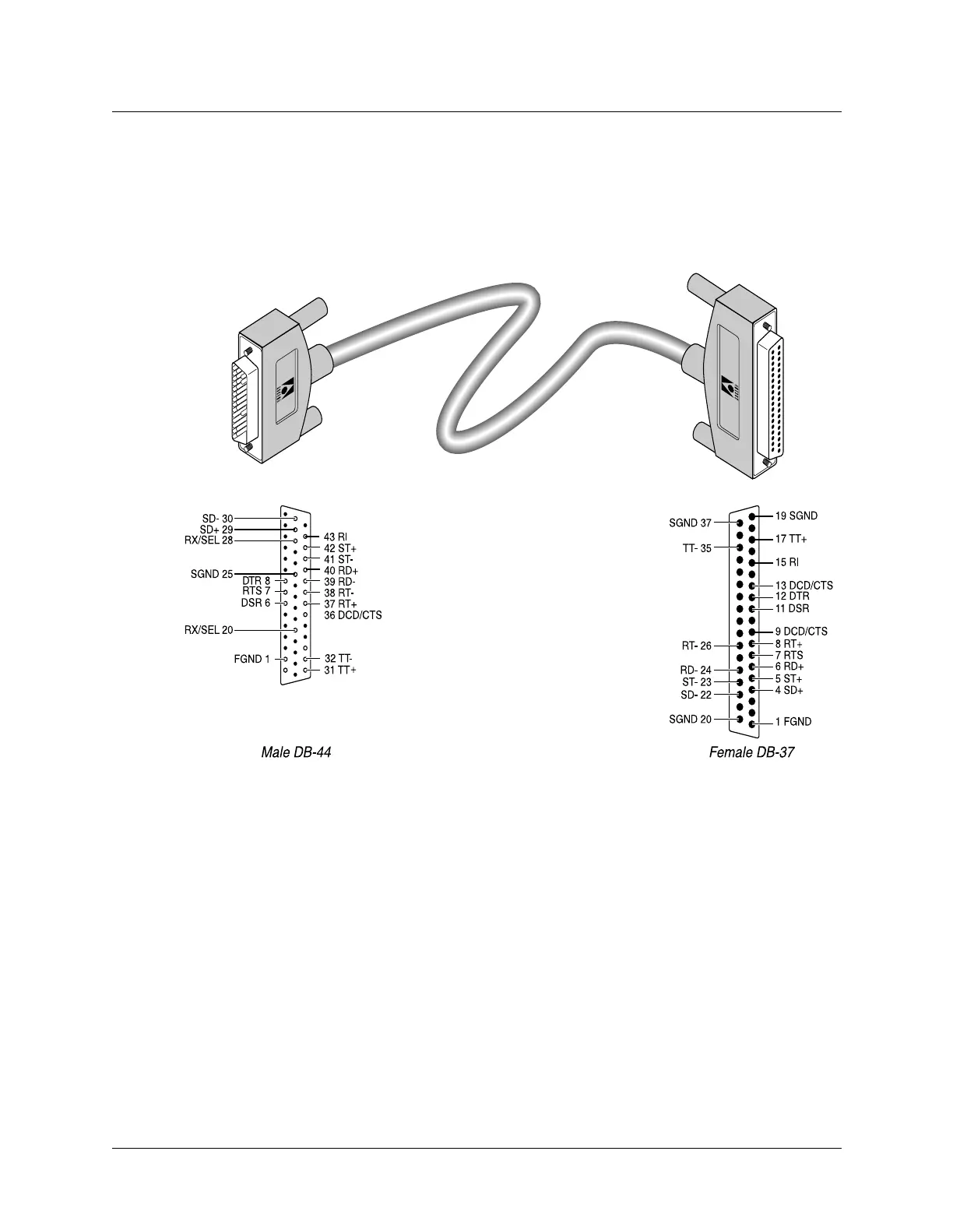

Figure C-20. RS-449 cable to generic serial host
