RS-449/RS-366 cable to generic serial host
The RS-449/RS-366 cable connects the MAX to the RS-449 ports of a wide variety of
equipment that uses RS-366 dialing. A female-to-male DB-37 gender changer is included
when you order the cable. Figure C-19 and Table C-26 show the RS-449/RS-366 cable
pinouts.

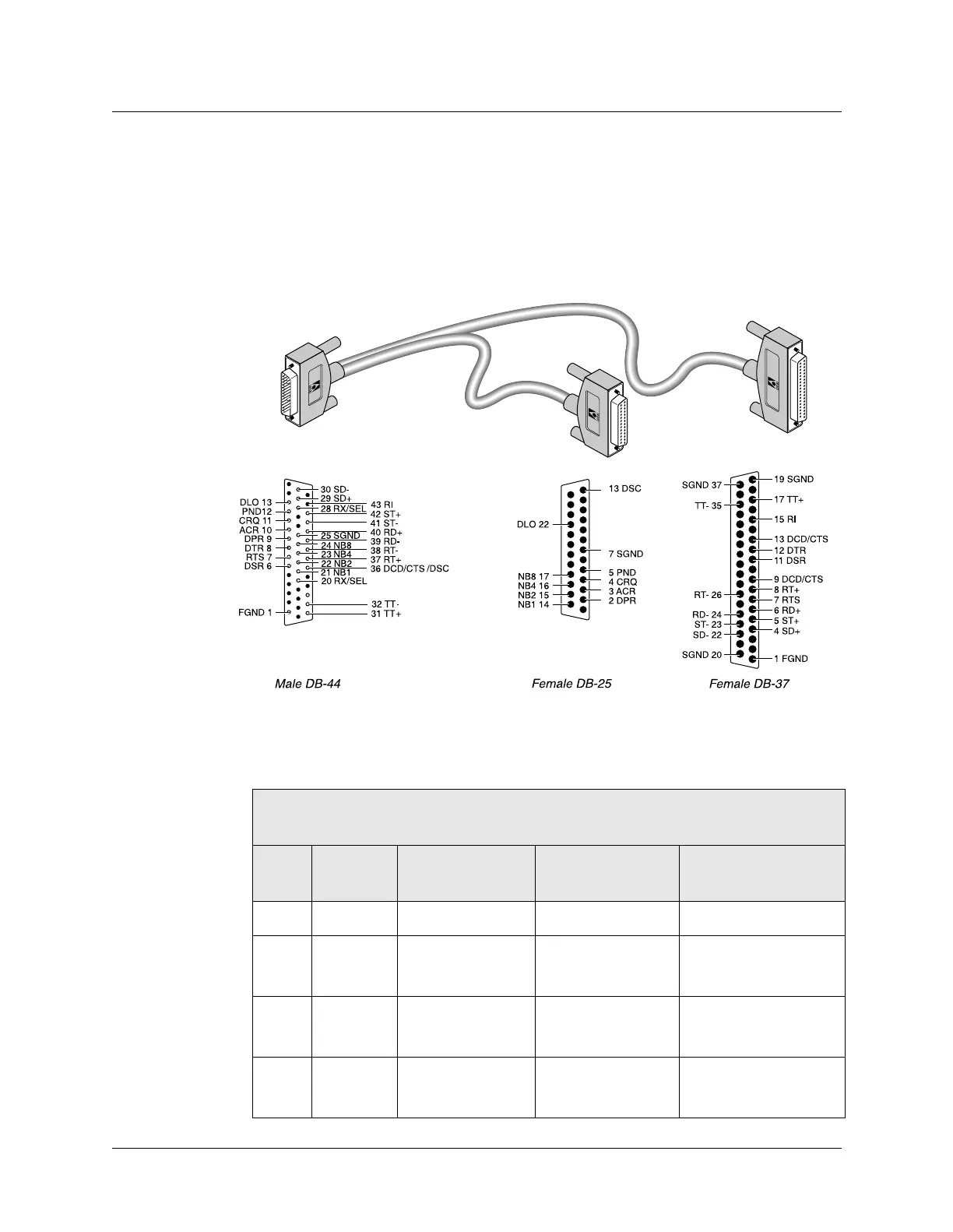

Figure C-19. RS-449/RS-366 cable to generic serial host
Table C-26. Pinouts for RS-449/RS-366 cable to generic serial host
Model number MBHD-449-366
Part number 2510-0078-001
Pair # Signal
(MAX)
MAX male DB-44
(MAX)
Host female DB-37 RS-366 female DB-25
1 FGND 1 1
2SD+
SD-
29
30
4
22
3RD+
RD-
40
39
6
24
4ST+
ST-
42
41
5
23
