Cables and Connectors
User interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-3
Palmtop port and cabling pinouts for a control-monitor

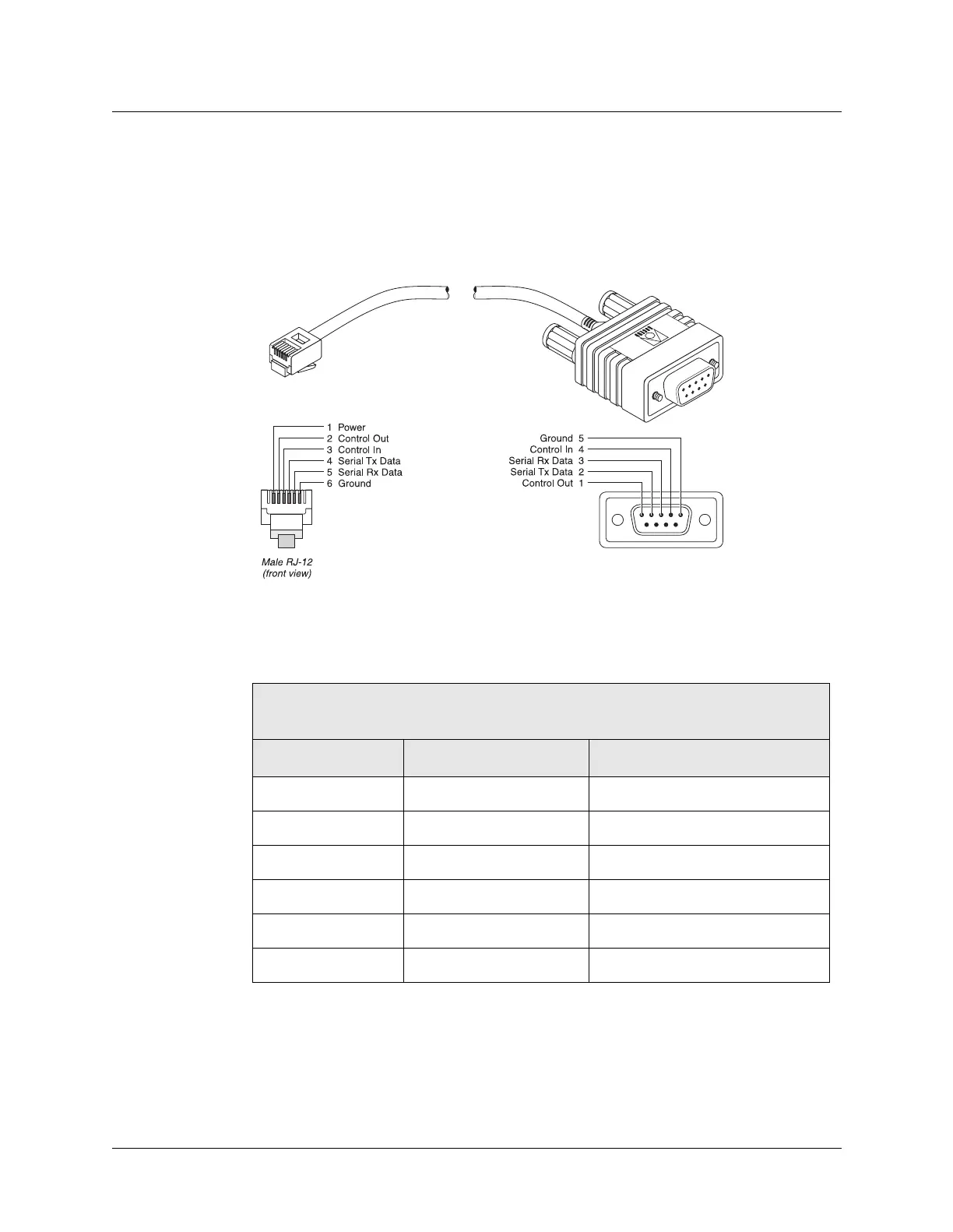

Figure C-1 illustrates the MIF palmtop port and cabling pinouts for a control-monitor.
Figure C-1. Control-monitor and MIF palmtop port and cable
Table C-3 lists the specifications you need to adapt the palmtop port for use as a
control-monitor or MIF interface through a VT100 terminal.
Table C-3.Control-monitor and MIF palmtop port and cabling pinouts
Model number HHT-VT100
Part number 2510-0088-001
Signal (MAX) MAX RJ-12 pin number VT100 female DE-9 pin number
Power (+5V) 1 not connected
Control Out 2 1
Control In 3 4
Serial Transmit Data 4 2
Serial Receive Data 5 3
Ground 6 5
