V.35 cable to generic serial host
The V.35 cable for connection to generic serial hosts connects the MAX to the V.35 ports of a
wide variety of equipment. A female-to-male V.35 gender changer is included when you order
the cable. Figure C-14 and Table C-21 show the V.35 cable pinouts.

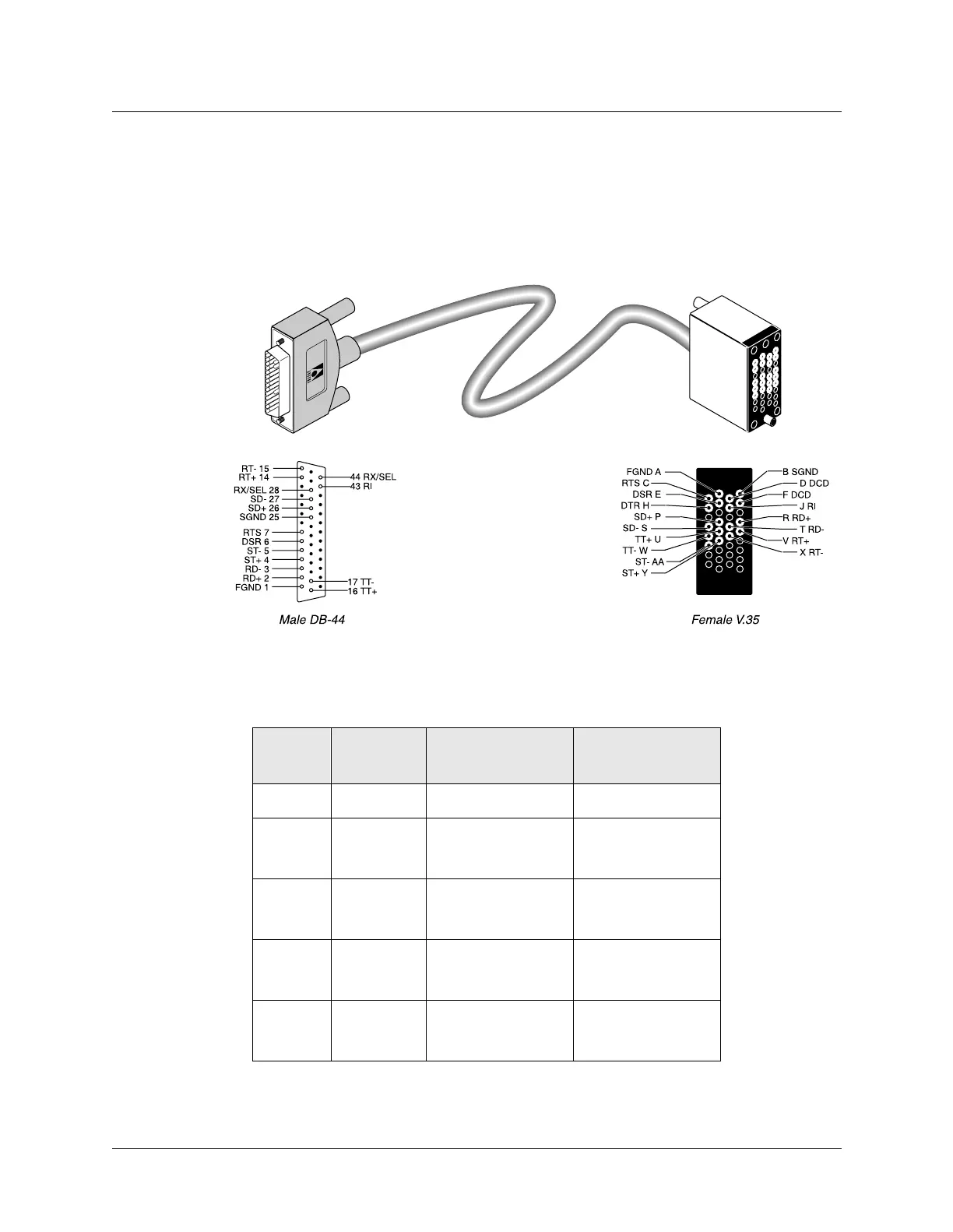

Figure C-14. V.35 cable to generic serial host
Table C-21. Pinouts for V.35 cable to generic serial host
Pair # Signal
(MAX)
MAX male DB-44
(MAX)
Host female V.35
1 FGND 1 A
2SD+
SD-
26
27
P
S
3RD+
RD-
2
3
R
T
4ST+
ST-
4
5
Y
AA
5RT+
RT-
14
15
V
X
