Cables and Connectors
E1/PRI interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-19
E1/PRI straight-through cable: MAX 6000 BNC to RJ-48C
The MAX 6000 BNC to RJ-48C cable adapts a modular E1 port on the MAX to coaxial cable
E1 lines. You must also set the jumpers within the MAX for 50 ohm service. Figure C-12 and
Table C-17 show the pinouts.

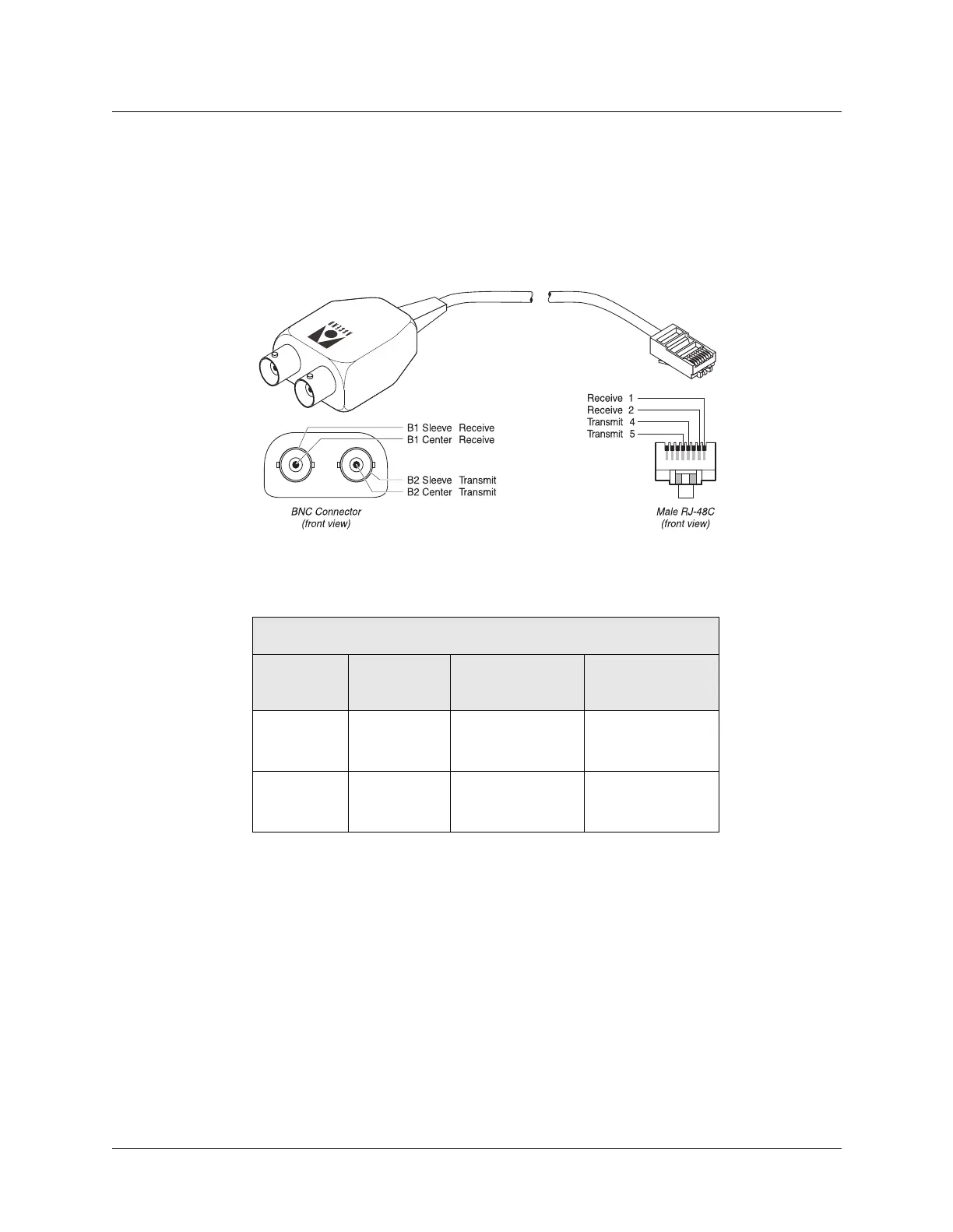

Figure C-12. MAX 6000 BNC to RJ-48C straight-through cable
Table C-17. MAX 6000 BNC to RJ-48C straight-through cable specifications
Part number 2510-0272-001
Pair # Signal
(MAX)
Male RJ-48C
(MAX)
Male Dual-BNC
(remote)
1Transmit4
5
B1 Sleeve
B1 Center
2 Receive 1
2
B2 Sleeve
B2 Center
