Cables and Connectors
E1/PRI interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-17
E1/PRI crossover cable: RJ-48C/DA
Before installing the RJ-48C/DA cable, verify that the WAN interface transmits on pins 1 and
9 and receives on pins 3 and 11. Figure C-10 and Table C-15 show the pinouts.

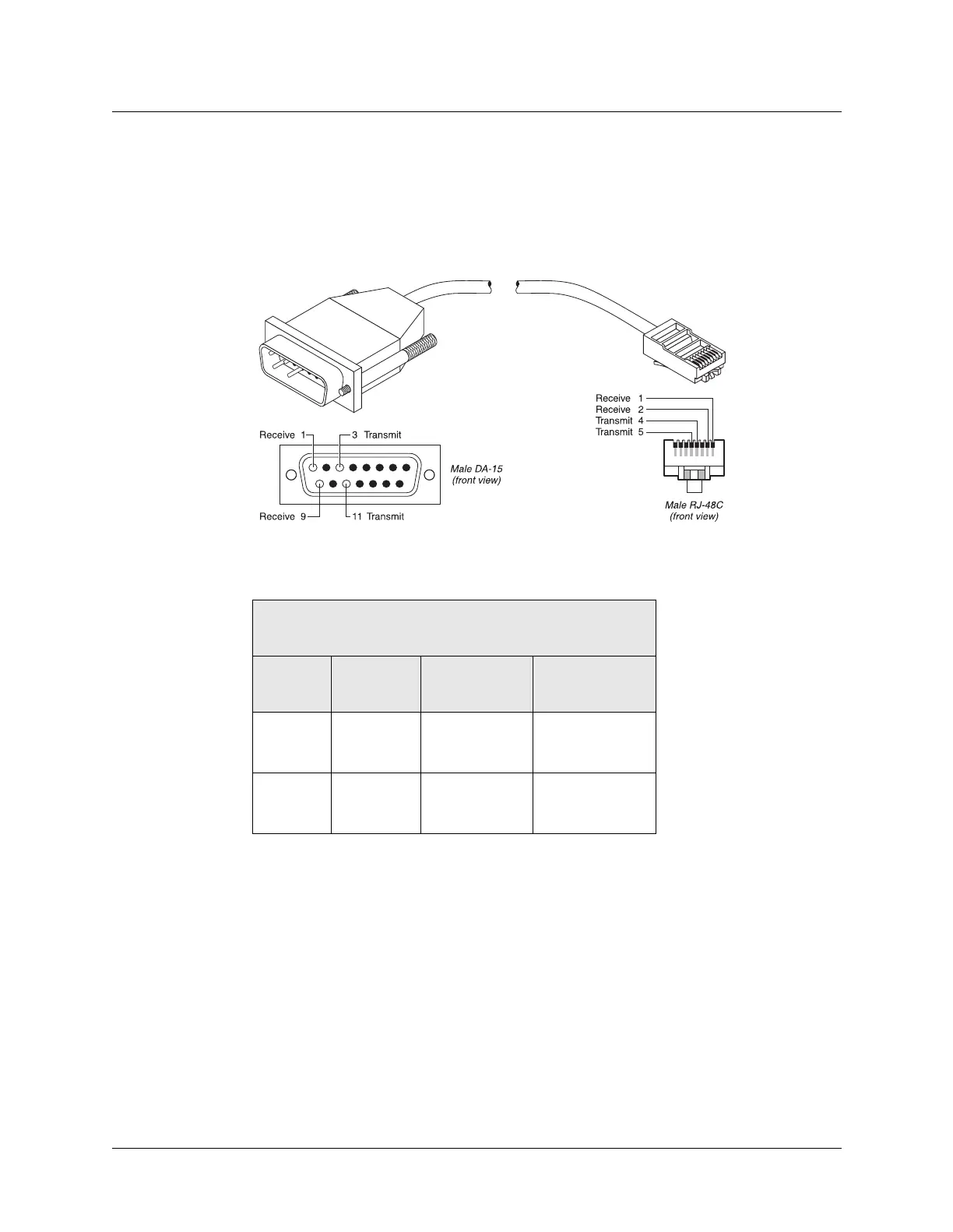

Figure C-10. RJ-48C/DA crossover cable
Table C-15. RJ-48C/DA crossover cable specifications
Model number DA15-S
Part number 2510-0065-001
Pair # Signal
(MAX)
Male RJ-48C
(MAX)
Male DA-15P
(remote)
1 Receive 1
2
1
9
2Transmit5
4
3
11
