T1/PRI straight-through cable: RJ-48C/Bantam
The WAN side of the RJ-48C/Bantam straight-through cable connects to dual bantam jacks.

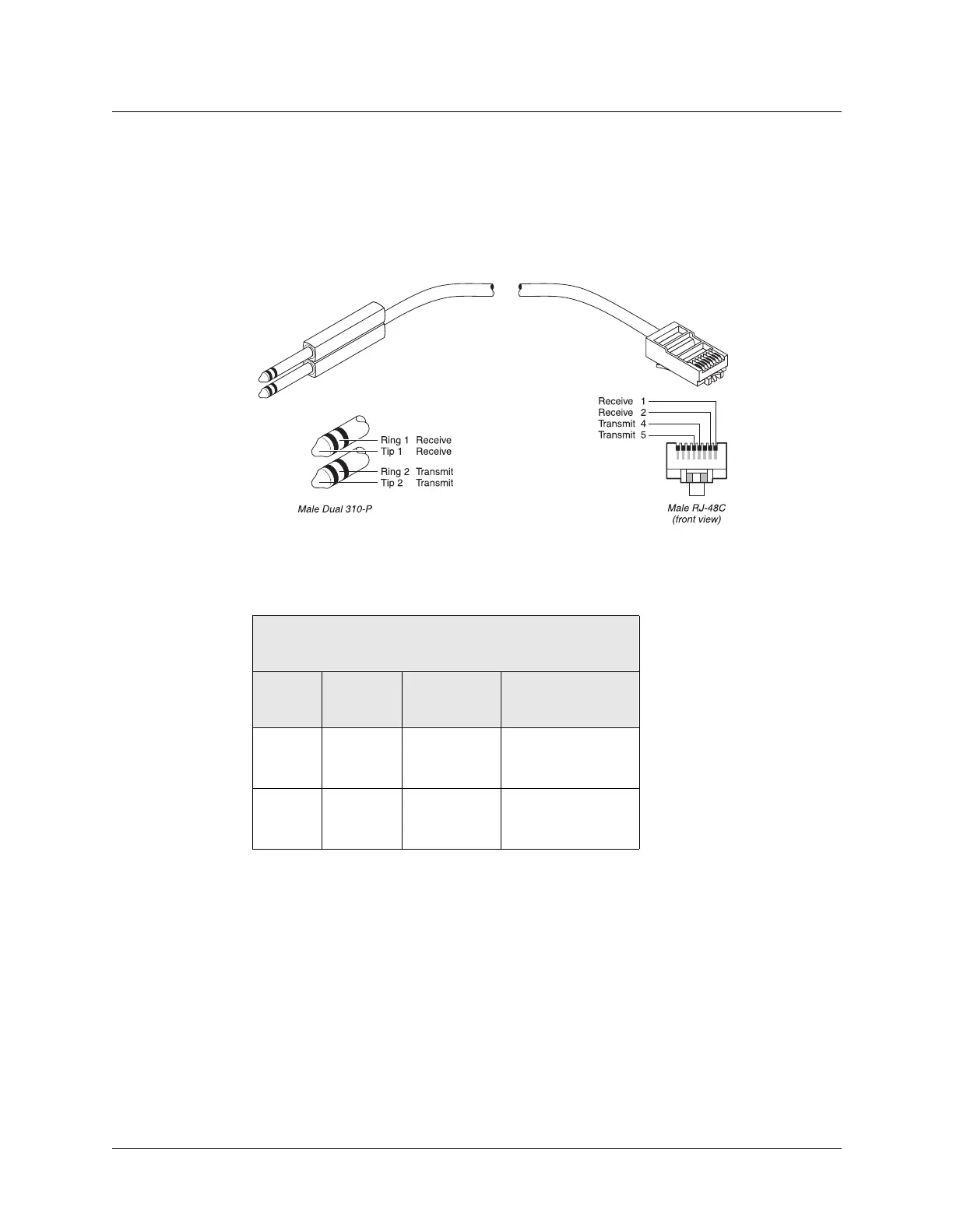

Figure C-6 and Table C-9 show the pinouts.
Figure C-6. RJ-48C/Bantam straight-through cable
Table C-9. RJ-48C/Bantam straight-through cable specifications
Model number DBNT-RJ45
Part number 2510-0066-001
Pair # Signal
(MAX)
Male RJ-48
(MAX)
Male Dual-310- P
(remote)
1 Receive 1
2
Tip 1
Ring 1
2Transmit5
4
Tip 2
Ring 2
