Cables and Connectors
T1/PRI interface specifications
MAX 4000 Series Hardware Installation Guide Preliminary November 4, 1998 C-9
T1/PRI straight-through cable: RJ-48C/DA-15
Before installing the RJ-48C/DA-15 straight-through cable, verify that the WAN interface
transmits on pins 3 and 11 and receives on pins 1 and 9. Figure C-4 and Table C-7 show the
pinouts.

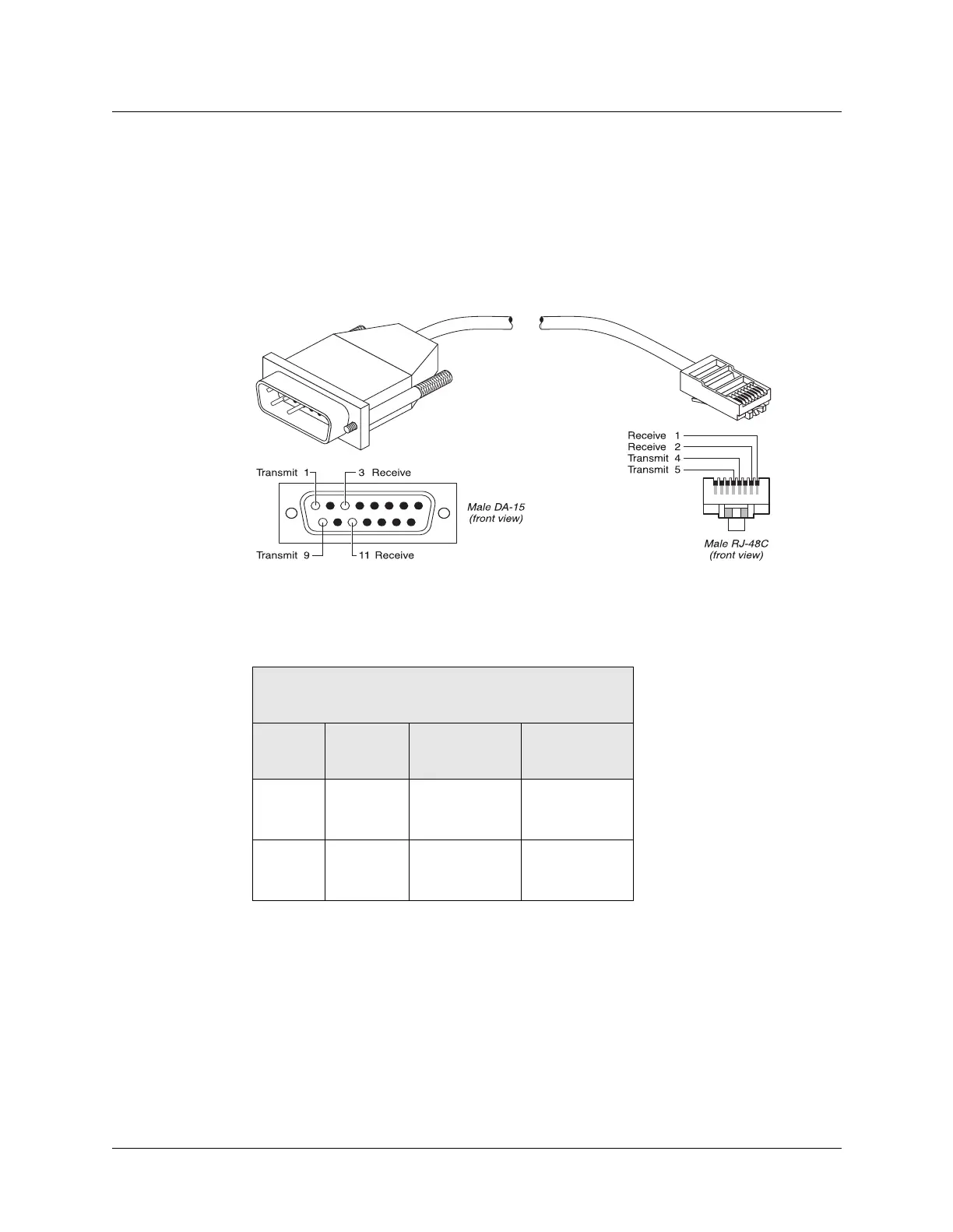

Figure C-4. RJ-48C/DA-15 straight-through cable
Table C-7. RJ-48C/DA-15 straight-through cable specifications
Model number DA15-X
Part number 2510-0082-001
Pair # Signal
(MAX)
Male RJ-48C
(MAX)
Male DA-15P
(remote)
1 Receive 1
2
3
11
2Transmit5
4
1
9
