ASCOM IP-DECT Base Station - Use the Cable Ducts

TD 92372GB
2007-06-18/ Ver. E
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
15
Figure 19.
Tied wrongly
012

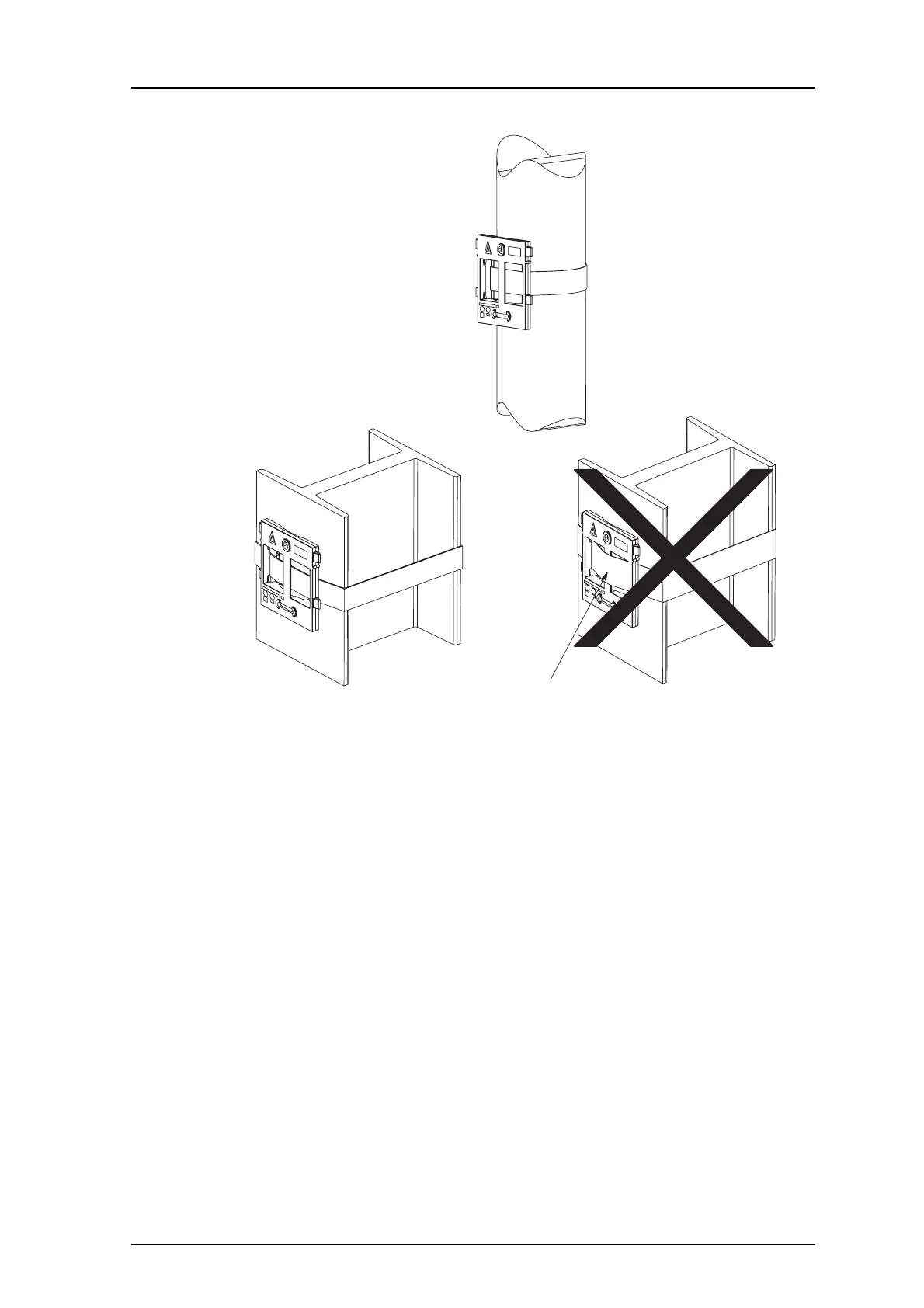

Figure 5. Fixing the mounting bracket to a pole or beam
4.2.4 Use the Cable Ducts
When the base station is mounted to the wall, cable ducts can be used to route the wiring
through.
1 Fix the cable duct to the wall in one of the positions shown in figure 6 on page 16.
