ASCOM IP-DECT Base Station - Product Descriptions; IP-DECT Base Station

TD 92372GB
2007-06-18/ Ver. E
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
2
2 Description
This section gives a general description of the IP-DECT Base Station, IP-DECT Gateway and
DECT Base Starion.
2.1 IP-DECT Base Station
The following versions of the IPBS are available:
• IPBS with Internal antenna
• IPBS with External antennas
2.1.1 IP-DECT Base Station with Internal Antenna

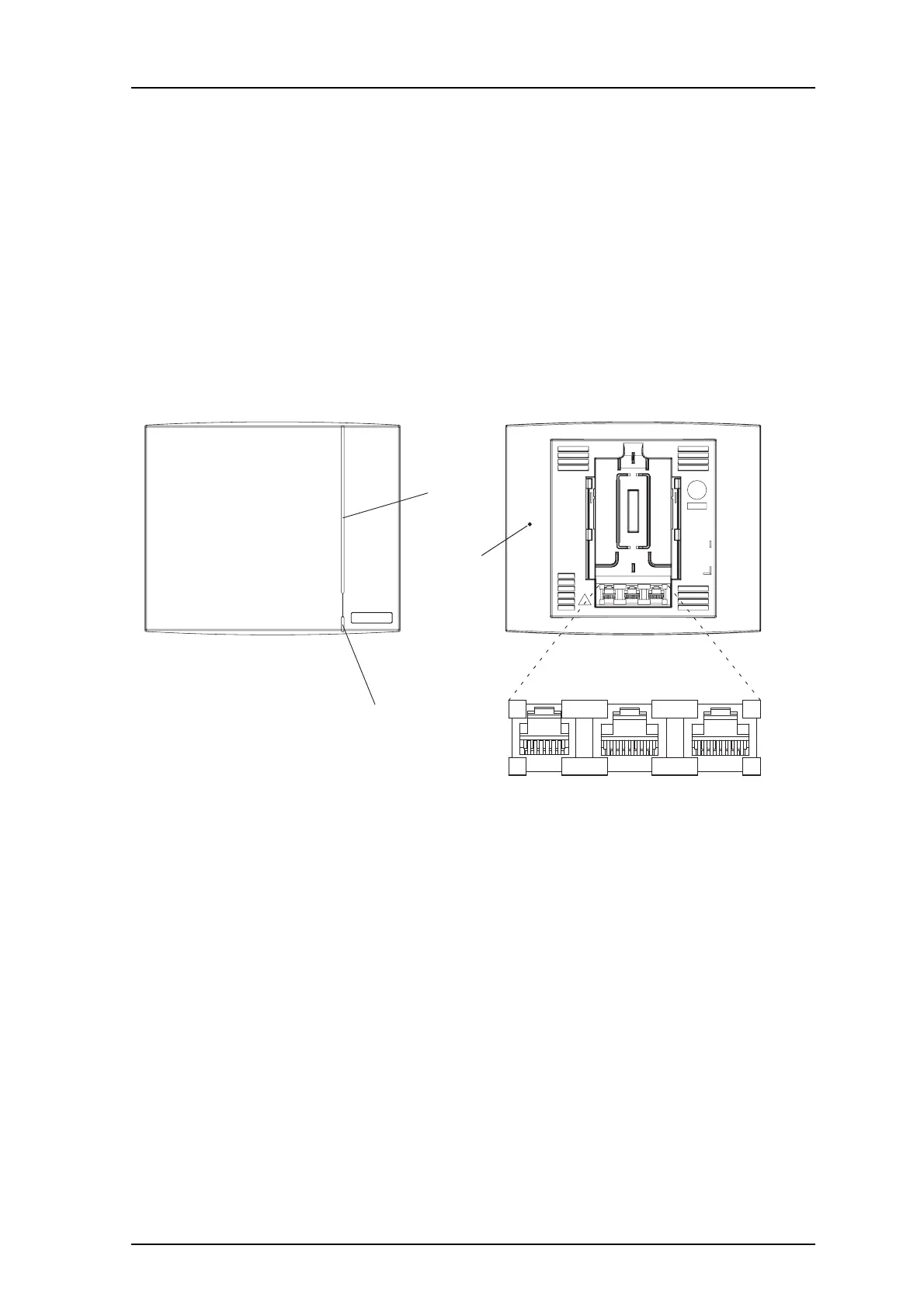

Figure 1.
Test
(RJ12)
LAN
(RJ45)
Power Supply
(RJ45)
Front viewBack view
LED1
LED2
005
Reset
Figure 1. IPBS Overview
Contents of the Box
The box in which the IPBS is packed contains:
• An IPBS with integrated antennas
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The IPBS can be powered using the following methods:
• Power over Ethernet, IEEE 802.3af
• A local AC-adapter
Note: For more information about power distribution, see 4.3 Power the Base Station on
page 19.
